How to change windscreen washer pump on Renault Master 2 van – replacement guide
downloads:
0
Views:
32
Important!
This replacement procedure can be used for:
RENAULT MASTER II Box (FD) 2.5 D, RENAULT MASTER II Box (FD) 2.8 dTI, RENAULT MASTER II Box (FD) 2.2 dCI, RENAULT MASTER II Box (FD) 1.9 dTI, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 1.9 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 3.0 dCi … View more
The steps may slightly vary depending on the car design.
RENAULT MASTER II Box (FD) 2.5 D, RENAULT MASTER II Box (FD) 2.8 dTI, RENAULT MASTER II Box (FD) 2.2 dCI, RENAULT MASTER II Box (FD) 1.9 dTI, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 1.9 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 3.0 dCi … View more
The steps may slightly vary depending on the car design.

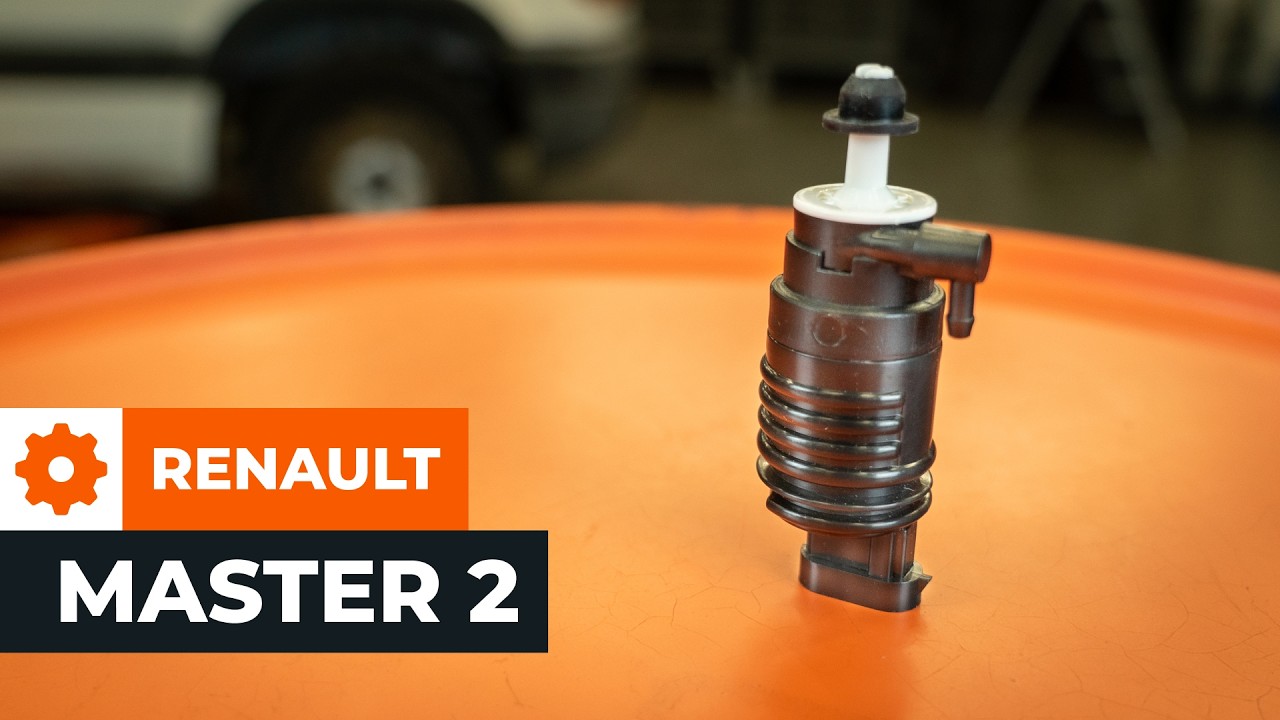

How to replace the windscreen washer pump on the RENAULT MASTER 2 Van [AUTODOC TUTORIAL]
All the parts you need to replace – Windshield Washer Pump for MASTER II Box (FD) and other RENAULT models
Alternative products
Water Pump, window cleaning
Wire brush
All-purpose cleaning spray
Electronic spray
Ceramic grease
Torque wrench
24 mm wheel impact socket
Ratchet wrench or power tool for removal/installation of threaded fasteners
Tommy bar
Flat screwdriver
A clip removal tool
Fluid drain pan
Car lift or jack with jack stands, and wheel chocks
Replacement: windscreen washer pump – Renault Master 2 van. Tip from AUTODOC experts:
- All the work should be carried out with the ignition switched off.
Replacement: windscreen washer pump – Renault Master 2 van. Take the following steps:
- Step 1
Secure the wheels with chocks. - Step 2
Loosen the wheel fasteners. Use a 24 mm wheel impact socket. Use a tommy bar. - Step 3
Raise the vehicle.Warning!If you are using a jack, make sure the car is parked on a hard, flat surface.Make sure to additionally secure the car with jack stands. - Step 4
Unscrew the wheel fasteners.Replacement: windscreen washer pump – Renault Master 2 van. Tip:To avoid injury, hold up the wheel when unscrewing the fasteners. - Step 5
Remove the wheel. - Step 6
Place the fluid drain pan under the windscreen washer pump. - Step 7
Detach the windscreen washer hose. Use a slotted screwdriver. - Step 8
Remove the windscreen washer pump. Use a clip removal tool. - Step 9
Remove the washer pump seal. - Step 10
Detach the connector from the windscreen washer pump. - Step 11
Treat the windscreen washer pump connector. Use an electronic spray. - Step 12
Attach the connector to the new windscreen washer pump. - Step 13
Install a new washer pump seal. - Step 14
Install a new windscreen washer pump.
