Important!
This replacement procedure can be used for:
CITROËN C2 Hatchback (JM) 1.4 HDi, CITROËN C2 Hatchback (JM) 1.4, CITROËN C2 Hatchback (JM) 1.6 HDi, CITROËN C2 Hatchback (JM) 1.4 16V, CITROËN C2 Hatchback (JM) 1.6 VTS, CITROËN C2 Hatchback (JM) 1.4 HDi, CITROËN C2 Hatchback (JM) 1.6, CITROËN C2 Hatchback (JM) 1.4, CITROËN C2 Hatchback (JM) 1.1 … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

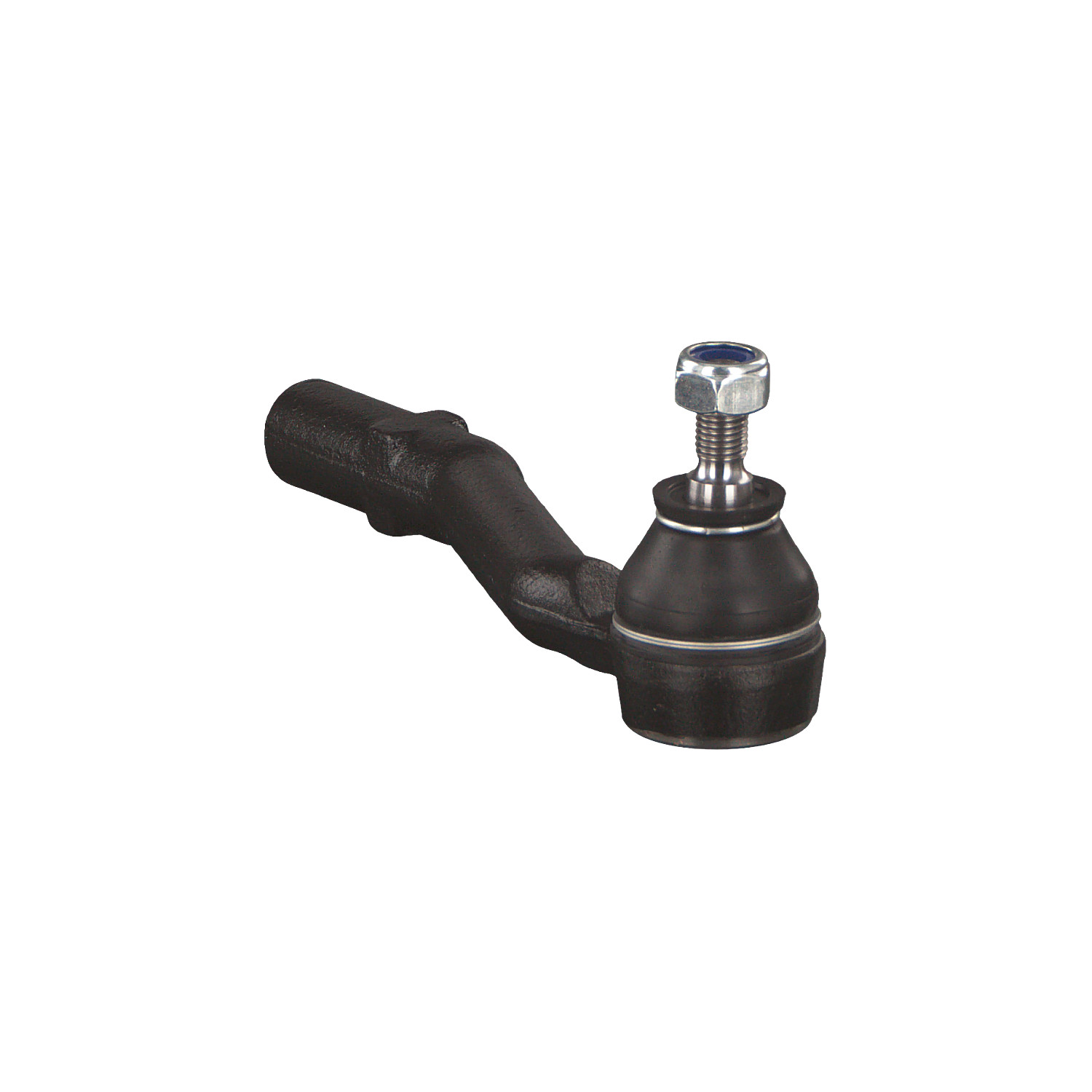

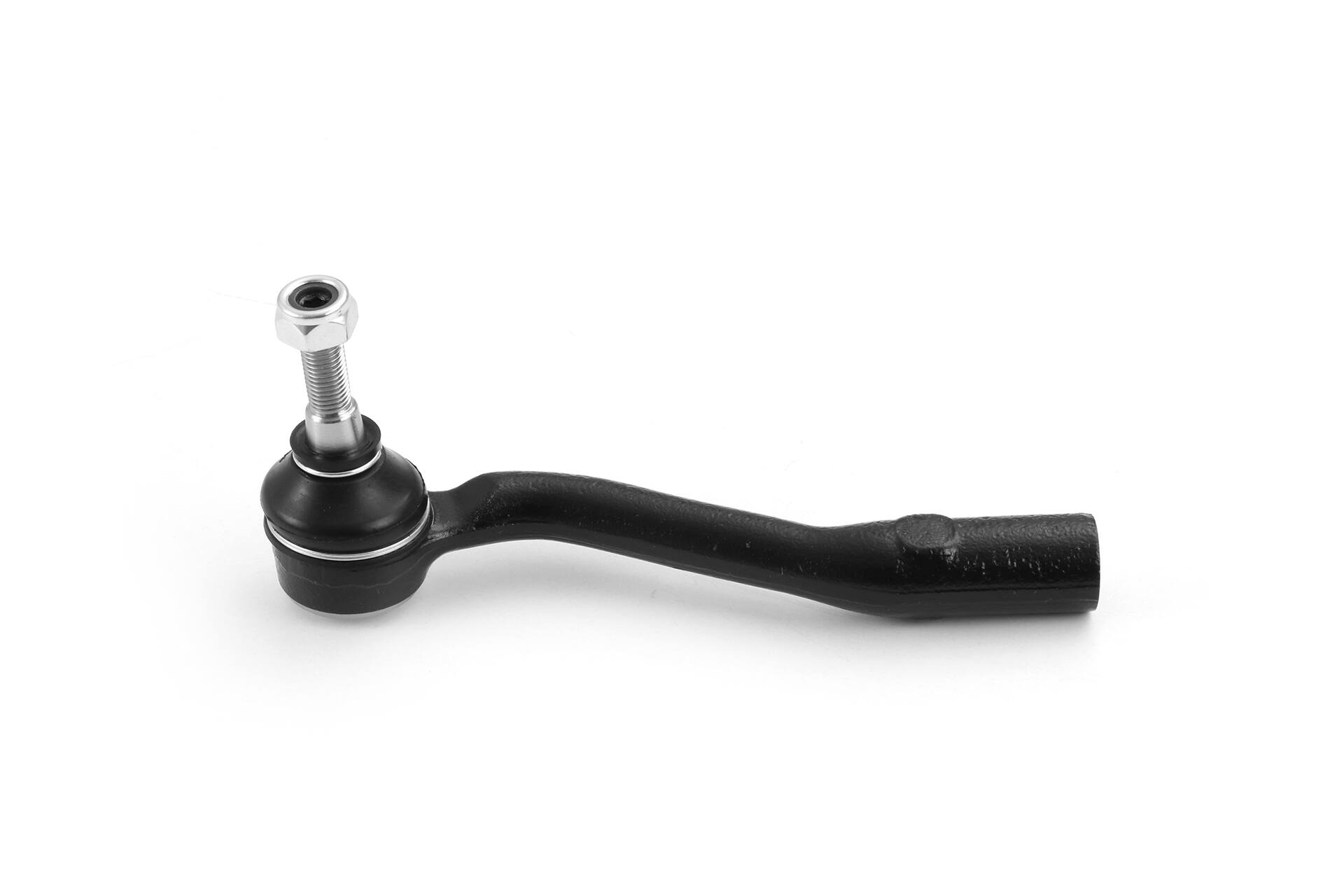

All the parts you need to replace – Track Rod End for C2 Hatchback (JM) and other CITROËN models
How to change Track rod end on Citroen C2 Mk1 1.4 HDi – step-by-step instructions for straightforward car repair Track rod end
How to change Track rod end on C2 Hatchback (JM) – tips for proper car maintenance
Track rod end for C2 Hatchback (JM) Petrol (60 hp)
Simple DIY car repair steps – Replacing Track rod end on C2 Hatchback (JM)
Track rod end for C2 Hatchback (JM) Petrol (73 hp)
Easy tricks to help you to replace Track rod end on C2 Hatchback (JM)
Track rod end for C2 Hatchback (JM) Petrol (109 hp)
Track rod end removal & installation, incredibly easy steps for C2 Hatchback (JM)
Track rod end for C2 Hatchback (JM) Diesel (68 hp)
Changing Track rod end on C2 Hatchback (JM) – tips for first time repair
Track rod end for C2 Hatchback (JM) Petrol (122 hp)
Main steps for Track rod end replacement on C2 Hatchback (JM)
Track rod end for C2 Hatchback (JM) Petrol (90 hp)
How to change Track rod end on C2 Hatchback (JM) – tips for proper car maintenance
Track rod end for C2 Hatchback (JM) Diesel (109 hp)
Simple DIY car repair steps – Replacing Track rod end on C2 Hatchback (JM)
Track rod end for C2 Hatchback (JM) Petrol (75 hp)
Easy tricks to help you to replace Track rod end on C2 Hatchback (JM)
Track rod end for C2 Hatchback (JM) Diesel (69 hp)
Tools
Replacement: track rod end – CITROËN C2 (JM_). List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #22
Drive socket # 17
Wheel impact socket #17
Ratchet wrench
Torque wrench
Tap wrench
Vernier caliper
Wheel chock
Buy tools
Replacement: track rod end – CITROËN C2 (JM_). Tip:
  • Replace tie rod ends in pairs.
  • The replacement procedure is identical for the right and left tie rod ends.
  • During the installation process, use only new bolts and nuts.
  • All work should be done with the engine stopped.
Replacement: track rod end – CITROËN C2 (JM_). Recommended sequence of steps:
  1. Step 1
    How to change Track Rod End on Citroen C2 Mk1 2003 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace CITROËN C2 Hatchback (JM) 1.4 HDi 2004 Track Rod End - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Raise the front of the car and secure on supports.
    Step 4
    Citroen C2 Mk1 1.1 2005 Track Rod End replacement: free workshop manuals
    Unscrew the wheel bolts.
    Replacement: track rod end – CITROËN C2 (JM_). AUTODOC recommends:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  4. Step 5
    Changing Track Rod End on CITROËN C2 Hatchback (JM) 1.6 VTS 2006 by yourself
    Remove the wheel.
  5. Step 6
    How to remove CITROËN C2 1.6 2007 Track Rod End - online easy-to-follow instructions
    Clean the fastener connecting the tie rod end to the steering knuckle. Use a wire brush. Use WD-40 spray.
  6. Step 7
    How to replace Track Rod End on CITROËN C2 Hatchback (JM) 2008: download PDF manuals and video instructions
    When deinstalling, mark or measure the precise position of the ball joint on the track rod, or count the number of turns in order to prevent misalignment afterward. Use a vernier caliper.
  7. Step 8
    How hard is it to do yourself: Track Rod End replacement on Citroen C2 Mk1 1.4 16V 2009 - download illustrated guide
    Unscrew the end fastening nut to the steering knuckle. Use a drive socket #17. Use a tap wrench.
  8. Step 9
    Need to know how to renew Track Rod End on CITROËN C2 2010? This free workshop manual will help you to do it yourself
    Loosen the lock nut securing the tie rod end to the tie rod. Use a combination spanner #22.
  9. Step 10
    Changing of Track Rod End on Citroen C2 Mk1 2011 won't be an issue if you follow this illustrated step-by-step guide
    Disconnect the tie rod end from the steering knuckle.
  10. Step 11
    CITROËN C2 1.1 Track Rod End replacement: online guides and video tutorials
    Screw the end out of the tie rod.
  11. Step 12
    Replacing Track Rod End on Citroen C2 Mk1 2013 1.4 HDi by yourself
    Clean the mounting seats of the tie rod end. Use a wire brush. Use WD-40 spray.
  12. Step 13
    C2 Hatchback (JM) 1.6 2014 Track Rod End DIY replacement workshop manual
    Screw on a new tie rod end.
    Replacement: track rod end – CITROËN C2 (JM_). AUTODOC experts recommend:
    While installing the steering rod end remember to make the same number of turns or to leave the same length of thread showing as per your measurements.
  13. Step 14
    How to change Track Rod End on CITROËN C2 Hatchback (JM) 2015 - tips and tricks
    Treat the threaded part of the tie rod. Use copper grease.
  14. Step 15
    Step-by-step recommendations for DIY replacement Citroen C2 Mk1 2016 1.6 Track Rod End
    Connect the tie rod end to the steering knuckle.
  15. Step 16
    DIY replacement of Track Rod End on CITROËN C2 Hatchback (JM) 1.4 2017 is not an issue anymore with our step-by-step tutorial
    Screw on the fastening nut that connects the tie rod end to the steering knuckle. Use a drive socket #17. Use a ratchet wrench.
