How to carry out replacement: Engine Mount 2.5 dCi Renault Master 2 Van
Disclaimer
Change Renault Master 2 Van 2.8 dTI Engine Mount yourself – manuals and video tutorials

How to change right engine mounts on Renault Master 2 van – replacement guide

downloads: 1
Views: 18
Download your free tutorial and fix RENAULT MASTER II Box (FD) 2.2 dCI problems yourself Download for free 1.85 MB Engine Mount for Renault Master 2 Van Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
RENAULT MASTER II Box (FD) 2.2 dCI, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi … View more

The steps may slightly vary depending on the car design.

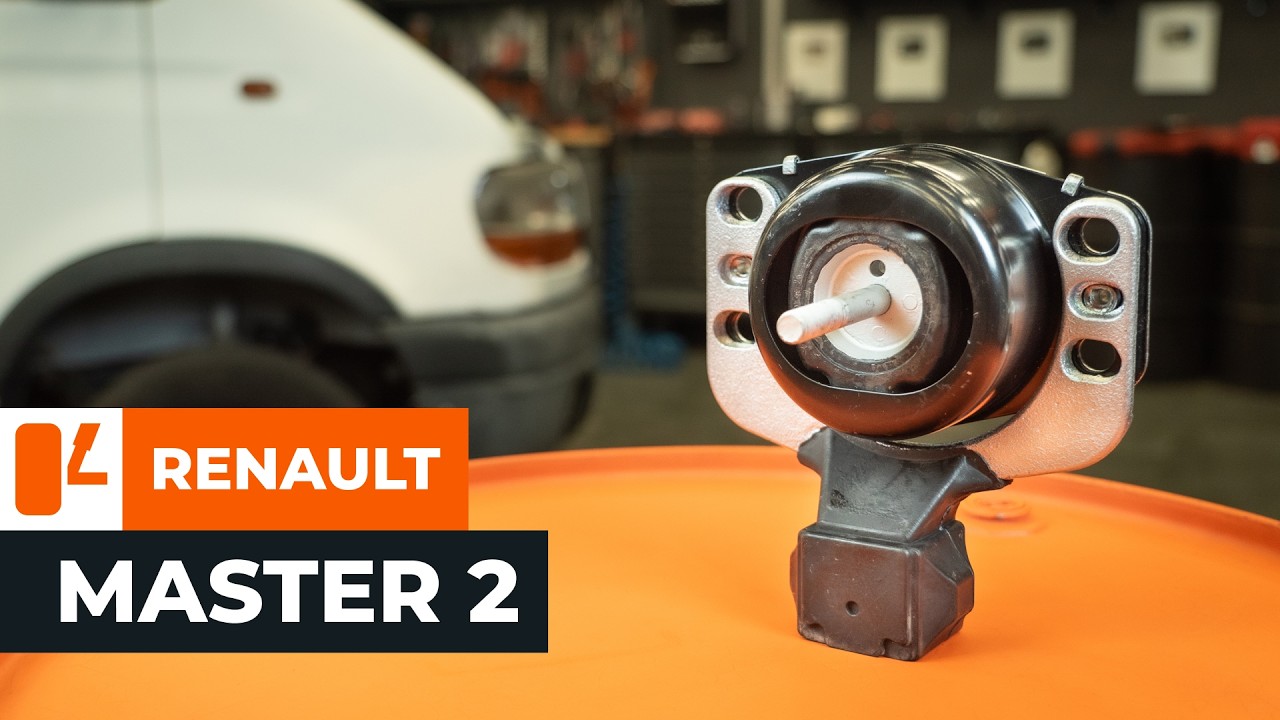

How to replace the right engine mount on the RENAULT MASTER 2 Van [AUTODOC TUTORIAL]

video
Published on: 01/06/2024
2K views
All the parts you need to replace – Engine Mount for MASTER II Box (FD) and other RENAULT models
Alternative products
How to change Engine mount on Renault Master 2 Van 2.5 dCi – step-by-step instructions for straightforward car repair Engine mount
Tools
Replacement: engine mounts – Renault Master 2 van. Tools you'll need:
Wire brush
WD-40 spray
All-purpose cleaning spray
Torque wrench
16 mm socket
18 mm socket
Ratchet wrench or power tool for removal/installation of threaded fasteners
U-joint socket extension
Transmission jack or a second vehicle jack
Fender cover
Buy tools
Replacement: engine mounts – Renault Master 2 van. AUTODOC recommends:
  • All the work should be carried out with the engine switched off.
Replacement: engine mounts – Renault Master 2 van. Use the following procedure:
  1. Step 1
    How to change Engine Mount on Renault Master 2 Van 1998 - free PDF and video manuals
    Open the bonnet.
  2. Step 2
    How to replace RENAULT MASTER II Box (FD) 2.5 dCi 1999 Engine Mount - step-by-step manuals and video guides
    Use a fender protection cover to avoid damaging the paintwork and plastic parts of the car.
  3. Step 3
    Renault Master 2 Van 2.2 dCI 2000 Engine Mount replacement: free workshop manuals
    Disconnect the pipe from the engine mount bracket.
  4. Step 4
    Changing Engine Mount on RENAULT MASTER II Box (FD) 2.5 D 2001 by yourself
    Support the engine in the area of the oil pan. Use a jack.
    Replacement: engine mounts – Renault Master 2 van. Tip:
    Place a wide wooden block between the jack and engine to prevent the oil pan from being damaged.
  5. Step 5
    How to remove RENAULT MASTER 3.0 dCi 2002 Engine Mount - online easy-to-follow instructions
    Clean the engine mount bracket fasteners. Use a wire brush. Use WD-40 spray.
  6. Step 6
    How to replace Engine Mount on RENAULT MASTER II Box (FD) 2003: download PDF manuals and video instructions
    Unscrew the engine mount bracket fasteners. Use a 16 mm socket. Use a U-joint socket extension. Use a ratchet wrench.
  7. Step 7
    How hard is it to do yourself: Engine Mount replacement on Renault Master 2 Van 2.5 dCi 2004 - download illustrated guide
    Remove the fastening bolts.
  8. Step 8
    Need to know how to renew Engine Mount on RENAULT MASTER 2005? This free workshop manual will help you to do it yourself
    Remove the engine mount bracket.
  9. Step 9
    Changing of Engine Mount on Renault Master 2 Van 2006 won't be an issue if you follow this illustrated step-by-step guide
    Clean the engine mount fasteners. Use a wire brush. Use WD-40 spray.
  10. Step 10
    RENAULT MASTER 2.8 dTI Engine Mount replacement: online guides and video tutorials
    Unscrew the engine mount fasteners from the car body. Use an 18 mm socket. Use a U-joint socket extension. Use a ratchet wrench.
  11. Step 11
    Replacing Engine Mount on Renault Master 2 Van 2008 2.5 dCi by yourself
    Remove the fastening bolts.
  12. Step 12
    MASTER II Box (FD) 3.0 dCi 2009 Engine Mount DIY replacement workshop manual
    Remove the engine mount.
    Replacement: engine mounts – Renault Master 2 van. Tip from AUTODOC:
    Carefully inspect the other engine mounts and replace them if necessary.
  13. Step 13
    How to change Engine Mount on RENAULT MASTER II Box (FD) 2010 - tips and tricks
    Clean the mounting seats of the engine mount. Use a wire brush. Use an all-purpose cleaning spray.
