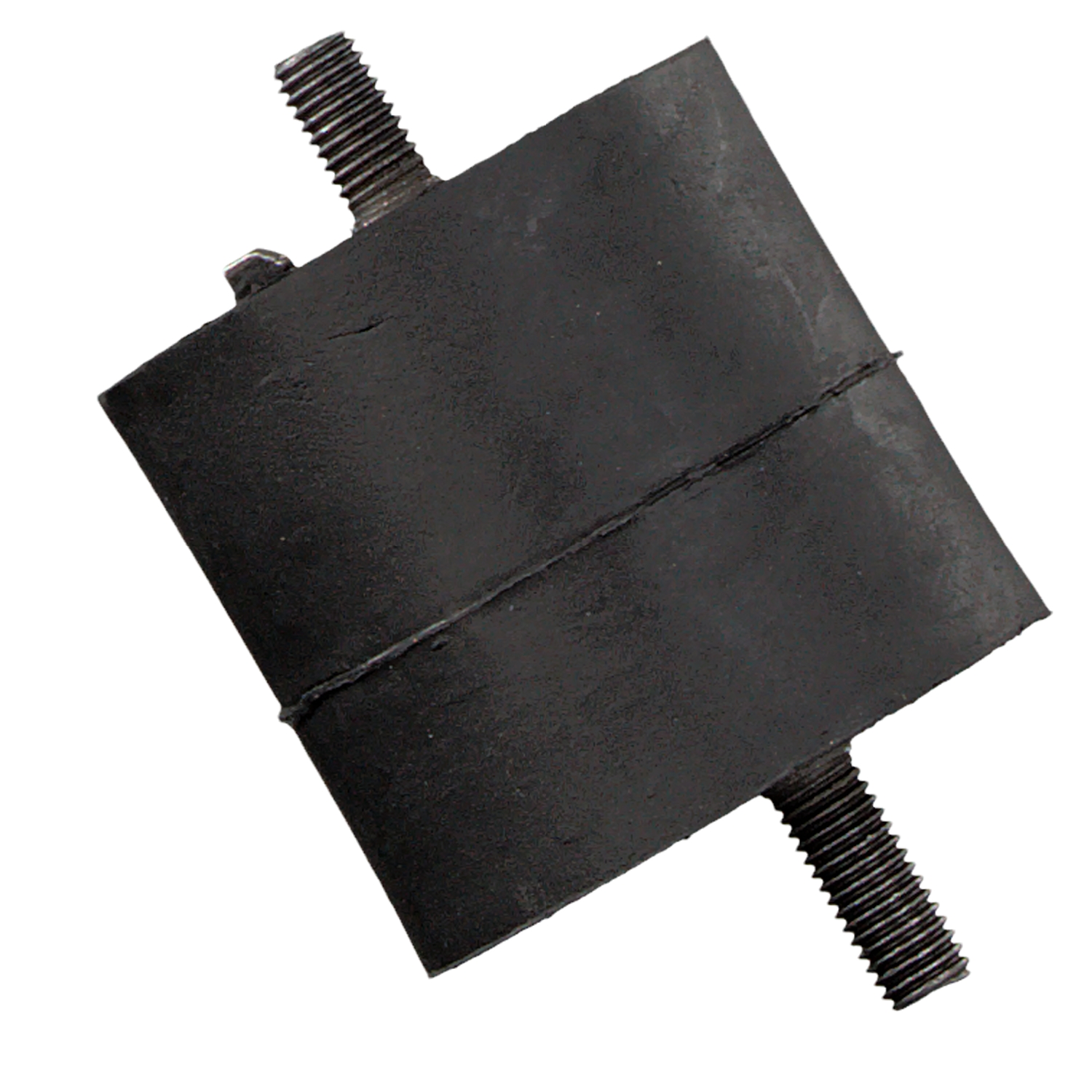

All the parts you need to replace – Engine Mount for 5 Saloon (E34) and other BMW models
Alternative products
How to change Engine mount on BMW E34 525i 24V – step-by-step instructions for straightforward car repair Engine mount
Tools
Replacement: engine mounts – BMW 5 (E34). Tools you need:
Wire brush
WD-40 spray
Copper grease
HEX bit No.H5.
Drive socket # 16
Wheel impact socket #17
Ratchet wrench
Torque wrench
Crow bar
Fender cover
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: engine mounts – BMW 5 (E34). AUTODOC experts recommend:
  • All work should be done with the engine stopped.
Carry out replacement in the following order:
  1. Step 1
    Open the bonnet.
    Step 2
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
    Step 3
    How to change Engine Mount on BMW E34 1987 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 4
    How to replace BMW 5 Saloon (E34) 525i 24V 1988 Engine Mount - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 5
    Lift the car using a jack or place it over an inspection pit.
    Step 6
    BMW E34 520i 24V 1989 Engine Mount replacement: free workshop manuals
    Unscrew the wheel bolts.
    Replacement: engine mounts – BMW 5 (E34). AUTODOC recommends:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  4. Step 7
    Changing Engine Mount on BMW 5 Saloon (E34) 535i 1990 by yourself
    Remove the wheel.
  5. Step 8
    How to remove BMW 5 SERIES 525i 1991 Engine Mount - online easy-to-follow instructions
    Detach the vacuum hose from the engine mount.
  6. Step 9
    How to replace Engine Mount on BMW 5 Saloon (E34) 1992: download PDF manuals and video instructions
    Treat the lower fastener of the engine mount. Use WD-40 spray.
  7. Step 10
    How hard is it to do yourself: Engine Mount replacement on BMW E34 540i V8 1993 - download illustrated guide
    Unscrew the lower fastener of the engine mount. Use a drive socket #16.
  8. Step 11
    Need to know how to renew Engine Mount on BMW 5 SERIES 1994? This free workshop manual will help you to do it yourself
    Loosen the air intake fastening. Use HEX No.H5. Use a ratchet wrench.
  9. Step 12
    Changing of Engine Mount on BMW E34 1995 won't be an issue if you follow this illustrated step-by-step guide
    Detach the air duct housing from the air filter housing.
  10. Step 13
    BMW 5 SERIES 518i Engine Mount replacement: online guides and video tutorials
    Unscrew the upper fastener of the engine mount. Use a drive socket #16. Use a ratchet wrench.
  11. Step 14
    Replacing Engine Mount on BMW E34 1988 525i 24V by yourself
    Support the engine in the oil pan area. Use a hydraulic transmission jack.
    Replacement: engine mounts – BMW 5 (E34). Tip:
    Make sure that the engine is supported.
  12. Step 15
    5 Saloon (E34) 525i 1989 Engine Mount DIY replacement workshop manual
    Remove the engine mount. Use a crowbar.
    Replacement: engine mounts – BMW 5 (E34). AUTODOC experts recommend:
    Carefully check the other engine mounts and replace them if necessary.
  13. Step 16
    How to change Engine Mount on BMW 5 Saloon (E34) 1990 - tips and tricks
    Install the engine mount to its mounting seat. Use a crowbar.
  14. Step 17
    Step-by-step recommendations for DIY replacement BMW E34 1991 525i Engine Mount
    Remove the support from under the engine.
    AUTODOC recommends:
    Replacement: engine mounts – BMW 5 (E34). Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
