How to change rear brake pads on BMW 5 Saloon (E34) – replacement guide
BMW 5 Saloon (E34) 520i, BMW 5 Saloon (E34) 520i 24V, BMW 5 Saloon (E34) 524td, BMW 5 Saloon (E34) 525i, BMW 5 Saloon (E34) 525i 24V, BMW 5 Saloon (E34) 525ix 24V, BMW 5 Saloon (E34) 525tds, BMW 5 Saloon (E34) 530i, BMW 5 Saloon (E34) 530i V8, BMW 5 Saloon (E34) 535i, BMW 5 Saloon (E34) M5, BMW 5 Saloon (E34) M5 Cat, BMW 5 Saloon (E34) M5, BMW 5 Saloon (E34) 540i V8, BMW 5 Saloon (E34) 518i, BMW 5 Saloon (E34) 518i, BMW 5 Saloon (E34) 525td, BMW 5 Saloon (E34) M5, BMW 5 Saloon (E34) 530 i … View more
The steps may slightly vary depending on the car design.
This video shows the replacement procedure of a similar car part on another vehicle

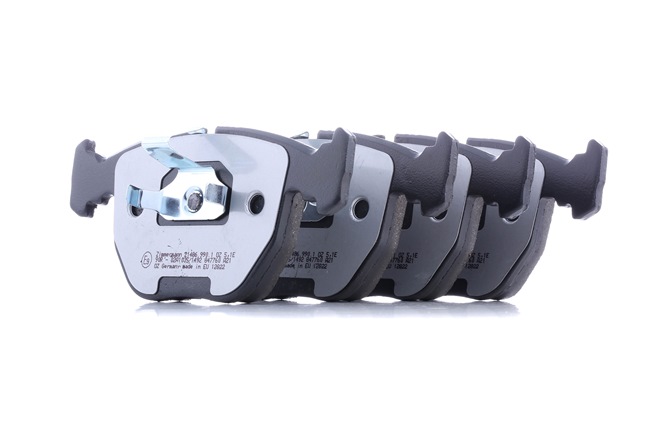

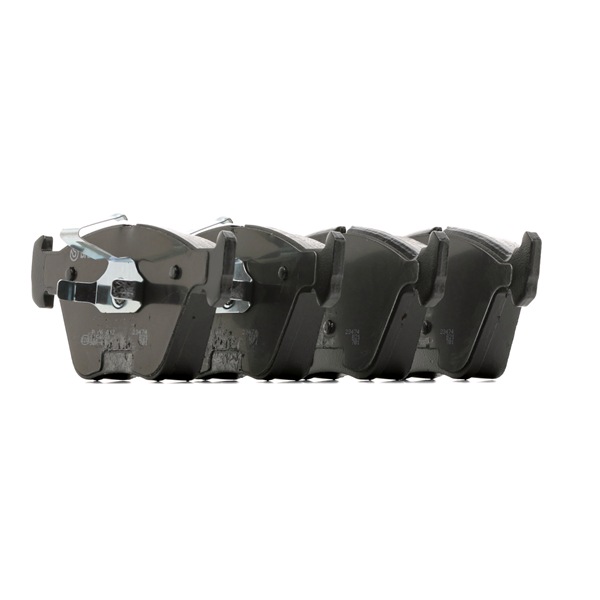

Brake pad set
- Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
- The replacement procedure is identical for all brake pads on the same axle.
- All work should be done with the engine stopped.
- Step 1
Open the bonnet. Unscrew the brake fluid reservoir cap.
Step 2
Secure the wheels with chocks.
- Step 3
Loosen the wheel mounting bolts. Use wheel impact socket #17.
- Step 4
Raise the rear of the car and secure on supports.
Step 5
Unscrew the wheel bolts.
AUTODOC recommends:Important! Hold the wheel while unscrewing the fastening bolts. BMW 5 (E34)
- Step 6
Remove the wheel.
- Step 7
Spread the brake pads. Use a crowbar.
- Step 8
Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
- Step 9
Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench.
- Step 10
Detach the brake caliper retaining spring. Use a crowbar.
- Step 11
Remove the brake caliper.
Replacement: brake pads – BMW 5 (E34). Professionals recommend:Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
- Step 12
Remove the brake pads. Use a crowbar.
- Step 13
Disconnect the brake pads wear sensor. Use a crowbar.
Please note!Some cars are not equipped with the brake pad wear sensor.
- Step 14
Treat the brake caliper piston. Use a brake cleaner.
AUTODOC recommends:Replacement: brake pads – BMW 5 (E34). After applying the spray, wait a few minutes.
- Step 15
Press in the brake caliper piston. Use brake caliper wind back tool.
- Step 16
Treat the back side of the new brake pads. Use anti-squeal paste.
AUTODOC recommends:Make sure the disc surface is clean before installing the pads.
