Important!

This replacement procedure can be used for:
RENAULT MASTER II Box (FD) 2.5 D, RENAULT MASTER II Box (FD) 2.8 dTI, RENAULT MASTER II Box (FD) 2.2 dCI, RENAULT MASTER II Box (FD) 1.9 dTI, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 1.9 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 3.0 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi, RENAULT MASTER II Box (FD) 2.5 dCi … View more

The steps may slightly vary depending on the car design.

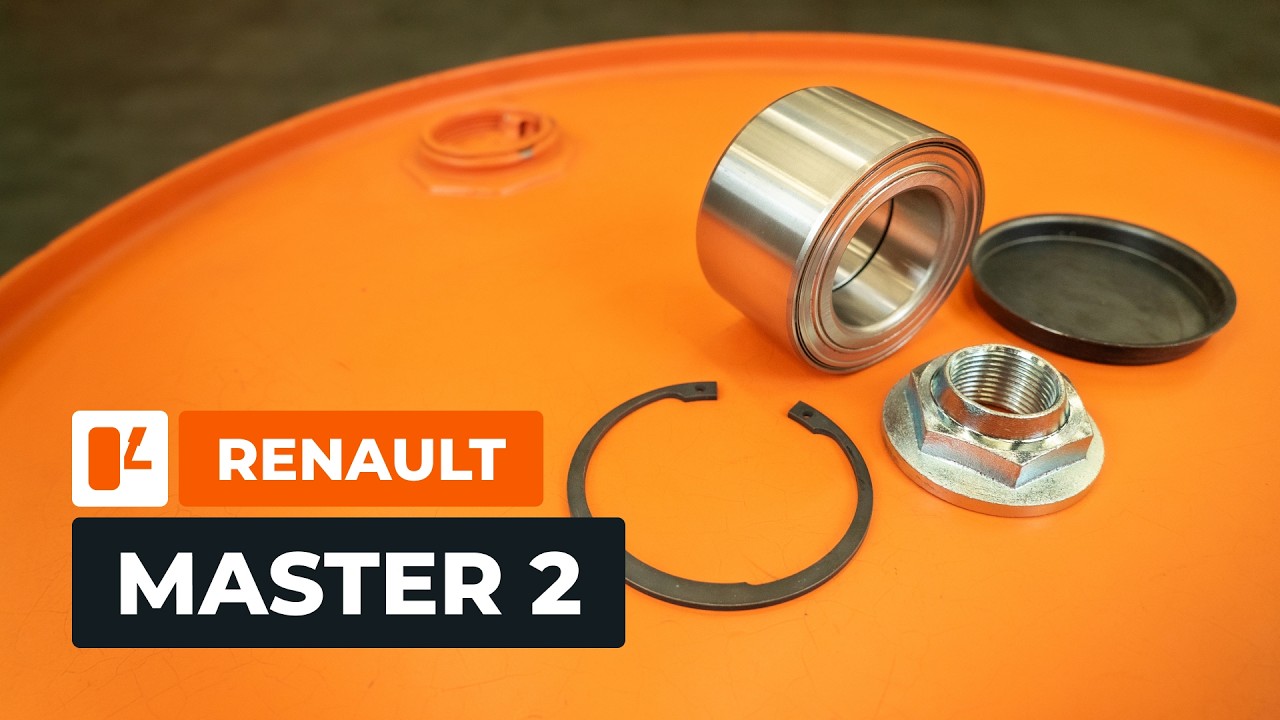

How to change the rear wheel bearings on the RENAULT MASTER 2 Van [AUTODOC TUTORIAL]

Alternative products

Wheel bearing kit

Replacement: wheel bearing – Renault Master 2 van. Tools you'll need:

                      Wire brush

                      Nylon brush

                      WD-40 spray

                      All-purpose cleaning spray

                      Brake cleaner

                      Ceramic grease

                      Torque wrench

                      19 mm combination spanner

                      13 mm socket

                      18 mm socket

                      46 mm socket

                      T40 Torx bit

                      24 mm wheel impact socket

                      Ratchet wrench or power tool for removal/installation of threaded fasteners

                      Ratchet screwdriver

                      Tommy bar

                      Mounting lever

                      Hammer

                      Circlip pliers

                      Bush and bearing driver set

                      Hydraulic press

                      Brake caliper wind back tool

                      Car lift or jack with jack stands, and wheel chocks

Buy tools

Replacement: wheel bearing – Renault Master 2 van. AUTODOC recommends:

Do not re-use the bearing assembly you removed from your Renault Master 2 Kasten car.
The wheel bearing replacement procedure is identical for both wheels on the same axle.
All the work should be carried out with the engine switched off.

Replacement: wheel bearing – Renault Master 2 van. Take the following steps:

Step 1

Open the bonnet.
Step 2

Loosen the brake fluid reservoir cap.
Step 3

If you are going to use a jack, secure the wheels with chocks.
Step 4

Loosen the wheel fasteners. Use a 24 mm wheel impact socket. Use a tommy bar.
Step 5

Raise the car.

Warning!
If you are using a jack, make sure the car is parked on a hard, flat surface.Make sure to additionally secure the car with jack stands.
Step 6

Unscrew the wheel fasteners.

Replacement: wheel bearing – Renault Master 2 van. Tip:
To avoid injury, hold up the wheel when unscrewing the fasteners.
Step 7

Remove the wheel.
Step 8

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 9

Unscrew the brake caliper fasteners. Use a 19 mm combination spanner. Use a 13 mm socket. Use a ratchet wrench.
Step 10

Remove the fastening bolts.
Step 11

Remove the brake caliper. Use a mounting lever.

Replacement: wheel bearing – Renault Master 2 van. AUTODOC experts recommend:
Tie the caliper to the suspension or to the body with a wire without disconnecting it from the brake hose to avoid opening the brake line.Make sure that the brake caliper is not hanging from the brake hose.Do not press the brake pedal after the caliper has been removed. This may cause the piston to fall out of the caliper bore resulting in the brake fluid leakage and air entering the system.
Step 12

Remove the brake pads. Use a mounting lever.
Step 13

Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
Step 14

Unscrew the brake caliper bracket fasteners. Use an 18 mm socket. Use a ratchet wrench.
Step 15

Remove the fastening bolts.
Step 16

Remove the brake caliper bracket.
Step 17

Clean the brake disc screw. Use a wire brush. Use WD-40 spray.
Step 18

Unscrew the brake disc screw. Use a T40 Torx bit. Use a ratchet screwdriver.
Step 19

Remove the screw.
Step 20

Remove the brake disc.
Step 21

Remove the wheel bearing dust cap. Use a mounting lever. Use a hammer.
Step 22

Loosen the wheel hub fastener. Use a 46 mm socket. Use a tommy bar.
Step 23

Unscrew the fastening nut.
Step 24

Remove the wheel hub together with the wheel bearing.
Step 25

Clean the axle of the wheel hub. Use a wire brush. Use an all-purpose cleaning spray.
Step 26

Clean the circlip of the wheel hub bearing. Use a wire brush. Use an all-purpose cleaning spray.
Step 27

Remove the circlip of the wheel hub bearing. Use circlip pliers.
Step 28

Press the hub out of the bearing. Use a bush and bearing driver set and a hydraulic press.
Step 29

Clean the wheel bearing mounting seat. Use a wire brush. Use an all-purpose cleaning spray.
Step 30

Press the new bearing on the hub. Use a hydraulic press and a bush and bearing driver set.

Replacement: wheel bearing – Renault Master 2 van. Professionals recommend:
When pressing the wheel bearing on, check to make sure it is positioned correctly. Avoid any misalignment.When pressing the wheel bearing on, make sure to press only the outer race of the bearing.
Step 31

Install the circlip of the wheel bearing. Use circlip pliers.
Step 32

Install the hub with the new bearing.
Step 33

Install the fastening nut.
Step 34

Tighten the fastener of the hub. Use a 46 mm socket. Use a torque wrench. Tightening torque: 220 N·m.
Step 35

Install the new wheel bearing dust cap. Use a hammer.
Step 36

Clean the mounting seat of the brake disc. Use a wire brush. Use an all-purpose cleaning spray.
Step 37

Treat the mating surface. Use ceramic grease.
Step 38

Install the brake disc.
Step 39

Install the brake disc screw.
Step 40

Tighten the brake disc screw. Use a T40 Torx bit. Use a torque wrench. Tightening torque: 14 N·m.
Step 41

Clean the brake caliper bracket and check its condition. Use a wire brush. Use a brake cleaner.

Replacement: wheel bearing – Renault Master 2 van. Tip:
Check the brake caliper guide pins and boots. Clean them. Replace them if necessary.
Step 42

Install the brake caliper bracket.
Step 43

Install the fastening bolts.
Step 44

Tighten the fasteners of the brake caliper bracket. Use an 18 mm socket. Use a torque wrench. Tightening torque: 110 N·m.
Step 45

Treat the brake caliper piston. Use a nylon brush. Use a brake cleaner.
Step 46

Retract the brake caliper piston. Use a brake caliper wind back tool.
Step 47

Install the brake pads.
Step 48

Install the brake caliper.
Step 49

Install the fastening bolts.
Step 50

Tighten the brake caliper fasteners. Use a 19 mm combination spanner. Use a 13 mm socket. Use a torque wrench. Tightening torque: 30 N·m.
Step 51

Clean the wheel rim mounting seat. Use a wire brush. Use an all-purpose cleaning spray.
Step 52

Treat the brake disc surface that contacts the wheel rim. Use ceramic grease.
Step 53

Install the wheel.

Caution!
To avoid injury, hold up the wheel when screwing in the fasteners.
Step 54

Screw in the wheel fasteners. Use a 24 mm wheel impact socket. Use a ratchet wrench.
Step 55

Lower the car and tighten the wheel fasteners in a criss-cross pattern. Use a 24 mm wheel impact socket. Use a torque wrench. Tightening torque: 172 N·m.
Step 56

Remove the jack and wheel chocks.

Step 57

Without starting the engine, press the brake pedal several times until you feel significant resistance.
Step 58

Check the brake fluid level in the reservoir and top up if necessary.
Step 59

Tighten the brake fluid reservoir cap.
Step 60

Close the bonnet.
