How to carry out replacement: Shock Absorber 1.6 TDI Touran 1t3
Disclaimer
Change Touran 1t3 1.4 TSI EcoFuel Shock Absorber yourself – manuals and video tutorials

How to change rear shock absorbers on VW Touran 1T3 – replacement guide

downloads: 8
Views: 151
Download your free tutorial and fix VW TOURAN (1T3) 1.4 TSI problems yourself Download for free 2.95 MB Shock Absorber for Touran 1t3 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
VW TOURAN (1T3) 1.2 TSI, VW TOURAN (1T3) 2.0 TDI, VW TOURAN (1T3) 1.6 TDI, VW TOURAN (1T3) 2.0 TDI, VW TOURAN (1T3) 2.0 TDI, VW TOURAN (1T3) 1.6 TDI, VW TOURAN (1T3) 1.4 TSI, VW TOURAN (1T3) 1.4 TSI EcoFuel, VW TOURAN (1T3) 2.0 TDI, VW TOURAN (1T3) 1.4 TSI … View more

The steps may slightly vary depending on the car design.

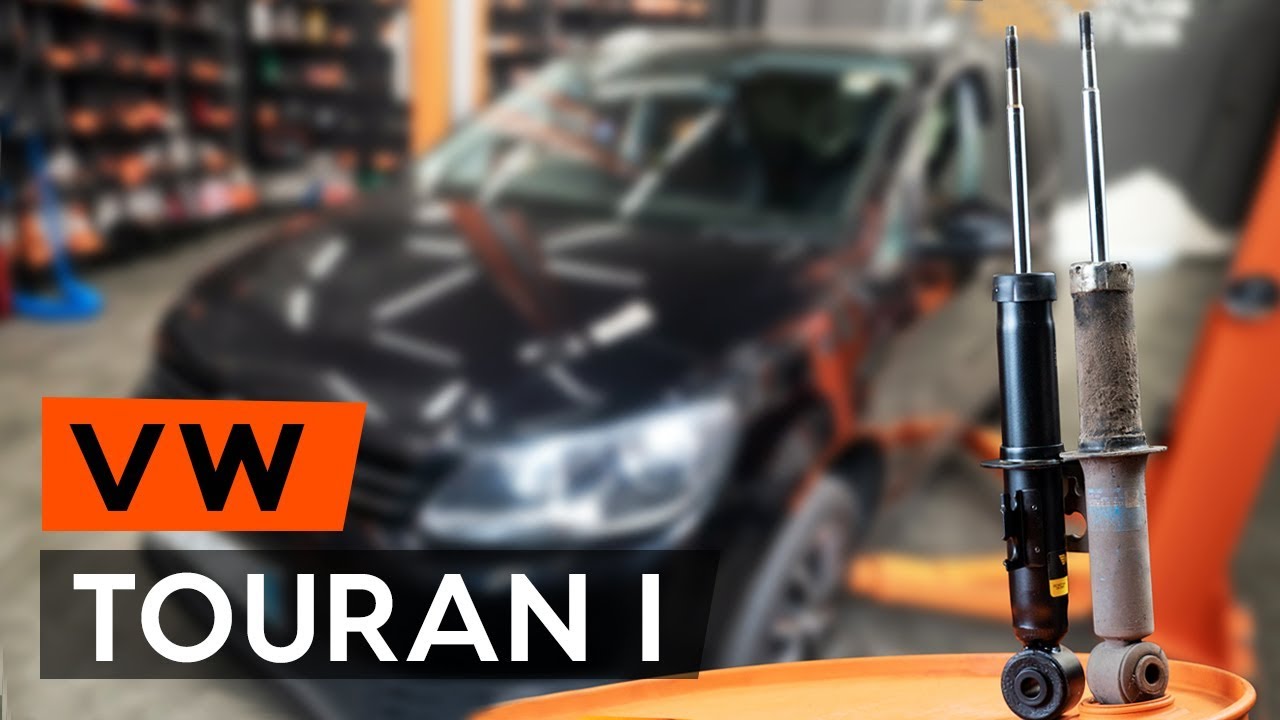

How to change rear shock absorber on VW TOURAN 1t3 [TUTORIAL AUTODOC]

video
Published on: 21/12/2018
20K views
All the parts you need to replace – Shock Absorber for TOURAN (1T3) and other VW models
Alternative products
How to change Shock absorber on Touran 1t3 1.6 TDI – step-by-step instructions for straightforward car repair Shock absorber
SKSA-0132710 STARK Shock absorber
14,07 GBP
Shop
SKSA-0132308 STARK Shock absorber
14,35 GBP
Shop
SKSA-0130085 STARK Shock absorber
20,73 GBP
Shop
854S0086 RIDEX Shock absorber
20,73 GBP
Shop
SKSA-0132641 STARK Shock absorber
20,73 GBP
Shop
MA-00498 ASHIKA Shock absorber
29,23 GBP
Shop
63472115 NK Shock absorber
35,39 GBP
Shop
SKSA-0131929 STARK Shock absorber
36,63 GBP
Shop
SKSA-0132663 STARK Shock absorber
38,84 GBP
Shop
63472194 NK Shock absorber
39,27 GBP
Shop
Tools
Replacement: shock absorbers – VW Touran 1T3. Tools you might need:
Wire brush
WD-40 spray
Combination spanner #16
Combination spanner #21
Drive socket # 16
Drive socket # 21
Hydraulic transmission jack
Copper grease
Adjustable wrench
Torque wrench
Wheel impact socket #17
Wheel chock
Buy tools
Replacement: shock absorbers – VW Touran 1T3. Tip from AUTODOC:
  • Both shock absorbers of the rear suspension should be replaced simultaneously.
  • The replacement procedure is identical for the left and right shock absorbers of the rear suspension.
  • All work should be done with the engine stopped.
Carry out replacement in the following order:
  1. Step 1
    How to change Shock Absorber on Touran 1t3 2010 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VW TOURAN (1T3) 1.6 TDI 2011 Shock Absorber - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Touran 1t3 2.0 TDI 2012 Shock Absorber replacement: free workshop manuals
    Raise the rear of the car and secure on supports.
  4. Step 4
    Changing Shock Absorber on VW TOURAN (1T3) 1.4 TSI EcoFuel 2013 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. VW Touran 1T3
  5. Step 5
    How to remove VW TOURAN 1.2 TSI 2014 Shock Absorber - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Shock Absorber on VW TOURAN (1T3) 2015: download PDF manuals and video instructions
    Support the arm. Use a hydraulic transmission jack.
  7. Step 7
    How hard is it to do yourself: Shock Absorber replacement on Touran 1t3 2.0 TDI 2010 - download illustrated guide
    Clean the fasteners of the shock absorber upper mount. Use a wire brush. Use WD-40 spray.
  8. Step 8
    Need to know how to renew Shock Absorber on VW TOURAN 2011? This free workshop manual will help you to do it yourself
    Unscrew the shock absorber mount fastening. Use a drive socket #16.
  9. Step 9
    Changing of Shock Absorber on Touran 1t3 2012 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the lower fastener of the shock absorber. Use a combination spanner #21.
    Replacement: shock absorbers – VW Touran 1T3. AUTODOC recommends:
    To avoid injuries, hold the shock absorber when undoing the fastening bolts.
  10. Step 10
    VW TOURAN 1.4 TSI EcoFuel Shock Absorber replacement: online guides and video tutorials
    Remove the support from under the rear arm.
  11. Step 11
    Replacing Shock Absorber on Touran 1t3 2014 1.6 TDI by yourself
    Remove the shock absorber.
  12. Step 12
    TOURAN (1T3) 1.2 TSI 2015 Shock Absorber DIY replacement workshop manual
    Remove the protective cap of the shock absorber mount.
  13. Step 13
    How to change Shock Absorber on VW TOURAN (1T3) 2010 - tips and tricks
    Remove the shock absorber piston rod fastening. Use a combination spanner #16. Use an adjustable wrench.
  14. Step 14
    Step-by-step recommendations for DIY replacement Touran 1t3 2011 1.2 TSI Shock Absorber
    Remove the shock absorber mount, boot and bump stop.
    AUTODOC recommends:
    Before installing a new shock absorber you should pump it manually 3-5 times.Replacement: shock absorbers – VW Touran 1T3. Carefully inspect the mount, the boot, and the bump stop of the shock absorber. Replace if necessary.
  15. Step 15
    DIY replacement of Shock Absorber on VW TOURAN (1T3) 1.4 TSI 2012 is not an issue anymore with our step-by-step tutorial
    Install the boot and a bump stop onto the shock absorber.
  16. Step 16
    How to change Shock Absorber on Touran 1t3 2010 - free PDF and video manuals
    Install the shock absorber upper mount.
  17. Step 17
    How to replace VW TOURAN (1T3) 1.6 TDI 2011 Shock Absorber - step-by-step manuals and video guides
    Screw the shock strut piston rod upper fastening. Use a combination spanner #16. Use an adjustable wrench. Use a torque wrench. Tighten it to 25 Nm torque.
