Change Touran 1t3 1.4 TSI EcoFuel Springs yourself – manuals and video tutorials

How to change rear coil springs on VW Touran 1T3 – replacement guide

downloads: 6
Views: 74
Download your free tutorial and fix VW TOURAN (1T3) 1.4 TSI problems yourself Download for free 2.29 MB Springs for Touran 1t3 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
VW TOURAN (1T3) 1.2 TSI, VW TOURAN (1T3) 2.0 TDI, VW TOURAN (1T3) 1.6 TDI, VW TOURAN (1T3) 2.0 TDI, VW TOURAN (1T3) 2.0 TDI, VW TOURAN (1T3) 1.4 TSI, VW TOURAN (1T3) 2.0 TDI … View more

The steps may slightly vary depending on the car design.

How to change rear springs on VW TOURAN 1t3 [TUTORIAL AUTODOC]

video
Published on: 27/12/2018
15K views
All the parts you need to replace – Springs for TOURAN (1T3) and other VW models
Alternative products

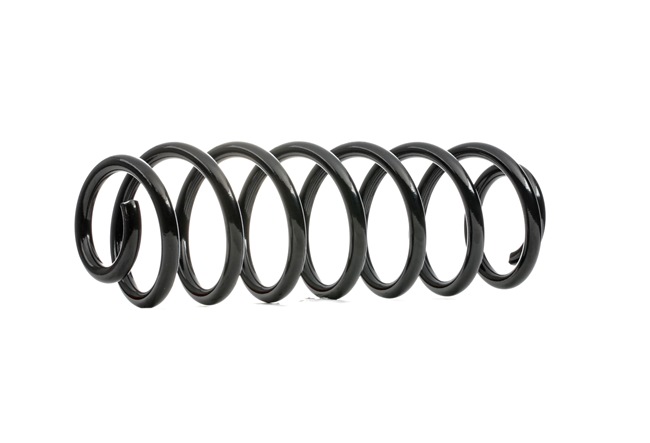

How to change Coil spring on Touran 1t3 1.6 TDI – step-by-step instructions for straightforward car repair Coil spring
4295067 LESJÖFORS Coil spring
27,68 GBP
Shop
36-148257 BILSTEIN Coil spring
27,96 GBP
Shop
RH5550 KYB Coil spring
30,93 GBP
Shop
RH5549 KYB Coil spring
34,09 GBP
Shop
JCS410 TRW Coil spring
34,94 GBP
Shop
SKCS-0040006 STARK Coil spring
35,03 GBP
Shop
2240825 METZGER Coil spring
37,01 GBP
Shop
71888 MAPCO Coil spring
39,66 GBP
Shop
996 642 SACHS Coil spring
41,39 GBP
Shop
4295083 LESJÖFORS Coil spring
44,19 GBP
Shop
Tools
Replacement: coil springs – VW Touran 1T3. Tools you might need:
Wire brush
Copper grease
WD-40 spray
Combination spanner #16
Combination spanner #21
XZN socket bit # 6
Strut spring compressor
Torque wrench
Hydraulic transmission jack
Wheel impact socket #17
Crow bar
Wheel chock
Buy tools
Replacement: coil springs – VW Touran 1T3. Professionals recommend:
  • Both coil springs of the rear suspension should be replaced simultaneously.
  • The replacement procedure is identical for the left and right coil springs of the rear suspension.
  • All work should be done with the engine stopped.
Replacement: coil springs – VW Touran 1T3. Use the following procedure:
  1. Step 1
    How to change Springs on Touran 1t3 2010 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VW TOURAN (1T3) 1.6 TDI 2011 Springs - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Touran 1t3 2.0 TDI 2012 Springs replacement: free workshop manuals
    Raise the rear of the car and secure on supports.
  4. Step 4
    Changing Springs on VW TOURAN (1T3) 1.4 TSI EcoFuel 2013 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. VW Touran 1T3
  5. Step 5
    How to remove VW TOURAN 1.2 TSI 2014 Springs - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Springs on VW TOURAN (1T3) 2015: download PDF manuals and video instructions
    Support the arm. Use a hydraulic transmission jack.
  7. Step 7
    How hard is it to do yourself: Springs replacement on Touran 1t3 2.0 TDI 2010 - download illustrated guide
    Unscrew the lower fastener of the shock absorber. Use a combination spanner #21.
    AUTODOC recommends:
    VW Touran 1T3 – To avoid injury, hold the shock absorber while unscrewing the fastening bolts.
  8. Step 8
    Need to know how to renew Springs on VW TOURAN 2011? This free workshop manual will help you to do it yourself
    Treat all joints of the stabiliser link. Use WD-40 spray.
  9. Step 9
    Changing of Springs on Touran 1t3 2012 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the stabilizer rod fasteners. Use a combination spanner #16. Use XZN #6.
  10. Step 10
    VW TOURAN 1.4 TSI EcoFuel Springs replacement: online guides and video tutorials
    Remove the support from under the rear arm.
    AUTODOC recommends:
    Replacement: coil springs – VW Touran 1T3. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
  11. Step 11
    Replacing Springs on Touran 1t3 2014 1.6 TDI by yourself
    Install the coil spring compressor on the coil spring.
    Replacement: coil springs – VW Touran 1T3. AUTODOC experts recommend:
    Use adapters and jaws of the appropriate size. The sping coils should be securely fixed with the coil spring compressor. Use high quality coil spring compressors.
  12. Step 12
    TOURAN (1T3) 1.2 TSI 2015 Springs DIY replacement workshop manual
    Compress the spring by turning the lead screw of the coil spring compressor. Use a combination spanner.
    Replacement: coil springs – VW Touran 1T3. Tip:
    The wrench size may vary depending on the spring compressor manufacturer.Compress the coil spring compressor until there is enough room to remove the spring. Do not compress the tool to the full: the spring coils must not touch each other. Be careful. The compressed spring is powerful and in case of disrupting ties, straightening, it can cause injury.
  13. Step 13
    How to change Springs on VW TOURAN (1T3) 2010 - tips and tricks
    Pull down the suspension control arm. Use a crowbar.
  14. Step 14
    Step-by-step recommendations for DIY replacement Touran 1t3 2011 1.2 TSI Springs
    Remove the coil spring together with the coil spring compressor.
    Replacement: coil springs – VW Touran 1T3. AUTODOC recommends:
    While the spring is compressed, do not do any operations on it.
  15. Step 15
    DIY replacement of Springs on VW TOURAN (1T3) 1.4 TSI 2012 is not an issue anymore with our step-by-step tutorial
    Secure the coil spring compressor on a work bench.
  16. Step 16
    How to change Springs on Touran 1t3 2010 - free PDF and video manuals
    Decompress the spring.
  17. Step 17
    How to replace VW TOURAN (1T3) 1.6 TDI 2011 Springs - step-by-step manuals and video guides
    Take out the spring.
  18. Step 18
    Clean the coil spring mounting seats.
    Step 19
    Touran 1t3 2.0 TDI 2012 Springs replacement: free workshop manuals
    Inspect the rubber mounts of the suspension spring. Replace if necessary.
  19. Step 20
    Changing Springs on VW TOURAN (1T3) 1.4 TSI EcoFuel 2013 by yourself
    Install a new coil spring on the coil spring compressor.
    Replacement: coil springs – VW Touran 1T3. Tip from AUTODOC:
    Use adapters and jaws of the appropriate size.
