Important!
This replacement procedure can be used for:
VW PASSAT Variant (3B6) 1.9 TDI, VW PASSAT Variant (3B6) 1.6, VW PASSAT Variant (3B6) 2.0, VW PASSAT Variant (3B6) 2.3 VR5, VW PASSAT Variant (3B6) 1.8 T 20V, VW PASSAT Variant (3B6) 2.5 TDI, VW PASSAT Variant (3B6) 2.0, VW PASSAT Variant (3B6) 2.5 TDI, VW PASSAT Variant (3B6) 2.0 TDI, VW PASSAT Variant (3B6) 1.8 T … View more

The steps may slightly vary depending on the car design.

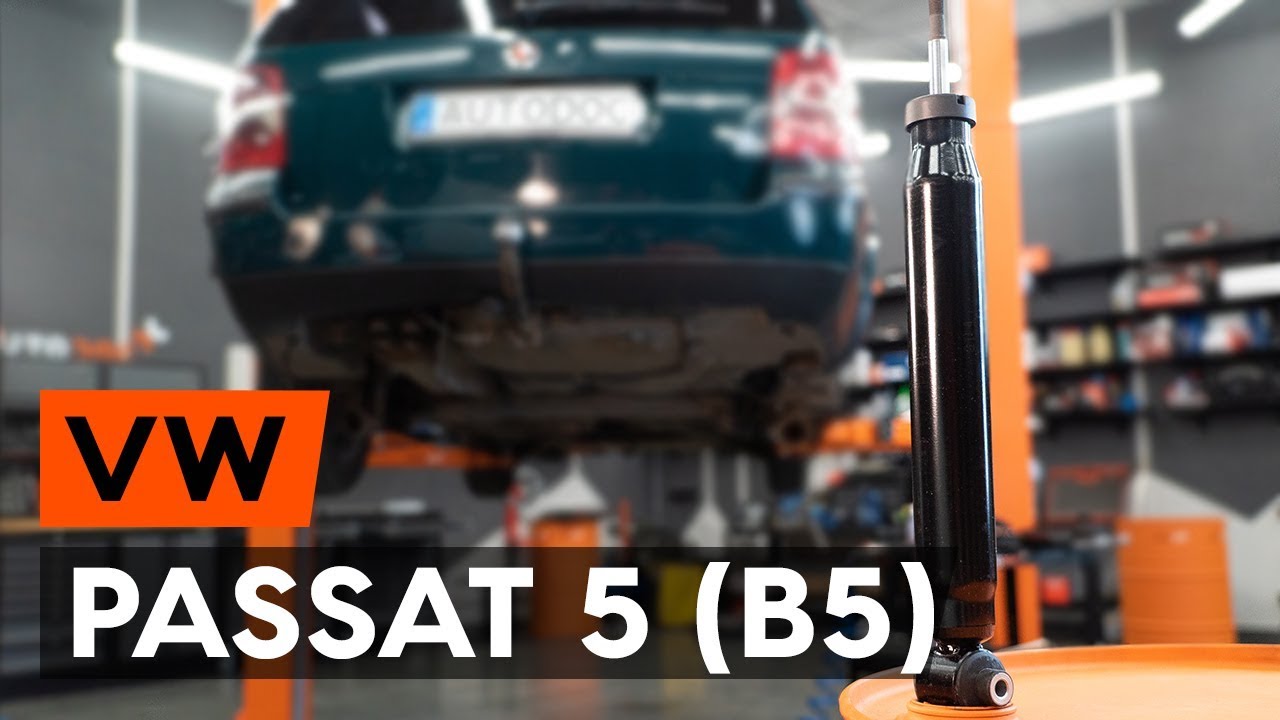

How to change rear shock absorber on VW PASSAT 5 (B5)  [TUTORIAL AUTODOC]

video
Published on: 27/11/2019
26K views
All the parts you need to replace – Shock Absorber for PASSAT Variant (3B6) and other VW models
Alternative products
How to change Shock absorber on Passat 3B6 1.9 TDI – step-by-step instructions for straightforward car repair Shock absorber
Tools
Replacement: shock absorbers – VW Passat B5 Variant. Tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Drive socket # 13
Drive socket # 16
Drive socket # 17
Combination spanner #16
Wheel impact socket #17
Ratchet wrench
Torque wrench
Locking pliers
Shock absorber socket №5
Vice
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: shock absorbers – VW Passat B5 Variant. Tip from AUTODOC experts:
  • Both shock absorbers of the rear suspension should be replaced simultaneously.
  • The replacement procedure is identical for the left and right shock absorbers of the rear suspension.
  • Please note: all work on the car – VW Passat B5 Variant – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Shock Absorber on Passat 3B6 2000 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VW PASSAT Variant (3B6) 1.9 TDI 2001 Shock Absorber - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Passat 3B6 1.8 T 20V 2002 Shock Absorber replacement: free workshop manuals
    Raise the rear of the car and secure on supports.
  4. Step 4
    Changing Shock Absorber on VW PASSAT Variant (3B6) 2.0 2003 by yourself
    Unscrew the wheel bolts.
    Replacement: shock absorbers – VW Passat B5 Variant. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  5. Step 5
    How to remove VW PASSAT 1.6 2004 Shock Absorber - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Shock Absorber on VW PASSAT Variant (3B6) 2005: download PDF manuals and video instructions
    Clean the shock absorber fasteners. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Shock Absorber replacement on Passat 3B6 2.0 TDI 2000 - download illustrated guide
    Support the rear suspension beam. Use a hydraulic transmission jack.
  8. Step 8
    Need to know how to renew Shock Absorber on VW PASSAT 2001? This free workshop manual will help you to do it yourself
    Unscrew the lower fastener of the shock absorber. Use a combination spanner #16. Use a drive socket #16. Use a ratchet wrench.
  9. Step 9
    Changing of Shock Absorber on Passat 3B6 2002 won't be an issue if you follow this illustrated step-by-step guide
    Remove the fastening bolt.
  10. Step 10
    VW PASSAT 1.9 TDI Shock Absorber replacement: online guides and video tutorials
    Remove the mounting from under the rear axle beam.
    AUTODOC recommends:
    Replacement: shock absorbers – VW Passat B5 Variant. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
  11. Step 11
    Replacing Shock Absorber on Passat 3B6 2004 1.9 TDI by yourself
    Clean the shock absorber fasteners. Use a wire brush. Use WD-40 spray.
  12. Step 12
    PASSAT Variant (3B6) 1.6 2005 Shock Absorber DIY replacement workshop manual
    Unscrew the upper fastener of the shock absorber. Use a drive socket #13. Use a ratchet wrench.
    Replacement: shock absorbers – VW Passat B5 Variant. Professionals recommend:
    To avoid injuries, hold the shock absorber when undoing the fastening bolts.
  13. Step 13
    How to change Shock Absorber on VW PASSAT Variant (3B6) 2000 - tips and tricks
    Remove the shock absorber.
  14. Step 14
    Step-by-step recommendations for DIY replacement Passat 3B6 2001 1.6 Shock Absorber
    Grip the shock absorber in a vice.
  15. Step 15
    DIY replacement of Shock Absorber on VW PASSAT Variant (3B6) 1.9 TDI 4motion 2002 is not an issue anymore with our step-by-step tutorial
    Clean the shock absorber rod fastener. Use a wire brush. Use WD-40 spray.
  16. Step 16
    How to change Shock Absorber on Passat 3B6 2000 - free PDF and video manuals
    Remove the shock absorber piston rod fastening. Use a shock absorber socket #5. Use a drive socket #17. Use a ratchet wrench.
  17. Step 17
    How to replace VW PASSAT Variant (3B6) 1.9 TDI 2001 Shock Absorber - step-by-step manuals and video guides
    Remove the shock absorber mount, boot and bump stop.
    Replacement: shock absorbers – VW Passat B5 Variant. Tip from AUTODOC experts:
    Examine the shock absorber dust cap and the bump stop. Replace them if necessary.
  18. Step 18
    Passat 3B6 1.8 T 20V 2002 Shock Absorber replacement: free workshop manuals
    Install the mount, boot and bump stop onto a new shock absorber.
  19. Step 19
    Changing Shock Absorber on VW PASSAT Variant (3B6) 2.0 2003 by yourself
    Screw the shock strut piston rod upper fastening. Use a combination spanner #17. Use locking pliers. Use a torque wrench. Tighten it to 25 Nm torque.
  20. Step 20
    How to remove VW PASSAT 1.6 2004 Shock Absorber - online easy-to-follow instructions
    Release the vice and take out the shock absorber.
    Replacement: shock absorbers – VW Passat B5 Variant. AUTODOC recommends:
    Before installing a new shock absorber you should pump it manually 3-5 times.
  21. Step 21
    How to replace Shock Absorber on VW PASSAT Variant (3B6) 2005: download PDF manuals and video instructions
    Clean the shock absorber mounting seats. Use a wire brush. Use WD-40 spray.
  22. Step 22
    How hard is it to do yourself: Shock Absorber replacement on Passat 3B6 2.0 TDI 2000 - download illustrated guide
    Place the shock absorber in the wheel arch and secure it.
    AUTODOC recommends:
    Important! Hold the shock absorber while screwing in the fastening bolts. VW Passat B5 Variant
