Important!
This replacement procedure can be used for:
VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) VR6 3.2, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) VR6 3.2, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI 4motion, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI 4motion, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) VR6 3.2 4motion, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 1.9 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0 TDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0 TDI 4motion, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0 BiTDI, VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0 BiTDI 4motion View more

The steps may slightly vary depending on the car design.

How to change rear light on VW T5 TRANSPORTER Van [TUTORIAL AUTODOC]

video
All the parts you need to replace – Tail Lights for Transporter V Van (7HA, 7HH, 7EA, 7EH) and other VW models
How to change Rear light on VW T5 2.5 TDI – step-by-step instructions for straightforward car repair

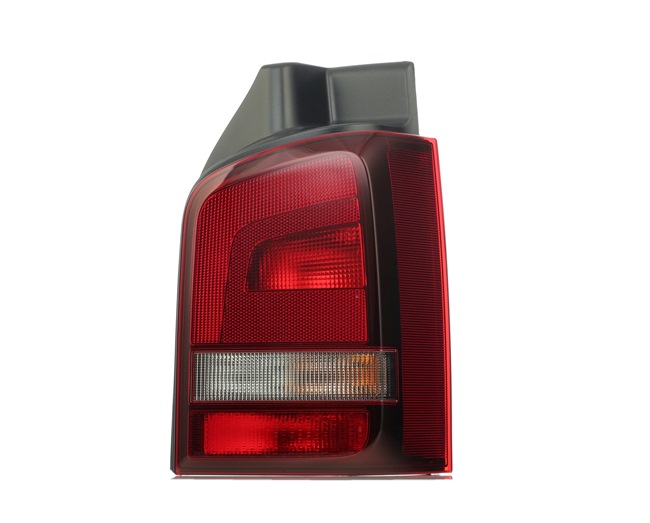

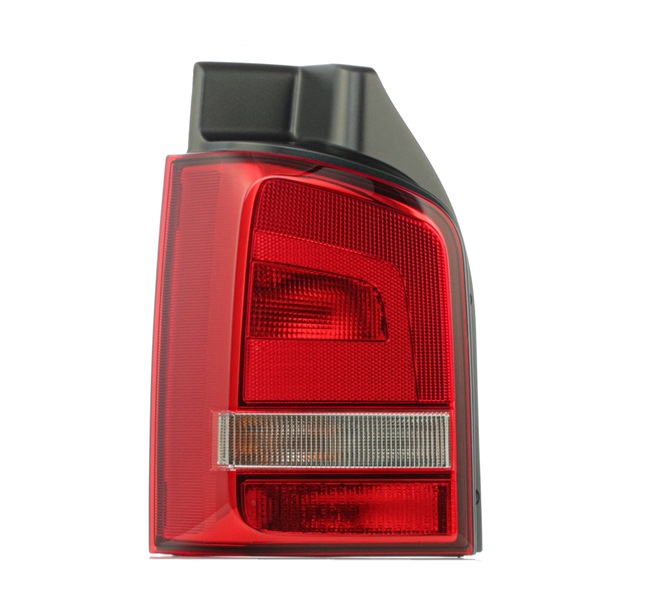

Rear light
How to change Combination Rearlight Set on VW T5 2.5 TDI – step-by-step instructions for straightforward car repair
Combination Rearlight Set
How to change Combination Rearlight on VW T5 2.5 TDI – step-by-step instructions for straightforward car repair
Combination Rearlight
How to change Taillight on VW T5 2.5 TDI – step-by-step instructions for straightforward car repair
Taillight
Tools
Replacement: rear light – VW T5 Transporter. List of the tools you'll need:
Electronic spray
Torque wrench
Phillips Screwdriver
Replacement: rear light – VW T5 Transporter. Tip from AUTODOC:
  • Replace both rear lights at the same time.
  • The replacement procedure is identical for the right and left rear lights.
  • Please note: all work on the car – VW T5 Transporter – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Tail Lights on VW T5 2003 - free PDF and video manuals
    Open the boot lid.
  2. Step 2
    How to replace VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.5 TDI 2004 Tail Lights - step-by-step manuals and video guides
    Detach the check strap of the rear barn door.
  3. Step 3
    VW T5 2.5 TDI 4motion 2005 Tail Lights replacement: free workshop manuals
    Unscrew the fasteners connecting the rear light to the car body. Use a Phillips screwdriver.
  4. Step 4
    Changing Tail Lights on VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2.0 TDI 2006 by yourself
    Remove the rear light.
    AUTODOC recommends:
    Replacement: rear light – VW T5 Transporter. Do not use excessive force when removing the part as this may damage it.
  5. Step 5
    How to remove VW TRANSPORTER 2.5 TDI 2007 Tail Lights - online easy-to-follow instructions
    Disconnect the wiring harness from the rear light.
  6. Step 6
    How to replace Tail Lights on VW Transporter V Van (7HA, 7HH, 7EA, 7EH) 2008: download PDF manuals and video instructions
    Remove the bulb holder together with the bulbs.
    Replacement: rear light – VW T5 Transporter. Tip from AUTODOC experts:
    Do not apply excessive force when removing the part. Otherwise you may damage it.Avoid touching the bulb glass. The finger marks left on it may cause failure.
  7. Step 7
    How hard is it to do yourself: Tail Lights replacement on VW T5 1.9 TDI 2009 - download illustrated guide
    Install the bulb holder together with the bulbs.
    AUTODOC recommends:
    Replacement: rear light – VW T5 Transporter. Do not use excessive force during installation. This may damage the part.Avoid touching the bulb glass. The finger marks left on it may cause failure.
  8. Step 8
    Need to know how to renew Tail Lights on VW TRANSPORTER 2010? This free workshop manual will help you to do it yourself
    Treat the connectors of the rear light cluster. Use dielectric grease.
