How to change rear coil springs on RENAULT Clio III Grandtour – replacement guide
downloads:
0
Views:
16
Important!
This replacement procedure can be used for:
RENAULT CLIO Grandtour (KR0/1_) 1.2 16V, RENAULT CLIO Grandtour (KR0/1_) 1.2 16V (KR02, KR0J), RENAULT CLIO Grandtour (KR0/1_) 1.2 16V (KR0E), RENAULT CLIO Grandtour (KR0/1_) 1.2 16V (KR0P), RENAULT CLIO Grandtour (KR0/1_) 1.6 16V (KR0B), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR0G), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR0F), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR1C, KR1N), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR0H, KR1S), RENAULT CLIO Grandtour (KR0/1_) 1.2 16V Hi-Flex (KR0S), RENAULT CLIO Grandtour (KR0/1_) 1.6 16V (KR10), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi, RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi, RENAULT CLIO Grandtour (KR0/1_) 1.4 16V, RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi … View more
The steps may slightly vary depending on the car design.
RENAULT CLIO Grandtour (KR0/1_) 1.2 16V, RENAULT CLIO Grandtour (KR0/1_) 1.2 16V (KR02, KR0J), RENAULT CLIO Grandtour (KR0/1_) 1.2 16V (KR0E), RENAULT CLIO Grandtour (KR0/1_) 1.2 16V (KR0P), RENAULT CLIO Grandtour (KR0/1_) 1.6 16V (KR0B), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR0G), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR0F), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR1C, KR1N), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi (KR0H, KR1S), RENAULT CLIO Grandtour (KR0/1_) 1.2 16V Hi-Flex (KR0S), RENAULT CLIO Grandtour (KR0/1_) 1.6 16V (KR10), RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi, RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi, RENAULT CLIO Grandtour (KR0/1_) 1.4 16V, RENAULT CLIO Grandtour (KR0/1_) 1.5 dCi … View more
The steps may slightly vary depending on the car design.
This video shows the replacement procedure of a similar car part on another vehicle

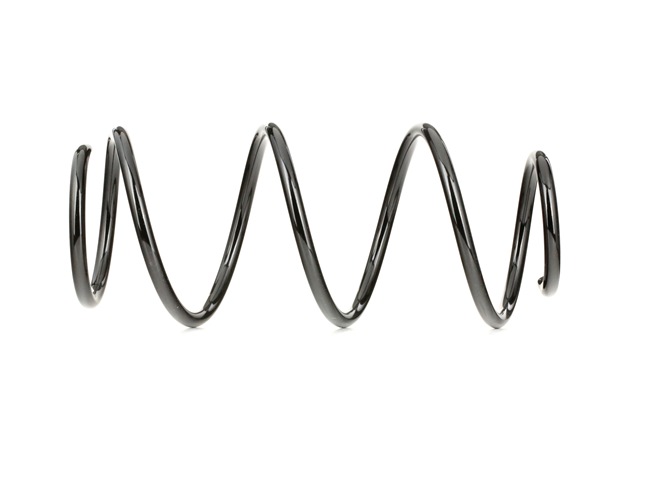

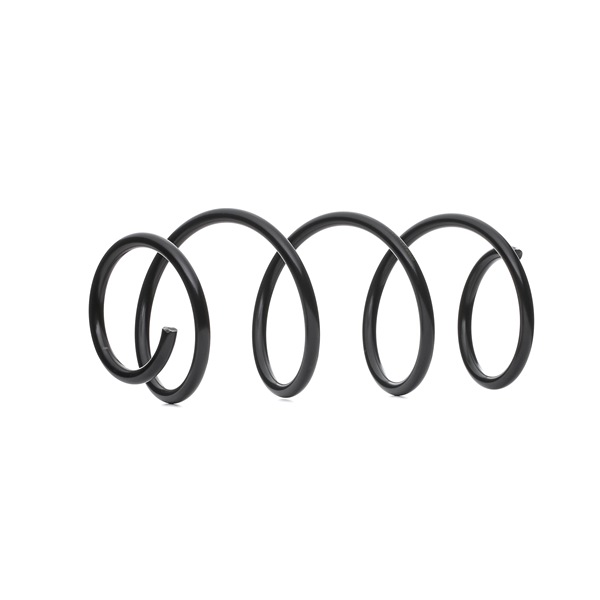

All the parts you need to replace – Springs for CLIO Grandtour (KR0/1_) and other RENAULT models
Alternative products
Coil spring
Wire brush
WD-40 spray
Copper grease
Torque wrench
Drive socket # 18
Wheel impact socket #17
Ratchet wrench
Crow bar
Hydraulic transmission jack
Wheel chock
Replacement: coil springs – RENAULT CLIO Grandtour (KR0/1_). AUTODOC recommends:
- Both coil springs of the rear suspension should be replaced simultaneously.
- The replacement procedure is identical for the left and right coil springs of the rear suspension.
- Please note: all work on the car – RENAULT CLIO Grandtour (KR0/1_) – should be done with the engine switched off.
Carry out replacement in the following order:
- Step 1Secure the wheels with chocks.Step 2
Loosen the wheel mounting bolts. Use wheel impact socket #17. - Step 3Raise the rear of the car and secure on supports.Step 4
Unscrew the wheel bolts.Replacement: coil springs – RENAULT CLIO Grandtour (KR0/1_). Tip:To avoid injury, hold up the wheel when unscrewing the bolts. - Step 5
Remove the wheel. - Step 6
Disconnect the ABS sensor wiring. Use a crowbar. - Step 7
Clean the shock absorber fasteners. Use a wire brush. Use WD-40 spray. - Step 8
Support the rear suspension beam. Use a hydraulic transmission jack. - Step 9
Unscrew the lower fastener of the shock absorber. Use a drive socket #18. Use a ratchet wrench. - Step 10
Remove the fastening bolt.Replacement: coil springs – RENAULT CLIO Grandtour (KR0/1_). AUTODOC experts recommend:To avoid injuries, hold the shock absorber when undoing the fastening bolts. - Step 11
Remove the mounting from under the rear axle beam.AUTODOC recommends:RENAULT CLIO Grandtour (KR0/1_) – Do not lower the transmission jack sharply to avoid damaging components and mechanisms of the car. - Step 12
Support the rear suspension beam. Use a hydraulic transmission jack. - Step 13
Unscrew the lower fastener of the shock absorber. Use a drive socket #18. Use a ratchet wrench. - Step 14Remove the fastening bolt.Step 15Remove the mounting from under the rear axle beam.Replacement: coil springs – RENAULT CLIO Grandtour (KR0/1_). Tip from AUTODOC experts:Lower the hydraulic transmission jack smoothly, without jerks, to avoid damaging assemblies and mechanisms.Step 16
Remove the spring.AUTODOC recommends:Inspect the rubber mounts of the suspension spring. Replace if necessary. - Step 17
Clean the coil spring mounting seats. Use a wire brush. Use WD-40 spray. - Step 18
Install the coil spring together with the rubber mounts into the mounting seats. - Step 19
Support the rear suspension beam. Use a hydraulic transmission jack. - Step 20Install the fastening bolt.Step 21
Screw in the lower fastener of the shock absorber. Use a drive socket #18. Use a ratchet wrench.
