How to change rear brake discs on BMW X3 E83 – replacement guide
downloads:
6
Views:
195
0
Users voted – 0
Recommended replacement interval for the part category Brake disc : 50000km
Important!
This replacement procedure can be used for:
BMW X3 (E83) xDrive 20 d,
BMW X3 (E83) xDrive 30 d,
BMW X3 (E83) 3.0 i xDrive,
BMW X3 (E83) 3.0 d,
BMW X3 (E83) 2.0 d,
BMW X3 (E83) 2.0 i,
BMW X3 (E83) 3.0 d,
BMW X3 (E83) 3.0 si,
BMW X3 (E83) 2.5 si,
BMW X3 (E83) 3.0 sd,
BMW X3 (E83) 2.0 sd,
BMW X3 (E83) xDrive 20 i,
BMW X3 (E83) xDrive 25 i,
BMW X3 (E83) xDrive 30 i,
BMW X3 (E83) xDrive 20 d,
BMW X3 (E83) xDrive 18 d,
BMW X3 (E83) xDrive 30 d,
BMW X3 (E83) xDrive 35 d,
BMW X3 (E83) xDrive 18 d,
BMW X3 (E83) 2.5 si xDrive,
BMW X3 (E83) 3.0 si,
BMW X3 (E83) 3.0 d
…
View more
The steps may slightly vary depending on the car design.
How to change rear brake discs on BMW X3 E83 [TUTORIAL AUTODOC]

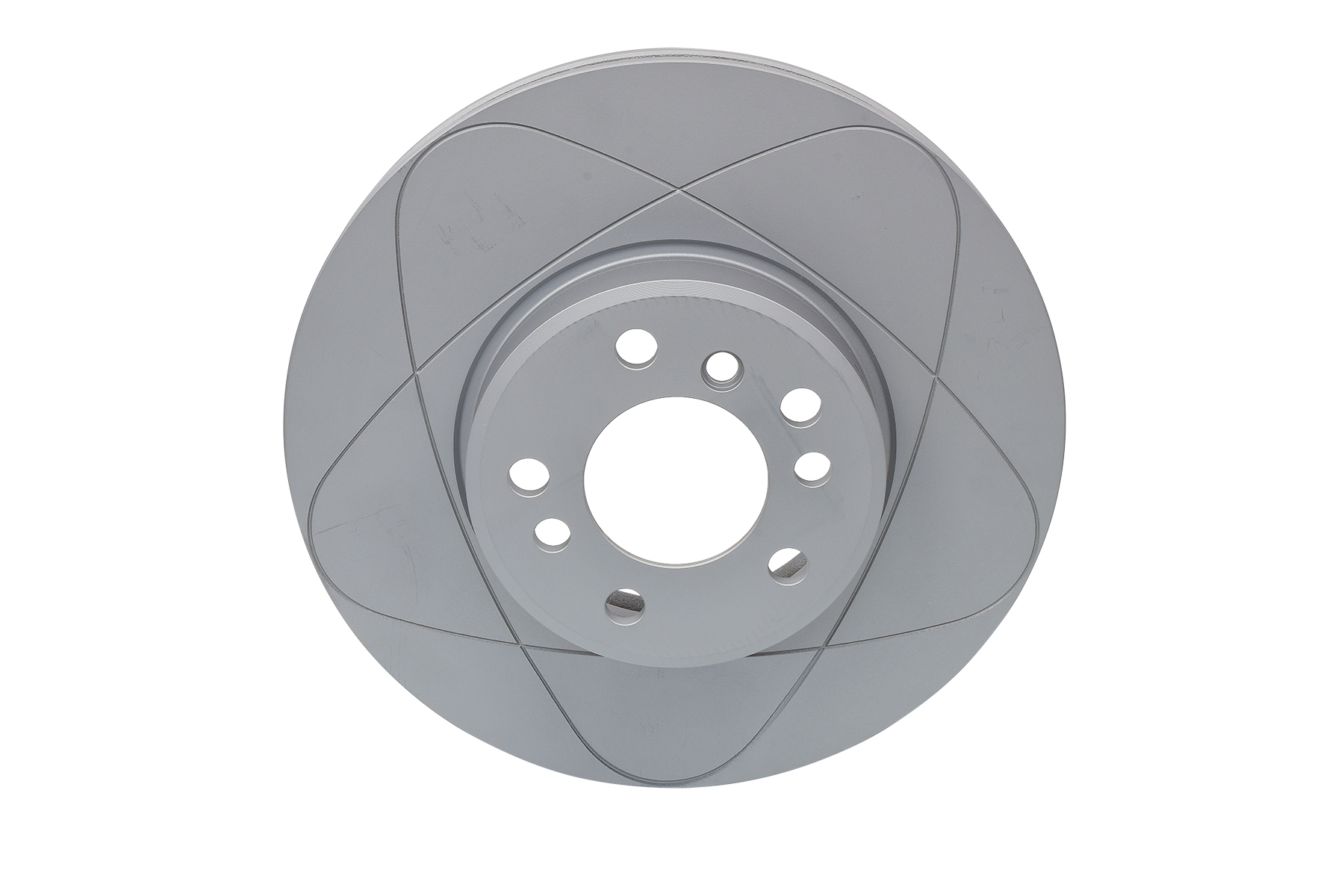

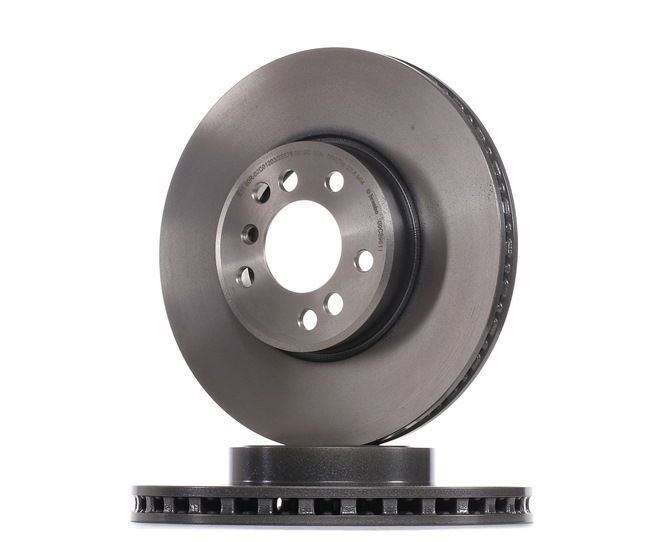

All the parts you need to replace – Brake Discs for X3 (E83) and other BMW models
Replacement: brake discs – BMW X3 E83. AUTODOC recommends:
Replace the brake disks on the car BMW X3 E83 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
The replacement procedure is identical for both brake disks on the same axle.
When changing the brake discs, always replace the brake pads.
Please note: all work on the car – BMW X3 E83 – should be done with the engine switched off.
Carry out replacement in the following order:
Step 1
Open the bonnet. Unscrew the brake fluid reservoir cap.
Step 2
Secure the wheels with chocks.
Step 3
Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 4
Raise the rear of the car and secure on supports.
Step 5
Unscrew the wheel bolts.
AUTODOC recommends:
Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. BMW X3 E83
Step 6
Remove the wheel.
Step 7
Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
Step 8
Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench.
Step 9
Disconnect the brake pads wear sensor. Use round-nose pliers.
Step 10
Detach the brake caliper retaining spring. Use a crowbar.
Step 11
Spread the brake pads. Use a crowbar.
Step 12
Remove the brake caliper.
Replacement: brake discs – BMW X3 E83. Professionals recommend:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 13
Remove the brake pads.
Step 14
Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
Step 15
Unscrew the caliper bracket fastening. Use a drive socket #16. Use a tap wrench. Use a ratchet wrench.
Step 16
Remove the caliper bracket.
Step 17
Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
Step 18
Unscrew the brake disc fastening. Use HEX No.H6. Use an impact screwdriver. Use a rubber mallet.
Step 19
Remove the brake disc.
Step 20
Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
Step 21
Remove anti-corrosion grease from the new brake disk. Use a brake cleaner.
AUTODOC recommends:
Replacement: brake discs – BMW X3 E83. After applying the spray, wait a few minutes.
Step 22
Install the brake disc.
Step 23
Tighten the brake disc fastening. Use HEX No.H5. Use a torque wrench. Tighten it to 16 Nm torque.
Step 24
Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
Replacement: brake discs – BMW X3 E83. Professionals recommend:
After applying the spray, wait a few minutes.
Step 25
Install the brake caliper bracket.
Step 26
Tighten the brake caliper bracket. Use a drive socket #16. Use a torque wrench. Tighten it to 65 Nm torque.
Step 27
Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.
AUTODOC recommends:
Replacement: brake discs – BMW X3 E83. After applying the spray, wait a few minutes.
Step 28
Press in the brake caliper piston. Use brake caliper wind back tool.
Step 29
Install the brake pads.
Step 30
Install the brake caliper and fix it.
Step 31
Install the brake caliper retaining spring.
Step 32
Tighten the brake caliper fasteners. Use HEX No.H7. Use a torque wrench. Tighten it to 30 Nm torque.
Step 33
Install the dust boot caps of the brake caliper guide pins.
Step 34
Connect the brake pads wear sensor. Use round-nose pliers.
Step 35
Clean the wheel rim mounting seat. Use a wire brush.
Step 36
Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 37
Clean the brake disk surface. Use a brake cleaner.
Replacement: brake discs – BMW X3 E83. Tip:
After applying the spray, wait a few minutes.
Step 38
Install the wheel.
AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. BMW X3 E83
Step 39
Screw in the wheel bolts. Use wheel impact socket #17.
Step 40
Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 140 Nm torque.
Step 41
Remove the jacks and chocks.
Replacement: brake discs – BMW X3 E83. Tip from AUTODOC:
Check the brake fluid level in the expansion tank and refill if necessary.Without starting the engine, press the brake pedal several times until you feel significant resistance.
Step 42
Tighten the brake fluid reservoir cap. Close the hood.
