Recommended replacement interval for the part category Brake disc : 50000 km

Important!

This replacement procedure can be used for:
BMW 1 Coupe (E82) 118 d, BMW 1 Coupe (E82) 120d, BMW 1 Coupe (E82) 120d, BMW 1 Coupe (E82) 120 i, BMW 1 Coupe (E82) 118 d, BMW 1 Coupe (E82) 120 i, BMW 1 Coupe (E82) 120d, BMW 1 Coupe (E82) 125i … View more

The steps may slightly vary depending on the car design.

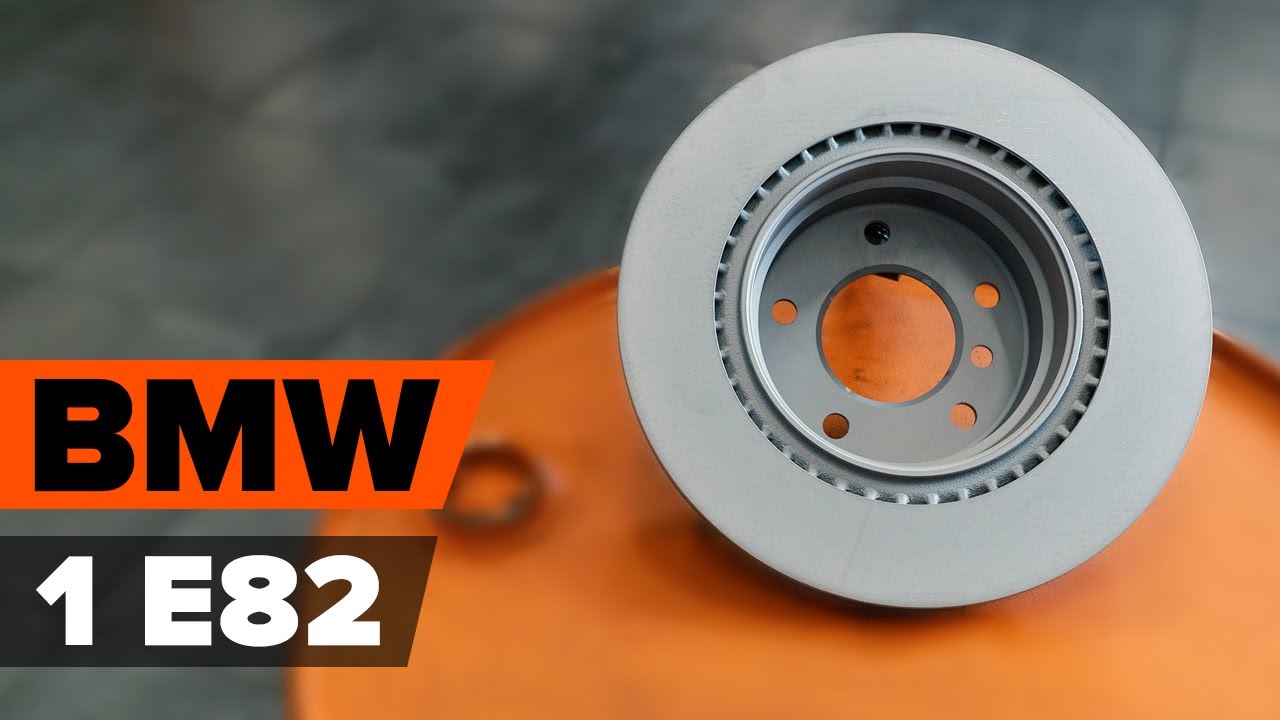

How to change rear brake discs on BMW 1 Series E82 [TUTORIAL AUTODOC]

All the parts you need to replace – Brake Discs for 1 Coupe (E82) and other BMW models

Alternative products

Brake disc

BG4293 DELPHI Brake disc

24,38 GBP

Shop

BS-8990 OPTIMAL Brake disc

37,10 GBP

Shop

SKBD-0020172 STARK Brake disc

37,57 GBP

Shop

SKBD-0023113 STARK Brake disc

37,99 GBP

Shop

82B0963 RIDEX Brake disc

37,99 GBP

Shop

V20-80078 VAICO Brake disc

38,38 GBP

Shop

0 986 479 497 BOSCH Brake disc

40,81 GBP

Shop

09.B414.11 BREMBO Brake disc

47,99 GBP

Shop

562786JC JURID Brake disc

52,79 GBP

Shop

B2046V LPR Brake disc

54,41 GBP

Shop

Replacement: brake discs – BMW E82. List of the tools you'll need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Anti-squeal paste

                      Copper grease

                      Drive socket # 16

                      HEX bit no.H6.

                      HEX bit no.H7.

                      Wheel impact socket #17

                      Ratchet wrench

                      Torque wrench

                      Brake caliper wind back tool

                      Tap wrench

                      Impact screwdriver

                      Crow bar

                      Fender cover

                      Wheel chock

Buy tools

Replacement: brake discs – BMW E82. Professionals recommend:

Replace the brake disks on the car BMW E82 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
The replacement procedure is identical for both brake disks on the same axle.
When changing the brake discs, always replace the brake pads.
Please note: all work on the car – BMW E82 – should be done with the engine switched off.

Carry out replacement in the following order:

Step 1

Open the bonnet.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.

Step 3

Remove the wiper arm cover.
Step 4

Unscrew the brake fluid reservoir cap.
Step 5

Secure the wheels with chocks.
Step 6

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 7

Raise the rear of the car and secure on supports.
Step 8

Unscrew the wheel bolts.

Replacement: brake discs – BMW E82. AUTODOC recommends:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 9

Remove the wheel.
Step 10

Disconnect the brake pads wear sensor. Use a crowbar.

Please note!
Some cars are not equipped with the brake pad wear sensor.
Step 11

Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
Step 12

Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench.
Step 13

Spread the brake pads. Use a crowbar.
Step 14

Detach the brake caliper retaining spring. Use a crowbar.
Step 15

Remove the brake caliper.

Replacement: brake discs – BMW E82. AUTODOC experts recommend:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 16

Remove the brake pads.
Step 17

Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
Step 18

Unscrew the caliper bracket fastening. Use a drive socket #16. Use a tap wrench.
Step 19

Remove the caliper bracket.
Step 20

Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
Step 21

Unscrew the brake disc fastening. Use HEX No.H6. Use an impact screwdriver.
Step 22

Remove the brake disc.
Step 23

Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
Step 24

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake discs – BMW E82. After applying the spray, wait a few minutes.
Step 25

Install the brake disc.
Step 26

Tighten the brake disc fastening. Use HEX No.H6. Use a torque wrench. Tighten it to 9 Nm torque.
Step 27

Install the brake caliper bracket.
Step 28

Tighten the brake caliper bracket. Use a drive socket #16. Use a torque wrench. Tighten it to 65 Nm torque.
Step 29

Treat the brake caliper piston. Use a brake cleaner.

Replacement: brake discs – BMW E82. Tip:
After applying the spray, wait a few minutes.
Step 30

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 31

Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.

Step 32

Install the brake pads.
Step 33

Install the brake caliper and fix it. Use HEX No.H7. Use a torque wrench. Tighten it to 30 Nm torque.
Step 34

Install the dust boot caps of the brake caliper guide pins.
Step 35

Connect the brake pads wear sensor.
Step 36

Install the brake caliper retaining spring.
Step 37

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 38

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: brake discs – BMW E82. After applying the spray, wait a few minutes.
Step 39

Install the wheel.

Replacement: brake discs – BMW E82. Tip from AUTODOC:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 40

Screw in the wheel bolts. Use wheel impact socket #17.
Step 41

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 120 Nm torque.
Step 42

Remove the jacks and chocks.

AUTODOC recommends:
Important! Replacement: brake discs – BMW E82. Check the brake fluid level in the reservoir and top up if necessary.
Step 43

Tighten the brake fluid reservoir cap.
Step 44

Install the wiper arm cover.
Step 45

Remove the fender protection cover.

Step 46

Close the hood.

AUTODOC recommends:
BMW E82 – Press the brake pedal several times with the engine shut down until you feel the resistance built up.
