When to replace the Fuel Filter on your VW TRANSPORTER
Recommended replacement interval for the part category Fuel filter : 60000 km
Important!
This replacement procedure can be used for:
VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D Syncro, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 D, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 TD, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.4 D, VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1.9 D … View more

The steps may slightly vary depending on the car design.

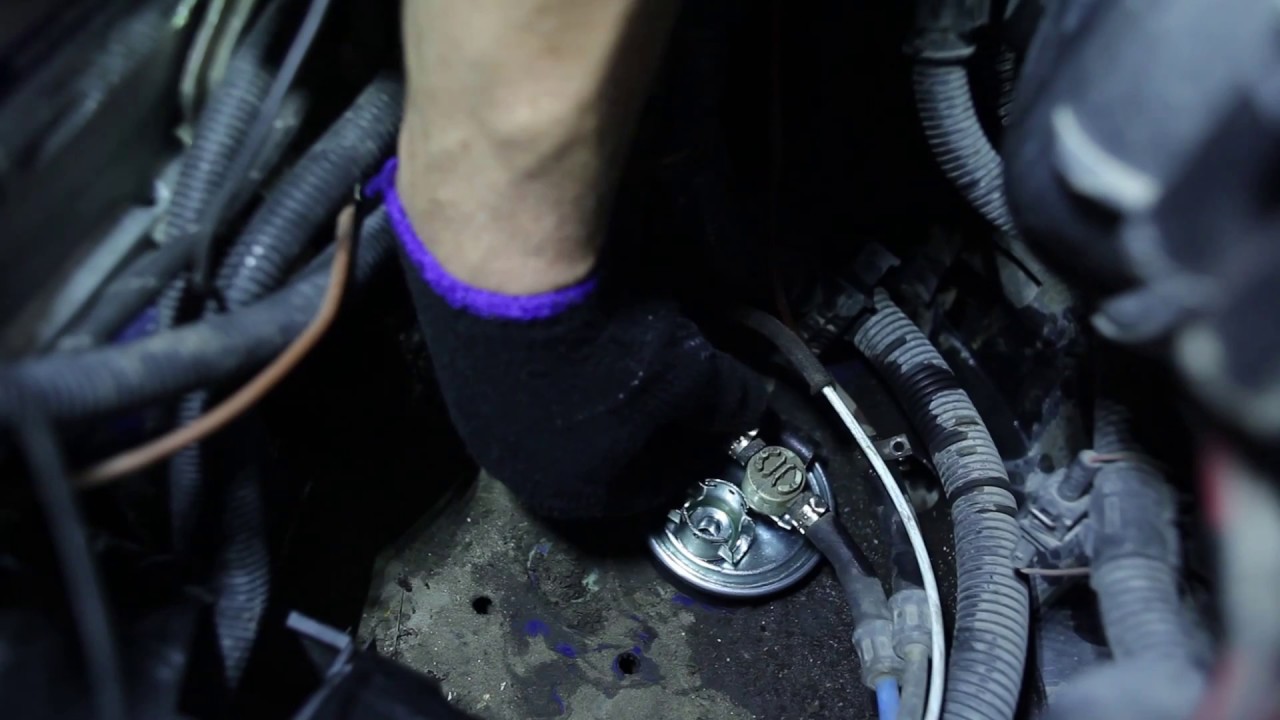

How to change fuel filter VW T4 TRANSPORTER [TUTORIAL AUTODOC]

video
Published on: 07/09/2016
40K views
All the parts you need to replace – Fuel Filter for Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) and other VW models
Alternative products
How to change Fuel filter on T4 Transporter 2.5 TDI – step-by-step instructions for straightforward car repair Fuel filter
Tools
Replacement: fuel filter – VW Transporter T4. List of the tools you'll need:
Phillips screwdriver
Flat Screwdriver
Fender cover
Buy tools
Replacement: fuel filter – VW Transporter T4. AUTODOC recommends:
  • Ensure adequate ventilation of the workplace. Fuel vapors are poisonous.
  • All work should be done with the engine stopped.
Replacement: fuel filter – VW Transporter T4. Recommended sequence of steps:
  1. Step 1
    How to change Fuel Filter on T4 Transporter 1990 - free PDF and video manuals
    Open the bonnet.
  2. Step 2
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
    Step 3
    How to replace VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI 1991 Fuel Filter - step-by-step manuals and video guides
    Remove the battery cover.
  3. Step 4
    Remove the retainers of the fasteners of the fuel filter tubes. Use a flat screwdriver.
    Step 5
    T4 Transporter 2.4 D 1992 Fuel Filter replacement: free workshop manuals
    Loosen the fastening clamps of the fuel filter pipes. Use a Phillips screwdriver. Use a flat screwdriver.
  4. Step 6
    Changing Fuel Filter on VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 1993 by yourself
    Detach the tubes from the fuel filter.
    Replacement: fuel filter – VW Transporter T4. Professionals recommend:
    Be careful! Fuel may leak from the filter housing and hoses.
  5. Step 7
    How to remove VW TRANSPORTER 2.5 TDI Syncro 1994 Fuel Filter - online easy-to-follow instructions
    Remove the fuel filter.
  6. Step 8
    How to replace Fuel Filter on VW Transporter IV Minibus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 1995: download PDF manuals and video instructions
    Install a new fuel filter.
    Replacement: fuel filter – VW Transporter T4. AUTODOC experts recommend:
    Make sure that the fuel filter is positioned correctly. Consider the fuel flow direction mark.During installation, take care to prevent dust and dirt from getting into the fuel filter housing.Take care to only use quality filters.
  7. Step 9
    How hard is it to do yourself: Fuel Filter replacement on T4 Transporter 2.5 TDI 1996 - download illustrated guide
    Attach the tubes to the fuel filter.
