How to change front suspension strut on Renault Scenic 2 – replacement guide

downloads: 8

Important!

This replacement procedure can be used for:
RENAULT SCÉNIC II (JM0/1_) 1.9 D, RENAULT SCÉNIC II (JM0/1_) 1.6 Hi-Flex, RENAULT SCÉNIC II (JM0/1_) 2.0 (JM05, JM0U, JM1N, JM1U, JM2V), RENAULT SCÉNIC II (JM0/1_) 1.5 dCi (JM0F), RENAULT SCÉNIC II (JM0/1_) 1.6 (JM0C, JM0J, JM1B), RENAULT SCÉNIC II (JM0/1_) 1.4 (JM0B, JM0H, JM1A), RENAULT SCÉNIC II (JM0/1_) 1.5 dCi (JM02, JM13), RENAULT SCÉNIC II (JM0/1_) 2.0 16V Turbo (JM0W), RENAULT SCÉNIC II (JM0/1_) 1.5 dCi (JM1F), RENAULT SCÉNIC II (JM0/1_) 1.5 dCi (JM1E, JM16), RENAULT SCÉNIC II (JM0/1_) 1.9 dCi (JM14), RENAULT SCÉNIC II (JM0/1_) 1.9 dCi (JM15), RENAULT SCÉNIC II (JM0/1_) 2.0 dCi (JM1K), RENAULT SCÉNIC II (JM0/1_) 1.5 dCi (JM16), RENAULT SCÉNIC II (JM0/1_) 1.6 16V (JM1R), RENAULT SCÉNIC II (JM0/1_) 1.6, RENAULT SCÉNIC II (JM0/1_) 1.9 dCi … View more

The steps may slightly vary depending on the car design.

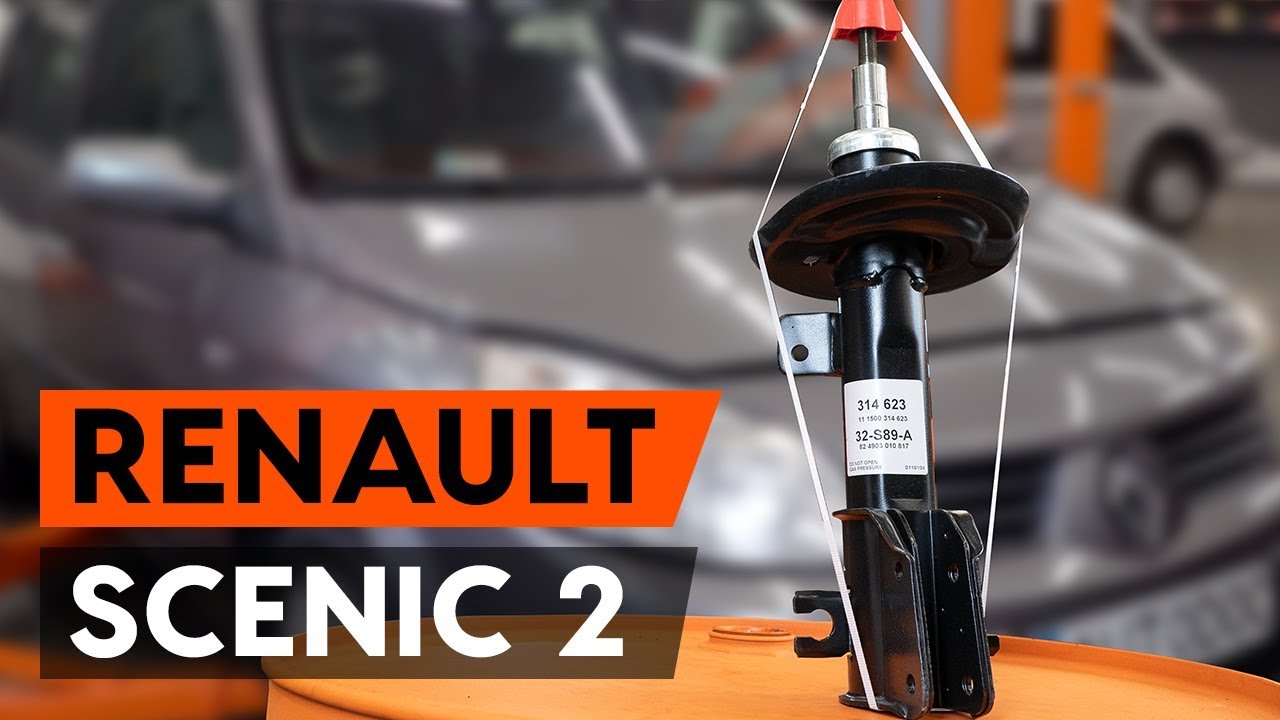

How to change a front shock strut on RENAULT SCENIC 2 (JM) [TUTORIAL AUTODOC]

All the parts you need to replace – Shock Absorber for SCÉNIC II (JM0/1_) and other RENAULT models

Alternative products

Shock absorber

SKSA-0130899 STARK Shock absorber

26,18 GBP

Shop

854S0352 RIDEX Shock absorber

30,75 GBP

Shop

DG10073 DELPHI Shock absorber

36,83 GBP

Shop

AGR078MT Magnum Technology Shock absorber

39,66 GBP

Shop

356226070000 MAGNETI MARELLI Shock absorber

40,21 GBP

Shop

22-158390 BILSTEIN Shock absorber

44,68 GBP

Shop

129989 QUINTON HAZELL Shock absorber

46,45 GBP

Shop

313 446 SACHS Shock absorber

47,23 GBP

Shop

334831 KYB Shock absorber

47,61 GBP

Shop

178989 QUINTON HAZELL Shock absorber

48,70 GBP

Shop

Replacement: suspension strut – Renault Scenic 2. Tools you need:

                      Wire brush

                      WD-40 spray

                      Copper grease

                      Drive socket # 10

                      Drive socket # 13

                      Drive socket # 17

                      Drive socket # 18

                      Torx bit T20

                      HEX bit No.H6.

                      Combination spanner #19

                      Wheel impact socket #19

                      Shock absorber socket

                      Ratchet wrench

                      Torque wrench

                      Flat chisel

                      Tap wrench

                      Hammer

                      Crow bar

                      Hydraulic strut spring compressor

                      Hydraulic transmission jack

                      Fender cover

                      Wheel chock

Buy tools

Replacement: suspension strut – Renault Scenic 2. Tip from AUTODOC experts:

Both shock struts of the front suspension should be replaced simultaneously.
The replacement procedure is identical for the left and right shock struts of the front suspension.
All work should be done with the engine stopped.

Replacement: suspension strut – Renault Scenic 2. Use the following procedure:

Step 1

Open the bonnet.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3

Unscrew the fastener of the wiper cowl grille located on the left side. Use a drive socket #10. Use a ratchet wrench.
Step 4

Remove the rubber strip.
Step 5

Remove the wiper cowl grille located on the left side.
Step 6

Unscrew the fastener of the wiper cowl grille located on the right side. Use Torx T20.
Step 7

Raise a little the wiper cowl grille located on the right side.
Step 8

Clean the fasteners of the shock strut upper mount. Use a wire brush. Use WD-40 spray.
Step 9

Loosen the upper fastener of the shock strut mount. Use a drive socket #13. Use a ratchet wrench.
Step 10

Secure the wheels with chocks.
Step 11

Loosen the wheel mounting bolts. Use wheel impact socket #19.
Step 12

Raise the front of the car and secure on supports.
Step 13

Unscrew the wheel bolts.

Replacement: suspension strut – Renault Scenic 2. AUTODOC recommends:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 14

Remove the wheel.
Step 15

Clean the fasteners connecting the stabiliser link to the shock strut, and those connecting the shock strut to the steering knuckle. Use a wire brush. Use WD-40 spray.

Step 16

Unscrew the nut and remove the stabilizer rod from the shock strut. Use a drive socket #17.
Step 17

Disconnect the wiring and the brake hose from the bracket on the shock strut. Use a crowbar.
Step 18

Unscrew the lower fastener connecting the shock strut to the steering knuckle. Use a drive socket #18. Use a tap wrench.
Step 19

Remove the fastening bolt.

Step 20

Clean the fastener connecting the ball joint to the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 21

Unscrew the ball joint fastening to the steering knuckle. Use a drive socket #17. Use a ratchet wrench.
Step 22

Remove the fastening bolt.
Step 23

Disconnect the ball joint from the steering knuckle. Use a crowbar.
Step 24

Prop up the steering knuckle. Use a hydraulic transmission jack.
Step 25

Release the lower fastener connecting the shock strut to the steering knuckle. Use a special drive socket to remove the shock absorber. Use a ratchet wrench.
Step 26

Disconnect the steering knuckle from the shock absorber strut. Use a hammer. Use a flat metal-working chisel.
Step 27

Unscrew the top fastening of the shock strut mount. Use a drive socket #13. Use a ratchet wrench.

Replacement: suspension strut – Renault Scenic 2. AUTODOC experts recommend:
To avoid injuries, hold the shock strut when undoing the fastening bolts.
Step 28

Remove the suspension strut.
Step 29

Set the shock absorber strut on the spring compressor tool.

Replacement: suspension strut – Renault Scenic 2. Tip from AUTODOC:
Note that when using a spring compressor, spring coils need to be securely gripped, compressing the spring on the opposite sides.Ensure the correct position of the spring in the retainer.Make sure that the spring coils tightly entered the lock handles.
Step 30

Compress the spring.
Step 31

Treat the shock strut rod. Use a wire brush. Use WD-40 spray.
Step 32

Remove the strut piston rod nut. Use a combination spanner #19. Use HEX No.H6.
Step 33

Remove the top strut mount.
Step 34

Release the coil spring.
Step 35

Remove the spring.
Step 36

Remove the shock absorber dust cap and the bump stop.
Step 37

Remove the old shock absorber from the hydraulic coil spring compressor.

Replacement: suspension strut – Renault Scenic 2. Tip from AUTODOC experts:
Τhoroughly examine the shock absorber mount, dust boot, bump stop. Replace them if necessary.Before installing a new shock absorber you should pump it manually 3-5 times.
Step 38

Install the new shock absorber on the hydraulic coil spring compressor.
Step 39

Install the dust sleeve and the bump stop on the new shock absorber.
Step 40

Install the spring on the shock absorber.
Step 41

Compress the spring.
Step 42

Install the upper strut mount and the strut mount bearing.
Step 43

Tighten the shock strut piston rod nut. Use a combination spanner #19. Use HEX No.H6. Use a torque wrench. Tighten it to 60 Nm torque.

Replacement: suspension strut – Renault Scenic 2. Professionals recommend:
Check to make sure the spring is positioned correctly. Avoid its misalignment.
Step 44

Decompress the spring.
Step 45

Remove the assembled shock strut.
Step 46

Install the shock strut into the wheel arch.
Step 47

Screw the top fastening of the shock strut mount. Do not tighten it.

Replacement: suspension strut – Renault Scenic 2. Tip:
To avoid injuries, hold the shock strut when screwing the fastening bolts in.
Step 48

Treat the shock strut mounting seat on the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 49

Fix the shock absorber strut on the steering knuckle.
Step 50

Raise the hydraulic transmission jack by 10-15 cm.

Step 51

Remove the drive socket that is used for taking the shock absorber out of the steering knuckle.
Step 52

Treat the shock strut fasteners. Use WD-40 spray.
Step 53

Install and tighten a new bolt of the steering knuckle. Use a drive socket #18.
Step 54

Clean the ball joint mounting seat. Use a wire brush. Use WD-40 spray.
Step 55

Connect the ball joint to the steering knuckle.
Step 56

Remove the support from under the steering knuckle.

AUTODOC recommends:
Renault Scenic 2 – Do not lower the transmission jack sharply to avoid damaging components and mechanisms of the car.
Step 57

Install the fastening bolt.
Step 58

Tighten the ball joint fastener. Use a drive socket #17. Use a ratchet wrench. Use a torque wrench. Tighten it to 60 Nm torque.
Step 59

Tighten the lower fasteners connecting the shock strut to the steering knuckle. Use a drive socket #18. Use a torque wrench. Tighten it to 105 Nm torque.
Step 60

Connect the fastener of the ABS sensor cable to the shock absorber strut. Fasten the brake hose on the strut.
Step 61

Ιnstall the transverse stabilizer link.
Step 62

Tighten the fastener connecting the stabilizer link to the shock strut. Use a drive socket #17. Use a torque wrench. Tighten it to 44 Nm torque.
Step 63

Treat the shock strut fasteners. Use copper grease.
Step 64

Clean the wheel rim mounting seat. Use a wire brush. Treat the contacting surface. Use copper grease.
Step 65

Install the wheel.

Replacement: suspension strut – Renault Scenic 2. AUTODOC recommends:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 66

Screw in the wheel bolts. Use wheel impact socket #19.
Step 67

Tighten the upper fastener of the shock absorber strut mount. Use a drive socket #13. Use a torque wrench. Tighten it to 21 Nm torque.
Step 68

Treat the fasteners of the shock strut mount. Use copper grease.
Step 69

Install and secure the wiper cowl grille located on the right side.
Step 70

Screw in the fasteners of wiper cowl grille located on the right side. Use Torx T20.
Step 71

Install the wiper cowl grille on the left side.
Step 72

Screw in the fastener of the wiper cowl grille located on the left side. Use a drive socket #10.
Step 73

Install the rubber strip.
Step 74

Lower the car and working in a cross order, tighten the wheel bolts. Use a torque wrench. Tighten it to 110 Nm torque.
Step 75

Remove the fender protection cover.
Step 76

Close the hood.
Step 77

Remove the jacks and chocks.
