Important!
This replacement procedure can be used for:
VW SCIROCCO (137, 138) 2.0 R, VW SCIROCCO (137, 138) 2.0 TDI, VW SCIROCCO (137, 138) 1.4 TSI, VW SCIROCCO (137, 138) 1.4 TSI, VW SCIROCCO (137, 138) 2.0 TDI, VW SCIROCCO (137, 138) 2.0 TFSI, VW SCIROCCO (137, 138) 2.0 TDI, VW SCIROCCO (137, 138) 2.0 TSI, VW SCIROCCO (137, 138) 2.0 R, VW SCIROCCO (137, 138) 2.0 TDI, VW SCIROCCO (137, 138) 2.0 R … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

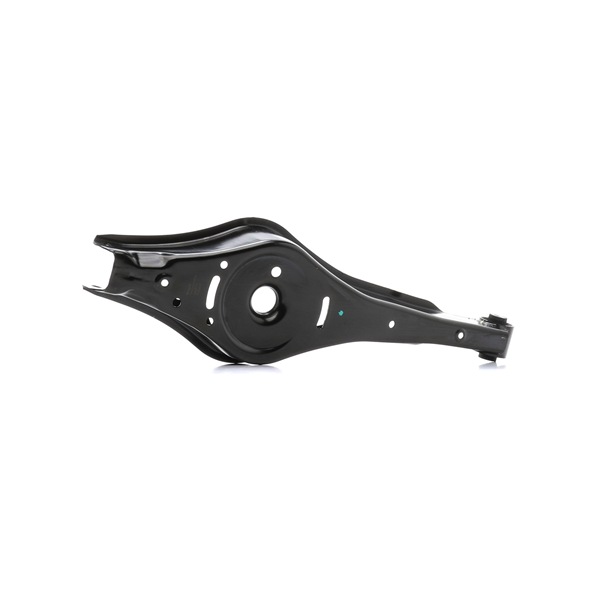

All the parts you need to replace – Control Arm for SCIROCCO (137, 138) and other VW models
How to change Suspension arm on Scirocco Mk3 1.4 TSI – step-by-step instructions for straightforward car repair Suspension arm
How to change Suspension arm on Scirocco III (137, 138) – tips for proper car maintenance
Suspension arm for Scirocco III (137, 138) Petrol (256 hp)
Simple DIY car repair steps – Replacing Suspension arm on Scirocco III (137, 138)
Suspension arm for Scirocco III (137, 138) Diesel (136 hp)
Easy tricks to help you to replace Suspension arm on Scirocco III (137, 138)
Suspension arm for Scirocco III (137, 138) Petrol (160 hp)
Suspension arm removal & installation, incredibly easy steps for Scirocco III (137, 138)
Suspension arm for Scirocco III (137, 138) Petrol (122 hp)
Changing Suspension arm on Scirocco III (137, 138) – tips for first time repair
Suspension arm for Scirocco III (137, 138) Diesel (140 hp)
Main steps for Suspension arm replacement on Scirocco III (137, 138)
Suspension arm for Scirocco III (137, 138) Petrol (200 hp)
How to change Suspension arm on Scirocco III (137, 138) – tips for proper car maintenance
Suspension arm for Scirocco III (137, 138) Diesel (170 hp)
Simple DIY car repair steps – Replacing Suspension arm on Scirocco III (137, 138)
Suspension arm for Scirocco III (137, 138) Petrol (210 hp)
Easy tricks to help you to replace Suspension arm on Scirocco III (137, 138)
Suspension arm for Scirocco III (137, 138) Petrol (265 hp)
Tools
Replacement: front lower arm – VW SCIROCCO (137, 138). Tools you need:
Wire brush
WD-40 spray
Copper grease
Combination spanner #18
Drive socket # 15
Drive socket # 18
Wheel impact socket #17
Ratchet wrench
Torque wrench
Tap wrench
Crow bar
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: front lower arm – VW SCIROCCO (137, 138). AUTODOC recommends:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: front lower arm – VW SCIROCCO (137, 138). Use the following procedure:
  1. Step 1
    How to change Control Arm on Scirocco Mk3 2008 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VW SCIROCCO (137, 138) 1.4 TSI 2009 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Raise the front of the car and secure on supports.
    Step 4
    Scirocco Mk3 2.0 TDI 2010 Control Arm replacement: free workshop manuals
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. VW SCIROCCO (137, 138)
  4. Step 5
    Changing Control Arm on VW SCIROCCO (137, 138) 2.0 R 2011 by yourself
    Remove the wheel.
  5. Step 6
    Clean all joints of the arm. Use a wire brush. Treat all joints of the arm. Use WD-40 spray.
    Replacement: front lower arm – VW SCIROCCO (137, 138). Tip:
    After applying the spray, wait a few minutes.Wear protective goggles.
    Step 7
    How to remove VW SCIROCCO 2.0 TSI 2012 Control Arm - online easy-to-follow instructions
    Unscrew the fasteners of the ball joint. Use a drive socket #15. Use a tap wrench.
  6. Step 8
    How to replace Control Arm on VW SCIROCCO (137, 138) 2013: download PDF manuals and video instructions
    Unscrew the rear fastener connecting the control arm to the subframe. Use a drive socket #15. Use a tap wrench.
  7. Step 9
    How hard is it to do yourself: Control Arm replacement on Scirocco Mk3 2.0 TDI 2014 - download illustrated guide
    Unscrew the rear fastener connecting the control arm to the car body. Use a drive socket #18. Use a tap wrench.
  8. Step 10
    Need to know how to renew Control Arm on VW SCIROCCO 2015? This free workshop manual will help you to do it yourself
    Unscrew the front arm fastener. Use a drive socket #15. Use a drive socket #18. Use a tap wrench.
  9. Step 11
    Changing of Control Arm on Scirocco Mk3 2016 won't be an issue if you follow this illustrated step-by-step guide
    Remove the arm. Use a crowbar.
  10. Step 12
    VW SCIROCCO 2.0 R Control Arm replacement: online guides and video tutorials
    Treat the fasteners of the ball joint. Use copper grease.
  11. Step 13
    Replacing Control Arm on Scirocco Mk3 2008 1.4 TSI by yourself
    Install a new arm.
    Replacement: front lower arm – VW SCIROCCO (137, 138). Tip from AUTODOC experts:
    During the installation process, use only new bolts and nuts.Do not damage the ball joint cover.
  12. Step 14
    SCIROCCO (137, 138) 2.0 TSI 2009 Control Arm DIY replacement workshop manual
    Install the front fastener of the arm. Do not tighten it.
  13. Step 15
    How to change Control Arm on VW SCIROCCO (137, 138) 2010 - tips and tricks
    Attach the ball joint to the control arm.
  14. Step 16
    Step-by-step recommendations for DIY replacement Scirocco Mk3 2011 2.0 TSI Control Arm
    Install the fasteners of the ball joint.
  15. Step 17
    DIY replacement of Control Arm on VW SCIROCCO (137, 138) 2.0 TFSI 2012 is not an issue anymore with our step-by-step tutorial
    Screw the fasteners of the ball joint. Use a drive socket #15. Use a ratchet wrench.
