How to carry out replacement: Control Arm 1.6 TDI VW Polo 5 Saloon
Disclaimer
Change VW Polo 5 Saloon 1.4 Control Arm yourself – manuals and video tutorials

How to change front lower arm on VW Polo 5 – replacement guide

downloads: 13
Views: 155
Download your free tutorial and fix VW Polo Saloon (602, 604, 612, 614) 1.6 TDI problems yourself Download for free 1.81 MB Control Arm for VW Polo 5 Saloon Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
VW Polo Saloon (602, 604, 612, 614) 1.6, VW Polo Saloon (602, 604, 612, 614) 1.6 … View more

The steps may slightly vary depending on the car design.

How to change front suspension arm / control arm on VW POLO 5 Saloon [TUTORIAL AUTODOC]

video
Published on: 26/05/2020
35K views

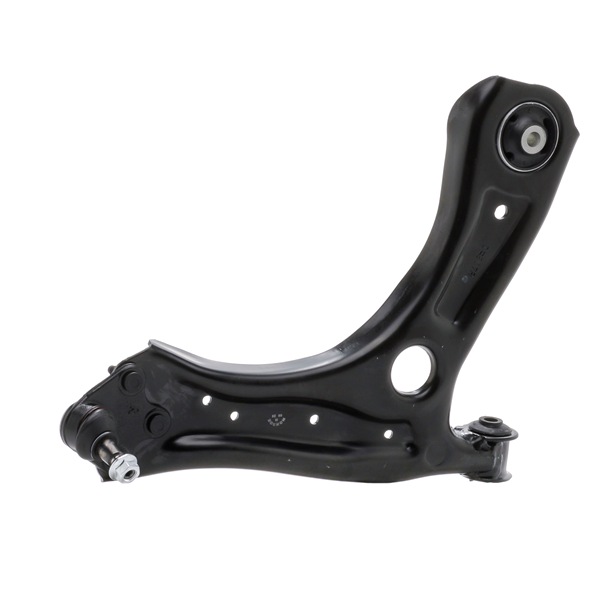

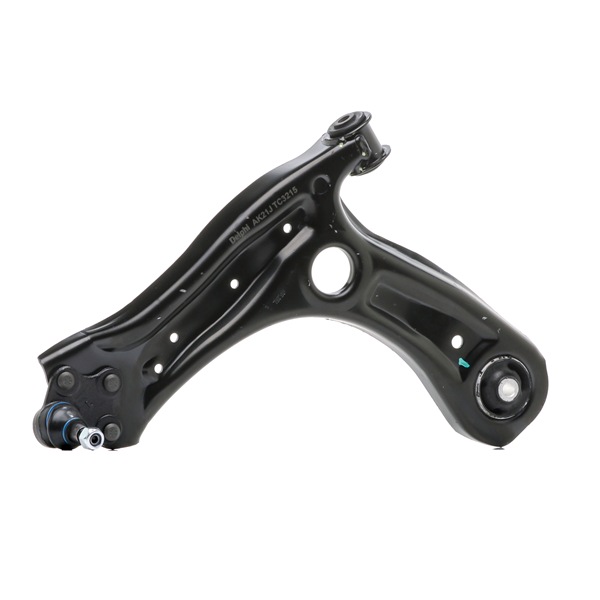

All the parts you need to replace – Control Arm for Polo Saloon (602, 604, 612, 614) and other VW models
Alternative products
How to change Suspension arm on VW Polo 5 Saloon 1.6 TDI – step-by-step instructions for straightforward car repair Suspension arm
Tools
Replacement: front lower arm – VW Polo 5. Tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #18
Drive socket # 16
Drive socket # 18
Wheel impact socket #17
Ratchet wrench
Torque wrench
Tap wrench
Crow bar
Rubber mallet
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: front lower arm – VW Polo 5. Tip from AUTODOC experts:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: front lower arm – VW Polo 5. Use the following procedure:
  1. Step 1
    How to change Control Arm on VW Polo 5 Saloon 2009 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace VW Polo Saloon (602, 604, 612, 614) 1.6 TDI 2010 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    VW Polo 5 Saloon 1.4 2011 Control Arm replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Control Arm on VW Polo Saloon (602, 604, 612, 614) 1.2 TSI 2012 by yourself
    Unscrew the wheel bolts.
    Replacement: front lower arm – VW Polo 5. AUTODOC recommends:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  5. Step 5
    How to remove VW POLO 1.6 2013 Control Arm - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Control Arm on VW Polo Saloon (602, 604, 612, 614) 2014: download PDF manuals and video instructions
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
    AUTODOC recommends:
    Replacement: front lower arm – VW Polo 5. After applying the spray, wait a few minutes.Wear protective goggles.
  7. Step 7
    How hard is it to do yourself: Control Arm replacement on VW Polo 5 Saloon 1.4 TSi 2015 - download illustrated guide
    Unscrew the front arm fastener. Use a drive socket #18. Use a tap wrench.
  8. Step 8
    Need to know how to renew Control Arm on VW POLO 2016? This free workshop manual will help you to do it yourself
    Unscrew the rear fastener connecting the control arm to the subframe. Use a combination spanner #18. Use a drive socket #18. Use a tap wrench.
  9. Step 9
    Changing of Control Arm on VW Polo 5 Saloon 2017 won't be an issue if you follow this illustrated step-by-step guide
    Remove the fastening bolts. Use a drive socket #18.
  10. Step 10
    VW POLO 1.4 Control Arm replacement: online guides and video tutorials
    Unscrew the fastener connecting the ball joint to the suspension control arm. Use a drive socket #16. Use a tap wrench.
  11. Step 11
    Replacing Control Arm on VW Polo 5 Saloon 2019 1.6 TDI by yourself
    Remove the arm. Use a crowbar.
  12. Step 12
    Polo Saloon (602, 604, 612, 614) 1.6 2020 Control Arm DIY replacement workshop manual
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
  13. Step 13
    How to change Control Arm on VW Polo Saloon (602, 604, 612, 614) 2021 - tips and tricks
    Install a new arm. Use a crowbar. Use a rubber mallet.
    Replacement: front lower arm – VW Polo 5. Tip:
    During the installation process, use only new bolts and nuts.
  14. Step 14
    Step-by-step recommendations for DIY replacement VW Polo 5 Saloon 2022 1.6 Control Arm
    Install the front fastener of the arm. Use a combination spanner #18.
  15. Step 15
    DIY replacement of Control Arm on VW Polo Saloon (602, 604, 612, 614) 1.2 TDI 2023 is not an issue anymore with our step-by-step tutorial
    Install the rear fastener of the arm. Use a crowbar.
  16. Step 16
    How to change Control Arm on VW Polo 5 Saloon 2009 - free PDF and video manuals
    Screw the fasteners of the ball joint. Use a drive socket #16. Use a ratchet wrench.
  17. Step 17
    How to replace VW Polo Saloon (602, 604, 612, 614) 1.6 TDI 2010 Control Arm - step-by-step manuals and video guides
    Screw the rear fastener connecting the control arm to the subframe. Use a combination spanner #18. Use a drive socket #18. Use a ratchet wrench.
