How to carry out replacement: Door Lock 1.9 TDI Passat 3b2
Disclaimer
Change Passat 3b2 1.9 TDI Door Lock yourself – manuals and video tutorials

How to change front door lock on VW PASSAT (3B2) – replacement guide

downloads: 8
Views: 102
Download your free tutorial and fix VW PASSAT (3B2) 1.9 TDI 4motion problems yourself Download for free 2.83 MB Door Lock for Passat 3b2 Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
VW PASSAT (3B2) 1.6, VW PASSAT (3B2) 1.8, VW PASSAT (3B2) 1.8 T, VW PASSAT (3B2) 2.3 VR5, VW PASSAT (3B2) 2.8 V6 Syncro/4motion, VW PASSAT (3B2) 1.9 TDI, VW PASSAT (3B2) 1.9 TDI, VW PASSAT (3B2) 2.8 V6, VW PASSAT (3B2) 1.8 Syncro/4motion, VW PASSAT (3B2) 1.9 TDI Syncro/4motion, VW PASSAT (3B2) 2.3 VR5 Syncro/4motion, VW PASSAT (3B2) 1.9 TDI, VW PASSAT (3B2) 2.5 TDI, VW PASSAT (3B2) 2.5 TDI Syncro/4motion, VW PASSAT (3B2) 1.9 TDI 4motion, VW PASSAT (3B2) 2.0, VW PASSAT (3B2) 2.0 4motion, VW PASSAT (3B2) 1.9 TDI, VW PASSAT (3B2) 1.8, VW PASSAT (3B2) 2.8 V6, VW PASSAT (3B2) 2.8 V6 … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

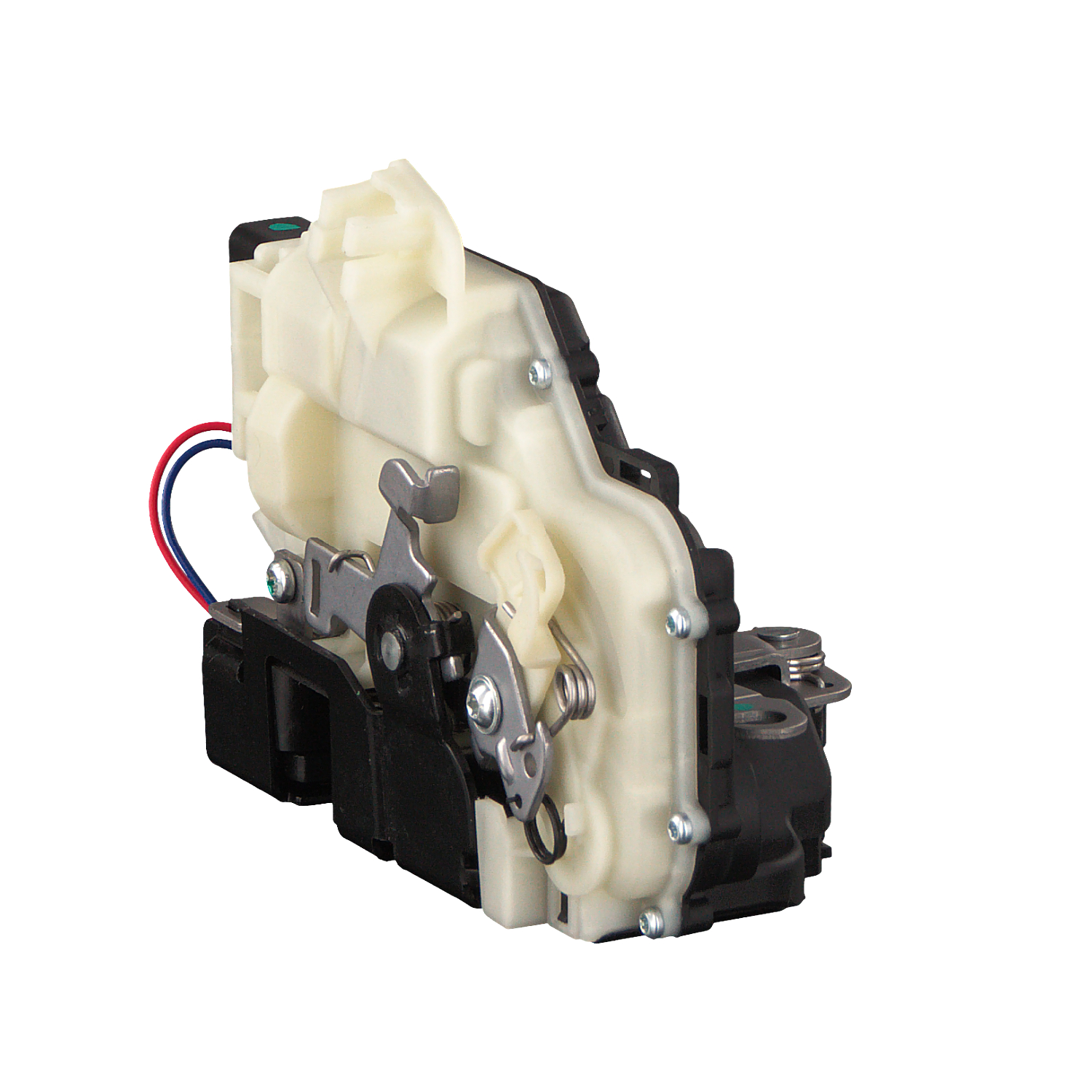

All the parts you need to replace – Door Lock for PASSAT (3B2) and other VW models
How to change Door lock on Passat 3b2 1.9 TDI – step-by-step instructions for straightforward car repair Door lock
How to change Door lock on Passat B5 Saloon (3B2) – tips for proper car maintenance
Door lock for Passat B5 Saloon (3B2) Petrol (101 hp)
Simple DIY car repair steps – Replacing Door lock on Passat B5 Saloon (3B2)
Door lock for Passat B5 Saloon (3B2) Petrol (125 hp)
Easy tricks to help you to replace Door lock on Passat B5 Saloon (3B2)
Door lock for Passat B5 Saloon (3B2) Petrol (150 hp)
Door lock removal & installation, incredibly easy steps for Passat B5 Saloon (3B2)
Door lock for Passat B5 Saloon (3B2) Petrol (150 hp)
Changing Door lock on Passat B5 Saloon (3B2) – tips for first time repair
Door lock for Passat B5 Saloon (3B2) Petrol (193 hp)
Main steps for Door lock replacement on Passat B5 Saloon (3B2)
Door lock for Passat B5 Saloon (3B2) Diesel (90 hp)
How to change Door lock on Passat B5 Saloon (3B2) – tips for proper car maintenance
Door lock for Passat B5 Saloon (3B2) Diesel (110 hp)
Simple DIY car repair steps – Replacing Door lock on Passat B5 Saloon (3B2)
Door lock for Passat B5 Saloon (3B2) Petrol (193 hp)
Easy tricks to help you to replace Door lock on Passat B5 Saloon (3B2)
Door lock for Passat B5 Saloon (3B2) Petrol (125 hp)
Tools
Replacement: door lock – VW PASSAT (3B2). Tools you might need:
Electronic spray
Torque wrench
Torx bit T20
Drive socket # 10
XZN socket bit # 8
Ratchet wrench
Painter's tape
Phillips screwdriver
Clip removal tool
Plastic trim tool
Buy tools
Replacement: door lock – VW PASSAT (3B2). Professionals recommend:
  • The procedure for replacing the locks on the right and left front doors is identical.
  • Please note: all work on the car – VW PASSAT (3B2) – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Door Lock on Passat 3b2 1996 - free PDF and video manuals
    Open the car door.
  2. Step 2
    How to replace VW PASSAT (3B2) 1.9 TDI 1997 Door Lock - step-by-step manuals and video guides
    Detach the door handle trim panel. Use a plastic trim tool.
    Replacement: door lock – VW PASSAT (3B2). AUTODOC recommends:
    Do not apply excessive force when removing the part. Otherwise you may damage it.
  3. Step 3
    Passat 3b2 1.8 T 1998 Door Lock replacement: free workshop manuals
    Unscrew the door card fasteners. Use a Phillips screwdriver.
  4. Step 4
    Changing Door Lock on VW PASSAT (3B2) 1.8 1999 by yourself
    Detach the door card. Use a plastic trim tool.
    AUTODOC recommends:
    Replacement: door lock – VW PASSAT (3B2). Do not use excessive force when removing the part as this may damage it.
  5. Step 5
    How to remove VW PASSAT 2.8 V6 Syncro/4motion 2000 Door Lock - online easy-to-follow instructions
    Detach the door lock actuator cable.
  6. Step 6
    How to replace Door Lock on VW PASSAT (3B2) 2001: download PDF manuals and video instructions
    Detach the bulb connector.
  7. Step 7
    How hard is it to do yourself: Door Lock replacement on Passat 3b2 2.3 VR5 1996 - download illustrated guide
    Detach the speaker connector.
  8. Step 8
    Need to know how to renew Door Lock on VW PASSAT 1997? This free workshop manual will help you to do it yourself
    Remove the covers from the window raiser fasteners. Use a plastic trim tool.
  9. Step 9
    Switch on the ignition.
    Step 10
    Changing of Door Lock on Passat 3b2 1998 won't be an issue if you follow this illustrated step-by-step guide
    Lower the window glass.
    AUTODOC recommends:
    Continue lowering the window glass until its fasteners become visible.
  10. Step 11
    Switch off the ignition.
    Step 12
    VW PASSAT 1.9 TDI Door Lock replacement: online guides and video tutorials
    Detach the connector for the power window switch module.
  11. Step 13
    Replacing Door Lock on Passat 3b2 2000 1.9 TDI by yourself
    Unscrew the window glass fasteners. Use a drive socket #10. Use a ratchet wrench.
    Replacement: door lock – VW PASSAT (3B2). Tip:
    To avoid injury, hold the glass when unscrewing the fasteners.
  12. Step 14
    PASSAT (3B2) 2.8 V6 Syncro/4motion 2001 Door Lock DIY replacement workshop manual
    Raise the window glass all the way up and secure it on the door frame with masking tape.
    AUTODOC recommends:
    To avoid injury, hold the glass when raising it.
  13. Step 15
    How to change Door Lock on VW PASSAT (3B2) 1996 - tips and tricks
    Detach the power mirror switch connector.
  14. Step 16
    Step-by-step recommendations for DIY replacement Passat 3b2 1997 2.8 V6 Syncro/4motion Door Lock
    Detach the speaker connector.
  15. Step 17
    DIY replacement of Door Lock on VW PASSAT (3B2) 1.6 1998 is not an issue anymore with our step-by-step tutorial
    Detach the power window connector.
  16. Step 18
    How to change Door Lock on Passat 3b2 1996 - free PDF and video manuals
    Detach the power window wiring harness. Use a clip removal tool.
  17. Step 19
    How to replace VW PASSAT (3B2) 1.9 TDI 1997 Door Lock - step-by-step manuals and video guides
    Remove the door panel covers. Use a plastic trim tool.
  18. Step 20
    Passat 3b2 1.8 T 1998 Door Lock replacement: free workshop manuals
    Unscrew the door panel fasteners. Use a drive socket #10. Use a ratchet wrench.
  19. Step 21
    Changing Door Lock on VW PASSAT (3B2) 1.8 1999 by yourself
    Unscrew the fastener of the exterior door handle. Use Torx T20. Use a ratchet wrench.
  20. Step 22
    How to remove VW PASSAT 2.8 V6 Syncro/4motion 2000 Door Lock - online easy-to-follow instructions
    Remove the cover from the exterior door handle fastener. Use a plastic trim tool.
    Replacement: door lock – VW PASSAT (3B2). Tip from AUTODOC experts:
    Do not apply excessive force when removing the part. Otherwise you may damage it.
  21. Step 23
    How to replace Door Lock on VW PASSAT (3B2) 2001: download PDF manuals and video instructions
    Unscrew the door lock fasteners. Use XZN #8. Use a ratchet wrench.
  22. Step 24
    How hard is it to do yourself: Door Lock replacement on Passat 3b2 2.3 VR5 1996 - download illustrated guide
    Remove the door panel together with the window regulator linkage.
    AUTODOC recommends:
    Replacement: door lock – VW PASSAT (3B2). To avoid damaging the part when removing it, do not use excessive force.
  23. Step 25
    Need to know how to renew Door Lock on VW PASSAT 1997? This free workshop manual will help you to do it yourself
    Detach the door lock connector.
  24. Step 26
    Changing of Door Lock on Passat 3b2 1998 won't be an issue if you follow this illustrated step-by-step guide
    Remove the handle-to-lock cable. Use a plastic trim tool.
  25. Step 27
    VW PASSAT 1.9 TDI Door Lock replacement: online guides and video tutorials
    Remove the door lock.
    AUTODOC recommends:
    Do not apply excessive force when removing the part. Otherwise you may damage it.
  26. Step 28
    Replacing Door Lock on Passat 3b2 2000 1.9 TDI by yourself
    Remove the handle-to-lock cable.
  27. Step 29
    PASSAT (3B2) 2.8 V6 Syncro/4motion 2001 Door Lock DIY replacement workshop manual
    Install the handle-to-lock cable.
  28. Step 30
    How to change Door Lock on VW PASSAT (3B2) 1996 - tips and tricks
    Remove the door lock rod.
  29. Step 31
    Step-by-step recommendations for DIY replacement Passat 3b2 1997 2.8 V6 Syncro/4motion Door Lock
    Install the door lock rod on the new lock.
  30. Step 32
    DIY replacement of Door Lock on VW PASSAT (3B2) 1.6 1998 is not an issue anymore with our step-by-step tutorial
    Remove the handle-to-lock cable.
  31. Step 33
    How to change Door Lock on Passat 3b2 1996 - free PDF and video manuals
    Install the handle-to-lock cable.
  32. Step 34
    How to replace VW PASSAT (3B2) 1.9 TDI 1997 Door Lock - step-by-step manuals and video guides
    Install the new lock.
    Replacement: door lock – VW PASSAT (3B2). AUTODOC experts recommend:
    When installing, do not use excessive force to avoid damage to the part.
  33. Step 35
    Passat 3b2 1.8 T 1998 Door Lock replacement: free workshop manuals
    Install the handle-to-lock cable. Use a plastic trim tool.
  34. Step 36
    Changing Door Lock on VW PASSAT (3B2) 1.8 1999 by yourself
    Install the cover on the exterior door handle fastener.
  35. Step 37
    How to remove VW PASSAT 2.8 V6 Syncro/4motion 2000 Door Lock - online easy-to-follow instructions
    Screw in the exterior door handle fastener. Use Torx T20. Use a ratchet wrench.
  36. Step 38
    How to replace Door Lock on VW PASSAT (3B2) 2001: download PDF manuals and video instructions
    Install the door panel together with the window regulator linkage.
  37. Step 39
    How hard is it to do yourself: Door Lock replacement on Passat 3b2 2.3 VR5 1996 - download illustrated guide
    Treat the door lock connector. Use dielectric grease.
  38. Step 40
    Need to know how to renew Door Lock on VW PASSAT 1997? This free workshop manual will help you to do it yourself
    Attach the door lock connector.
