Important!

This replacement procedure can be used for:
AUDI A3 Sportback (8PA) 1.2 TSI … View more

The steps may slightly vary depending on the car design.

How to change front springs / front coil springs on AUDI A3 2 (8P1) [TUTORIAL AUTODOC]

All the parts you need to replace – Springs for A3 Sportback (8PA) and other AUDI models

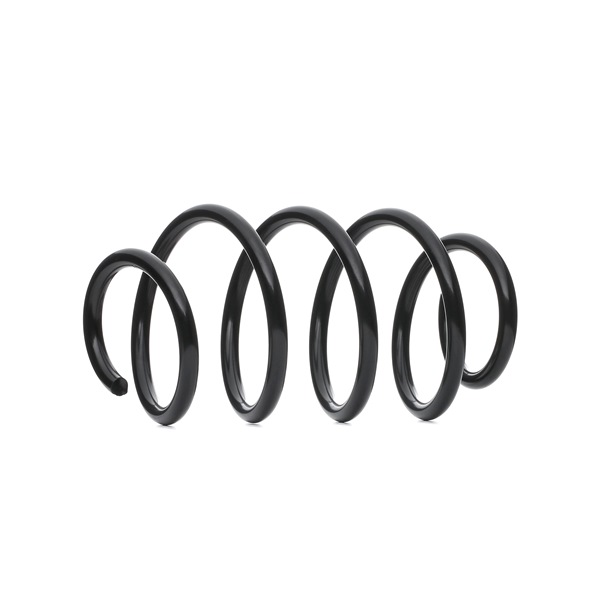

Coil spring

Supplementary Spring

Coil spring buffer

How to change Coil spring on AUDI A3 Sportback (8PA) 1.2 TSI – tips for proper car maintenance

Coil spring for AUDI A3 Sportback (8PA) 1.2 TSI Petrol (105 hp)

Replacement: coil springs – Audi A3 8PA. Tools you might need:

                        Wire brush

                        WD-40 spray

                        Brake cleaner

                        Copper grease

                        HEX bit No.H6.

                        HEX bit No.H7.

                        XZN socket bit # 14

                        Drive socket # 13

                        Drive socket # 16

                        Drive socket # 18

                        Drive socket # 21

                        Drive socket # 24

                        Wheel impact socket #17

                        Ratchet wrench

                        Torque wrench

                        Tap wrench

                        Shock absorber socket

                        Hydraulic strut spring compressor

                        Hydraulic transmission jack

                        Fender cover

                        Wheel chock

Buy tools

Replacement: coil springs – Audi A3 8PA. AUTODOC experts recommend:

Both coil springs of the front suspension should be replaced simultaneously.
The replacement procedure is identical for the left and right coil springs of the front suspension.
All work should be done with the engine stopped.

Replacement: coil springs – Audi A3 8PA. Use the following procedure:

Step 1

Open the bonnet.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3

Remove the cowl grille seal.
Step 4

Raise up and remove the cowl grille.
Step 5

Clean the fasteners of the shock strut upper mount. Use a wire brush. Use WD-40 spray.
Step 6

Loosen the upper fastener of the shock strut mount. Use a drive socket #13. Use a ratchet wrench.
Step 7

Secure the wheels with chocks.
Step 8

Loosen the fastener of the driveshaft. Use a drive socket #24. Use a tap wrench.
Step 9

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 10

Raise the front of the car and secure on supports.
Step 11

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. Audi A3 8PA
Step 12

Remove the wheel.
Step 13

Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
Step 14

Unscrew the fastener connecting the stabilizer link to the shock strut. Use a drive socket #18. Use a ratchet wrench.
Step 15

Remove the stabilizer rod.
Step 16

Clean the fasteners connecting the shock strut to the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 17

Unscrew the lower fastener connecting the shock strut to the steering knuckle. Use XZN #14. Use a drive socket #18. Use a tap wrench. Use a ratchet wrench.
Step 18

Remove the fastening bolt.
Step 19

Unscrew the fastener connecting the drive shaft to the wheel hub. Use a drive socket #24. Use a ratchet wrench.
Step 20

Remove the fastening bolt.
Step 21

Clean all joints of the arm. Use a wire brush. Use WD-40 spray.

Replacement: coil springs – Audi A3 8PA. Tip from AUTODOC:
After applying the spray, wait a few minutes.Wear protective goggles.
Step 22

Unscrew the fastener connecting the ball joint to the suspension control arm. Use a drive socket #16. Use a ratchet wrench.
Step 23

Disconnect the spherical joint from the arm.
Step 24

Remove the drive shaft.
Step 25

Prop up the steering knuckle. Use a hydraulic transmission jack.
Step 26

Release the lower fastener connecting the shock strut to the steering knuckle. Use a special drive socket to remove the shock absorber. Use a ratchet wrench.
Step 27

Disconnect the steering knuckle from the shock absorber strut.
Step 28

Unscrew the top fastening of the shock strut mount.

AUTODOC recommends:
Audi A3 8PA – To avoid injury, hold the suspension strut while unscrewing the fastening bolts.
Step 29

Remove the suspension strut.
Step 30

Set the shock absorber strut on the spring compressor tool.

Replacement: coil springs – Audi A3 8PA. Professionals recommend:
Note that when using a spring compressor, spring coils need to be securely gripped, compressing the spring on the opposite sides.Ensure the correct position of the spring in the retainer.Make sure that the spring coils tightly entered the lock handles.
Step 31

Compress the spring.
Step 32

Treat the shock strut rod. Use a wire brush. Use WD-40 spray.
Step 33

Remove the strut piston rod nut. Use HEX No.H7. Use a drive socket #21. Use a ratchet wrench.
Step 34

Remove the shock absorber mount, boot and bump stop.

AUTODOC recommends:
Replacement: coil springs – Audi A3 8PA. Carefully inspect the mount, the boot, and the bump stop of the shock absorber. Replace if necessary.
Step 35

Release the coil spring.
Step 36

Remove the spring.
Step 37

Install the spring on the shock absorber.
Step 38

Compress the spring.
Step 39

Install the mount, the boot and the bump stop on the shock absorber.
Step 40

Tighten the shock strut piston rod nut. Use HEX No.H6. Use a drive socket #21. Use a torque wrench. Tighten it to 60 Nm torque.

Replacement: coil springs – Audi A3 8PA. Tip:
Check to make sure the spring is positioned correctly. Avoid its misalignment.
Step 41

Treat the shock strut rod. Use copper grease.
Step 42

Decompress the spring.
Step 43

Remove the assembled shock strut.
Step 44

Treat the mounting seats of the shock strut. Use a wire brush. Use WD-40 spray.
Step 45

Install the shock strut into the wheel arch.
Step 46

Screw the top fastening of the shock strut mount. Do not tighten it.

AUTODOC recommends:
Important! Hold the suspension strut while screwing in the fastening bolts. Audi A3 8PA
Step 47

Treat the shock strut mounting seat on the steering knuckle. Use a wire brush. Use WD-40 spray.
Step 48

Fix the shock absorber strut on the steering knuckle.
Step 49

Install the fastening bolt.
Step 50

Clean the splines of the drive shaft CV joint. Use a wire brush. Use WD-40 spray.
Step 51

Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
Step 52

Remove the support from under the steering knuckle.

AUTODOC recommends:
Replacement: coil springs – Audi A3 8PA. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
Step 53

Mount the drive shaft into the wheel hub.
Step 54

Attach the ball joint to the control arm.
Step 55

Screw the fasteners of the ball joint. Use a drive socket #16. Use a ratchet wrench.
Step 56

Install and tighten the drive shaft bolt. Use a drive socket #24. Use a ratchet wrench.
Step 57

Screw in the fastener that connects the shock strut to the steering knuckle. Use a drive socket #18. Use XZN #14. Use a ratchet wrench.
Step 58

Ιnstall the transverse stabilizer link.
Step 59

Tighten the stabiliser link fastener. Use a drive socket #18. Use a ratchet wrench.
Step 60

Tighten the lower fasteners connecting the shock strut to the steering knuckle. Use a drive socket #18. Use a torque wrench. Tighten it to 70 Nm torque.+90°

AUTODOC recommends:
Important! Be sure to use new fasteners.
Step 61

Tighten the fastener connecting the stabilizer link to the shock strut. Use a drive socket #18. Use a torque wrench. Tighten it to 65 Nm torque.
Step 62

Tighten the ball joint fastener. Use a drive socket #16. Use a torque wrench. Tighten it to 60 nm torque.
Step 63

Treat the shock strut fasteners. Treat all joints of the arm. Use copper grease.
Step 64

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 65

Clean the brake disk surface. Use a brake cleaner.

Replacement: coil springs – Audi A3 8PA. Tip from AUTODOC:
After applying the spray, wait a few minutes.
Step 66

Install the wheel.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. Audi A3 8PA
Step 67

Screw in the wheel bolts. Use wheel impact socket #17.
Step 68

Lower the car.

Step 69

Tighten the bolt connecting the drive shaft to the wheel hub. Use a drive socket #24. Use a torque wrench. Tighten it to 200 Nm torque.+180°

AUTODOC recommends:
Important! Be sure to use new fasteners.
Step 70

Tighten the wheel bolts using a criss-cross pattern. Use wheel impact socket #17. Use a torque wrench. Tighten it to 120 Nm torque.
Step 71

Remove the jacks and chocks.
Step 72

Tighten the upper fastener of the shock absorber strut mount. Use a drive socket #13. Use a torque wrench. Tighten it to 15 Nm torque.+90°

AUTODOC recommends:
Important! Be sure to use new fasteners.
Step 73

Install and secure the cowl grille.
Step 74

Install the cowl grille seal.
Step 75

Remove the fender protection cover.
Step 76

Close the hood.
