Recommended replacement interval for the part category Brake pad set : 30000 km

Important!

This replacement procedure can be used for:
MERCEDES-BENZ 190 (W201) E 1.8 (201.018), MERCEDES-BENZ 190 (W201) 2.0 (201.022), MERCEDES-BENZ 190 (W201) E 2.0 (201.024), MERCEDES-BENZ 190 (W201) E 2.0 (201.024), MERCEDES-BENZ 190 (W201) 2.0 (201.023), MERCEDES-BENZ 190 (W201) 2.0 (201.023), MERCEDES-BENZ 190 (W201) E 2.0, MERCEDES-BENZ 190 (W201) E 2.0 (201.024), MERCEDES-BENZ 190 (W201) D 2.0 (201.122), MERCEDES-BENZ 190 (W201) D 2.0 (201.122), MERCEDES-BENZ 190 (W201) D 2.5 (201.126), MERCEDES-BENZ 190 (W201) D 2.5 (201.126), MERCEDES-BENZ 190 (W201) E 2.0, MERCEDES-BENZ 190 (W201) 2.3 E, MERCEDES-BENZ 190 (W201) 2.6 … View more

The steps may slightly vary depending on the car design.

How to change front brake disc and pads set on MERCEDES W201 [TUTORIAL AUTODOC]

All the parts you need to replace – Brake Pads for 190 (W201) and other MERCEDES-BENZ models

Alternative products

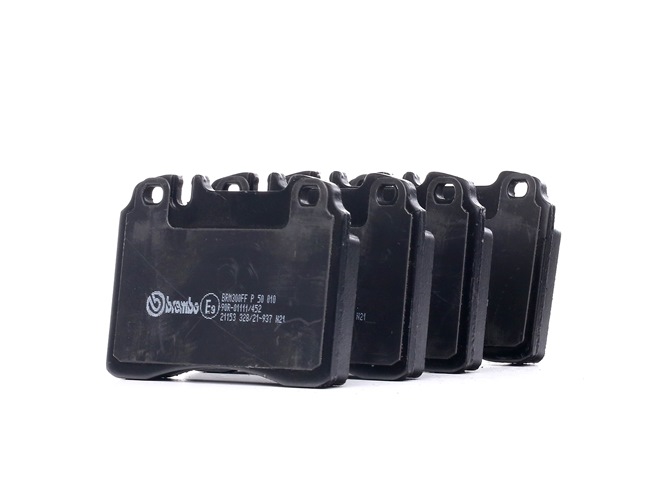

Brake pad set

Replacement: brake pads – Mercedes W201. List of the tools you'll need:

                      Wire brush

                      Nylon cleaning brush

                      WD-40 spray

                      Brake cleaner

                      Dielectric grease

                      Anti-squeal paste

                      Ceramic grease

                      Torque wrench

                      Combination spanner #13

                      Combination spanner #15

                      Drive socket # 13

                      Drive socket # 19

                      HEX bit No.H5

                      Wheel impact socket #17

                      Ratchet wrench

                      Tap wrench

                      Crow bar

                      Brake caliper wind back tool

                      Wheel chock

Buy tools

Replacement: brake pads – Mercedes W201. AUTODOC recommends:

Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
The replacement procedure is identical for all brake pads on the same axle.
All work should be done with the engine stopped.

Replacement: brake pads – Mercedes W201. Recommended sequence of steps:

Step 1

Open the bonnet.
Step 2

Unscrew the brake fluid reservoir cap.
Step 3

Secure the wheels with chocks.

Step 4

Loosen the wheel bolts. Use wheel impact socket #17. Use a tap wrench.
Step 5

Raise the car.

Replacement: brake pads – Mercedes W201. Tip:
If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
Step 6

Unscrew the wheel bolts.

AUTODOC recommends:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 7

Remove the wheel.
Step 8

Detach the connector of the brake pad wear sensor.

Step 9

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 10

Unscrew the brake caliper fasteners. Use a combination spanner #15. Use a combination spanner #13.
Step 11

Detach the brake pad wear sensor wiring harness.
Step 12

Spread the brake pads. Use a crowbar.
Step 13

Remove the fastening bolts.
Step 14

Remove the brake caliper.

Replacement: brake pads – Mercedes W201. AUTODOC experts recommend:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
Step 15

Remove the brake pads.

AUTODOC recommends:
Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
Step 16

Clean the brake caliper bracket of dirt and dust. Use a wire brush. Use a brake cleaner.

AUTODOC recommends:
Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 17

Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.
Step 18

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 19

Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.

Replacement: brake pads – Mercedes W201. AUTODOC recommends:
Make sure the disc surface is clean before installing the pads.
Step 20

Install new brake pads.
Step 21

Install the brake caliper and fasten it.
Step 22

Install the fastening bolts.
Step 23

Tighten the brake caliper fasteners. Use a combination spanner #15. Use a drive socket #13. Use a torque wrench. Tighten it to 35 Nm torque.
Step 24

Treat the brake pad wear sensor plug. Use dielectric grease.
Step 25

Attach the connector of the brake pad wear sensor.
Step 26

Attach the brake pad wear sensor wiring harness.
Step 27

Treat the surface where the brake disc contacts the wheel rim. Use ceramic grease.
Step 28

Clean the brake disk surface. Use a brake cleaner.
Step 29

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. Mercedes W201
Step 30

Screw in the wheel bolts. Use wheel impact socket #17. Use a ratchet wrench.
Step 31

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 110 Nm torque.
Step 32

Remove the jacks and chocks.

AUTODOC recommends:
Without starting the engine, press the brake pedal several times until you feel significant resistance.Check the brake fluid level in the expansion tank and top up if necessary.
Step 33

Tighten the brake fluid reservoir cap.
Step 34

Close the bonnet.

Replacement: brake pads – Mercedes W201. Tip from AUTODOC experts:
Slow down smoothly for first 150-200 km after the brake pads replacement. Avoid unneccessary and sharp braking to a stop.
