How to change rear wheel bearing on VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) – replacement guide
downloads:
10
Views:
229
Important!
This replacement procedure can be used for:
VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.2 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 TDI … View more
The steps may slightly vary depending on the car design.
VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.2 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.4 TSI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 1.6 TDI, VW Golf VII Hatchback (5G1, BQ1, BE1, BE2) 2.0 TDI … View more
The steps may slightly vary depending on the car design.
This video shows the replacement procedure of a similar car part on another vehicle

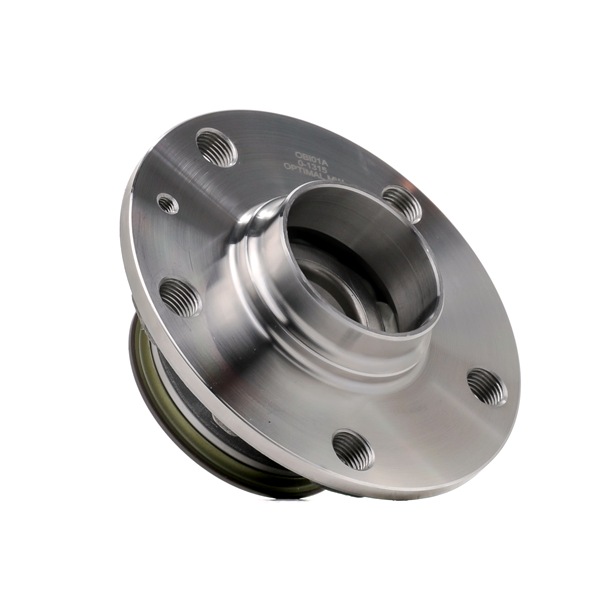

All the parts you need to replace – Wheel Bearing for Golf VII Hatchback (5G1, BQ1, BE1, BE2) and other VW models
Alternative products
Wire brush
Nylon cleaning brush
WD-40 spray
Brake cleaner
All-purpose cleaning spray
Anti-squeal paste
Ceramic grease
Torque wrench
Combination spanner #13
Combination spanner #15
XZN socket bit #14
XZN socket bit #18
Torx bit T30
Wheel impact socket #17
Ratchet wrench
Tap wrench
Impact screwdriver
Rubber mallet
Brake caliper wind back tool
Crow bar
Hydraulic transmission jack
Wheel chock
AUTODOC recommends:
- Do not re-use the bearing assembly of your VW GOLF VII (5G1, BE1) car.
- The wheel hub bearing replacement procedure is identical for both wheels on the same axle.
- Please note: all work on the car – VW GOLF VII (5G1, BE1) – should be done with the engine switched off.
Carry out replacement in the following order:
- Step 1Open the bonnet. Unscrew the brake fluid reservoir cap.Step 2Secure the wheels with chocks.Step 3
Loosen the wheel mounting bolts. Use wheel impact socket #17. - Step 4Raise the car.AUTODOC recommends:If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.Step 5
Unscrew the wheel bolts.AUTODOC recommends:Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. VW GOLF VII (5G1, BE1) - Step 6
Remove the wheel. - Step 7
Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray. - Step 8
Unscrew the brake caliper fasteners. Use a combination spanner #13. Use a combination spanner #15. - Step 9
Remove the fastening bolts. - Step 10
Remove the brake caliper. Use a crowbar.Replacement: wheel bearing – VW GOLF VII (5G1, BE1). Tip from AUTODOC experts:Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. - Step 11
Remove the brake pads. - Step 12
Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray. - Step 13
Unscrew the brake caliper bracket fasteners. Use XZN #14. Use a ratchet wrench. - Step 14
Remove the fastening bolts. - Step 15
Remove the caliper bracket. - Step 16
Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray. - Step 17
Unscrew the brake disc fastening. Use Torx T30. Use an impact screwdriver. - Step 18
Remove the brake disc. - Step 19
Remove the hub bearing protection cap. Use a crowbar. Use a rubber mallet. - Step 20
Support the control arm. Use a hydraulic transmission jack. - Step 21
Unscrew the wheel hub axle nut. Use XZN #18. Use a tap wrench. - Step 22
Remove the fastening bolt. - Step 23
Remove the hub and the bearing together, since they are a sealed unit. - Step 24
Clean the hub bearing mounting seat. Use a wire brush. Use all-purpose cleaning spray. - Step 25
Install the new wheel hub with a bearing. - Step 26
Install the fastening bolt. - Step 27
Tighten the hub. Use XZN #18. Use a torque wrench. Tighten it to 180 nm torque. - Step 28
Install the hub bearing protection cap. Use a rubber mallet. - Step 29
Remove the support from under the control arm.AUTODOC recommends:VW GOLF VII (5G1, BE1) – Do not lower the transmission jack sharply to avoid damaging components and mechanisms of the car. - Step 30
Treat the hub where it contacts the brake disk. Use ceramic grease.
