Recommended replacement interval for the part category Brake disc : 50000 km

Important!

This replacement procedure can be used for:
PEUGEOT 3008 (0U_) 1.6 VTi, PEUGEOT 3008 (0U_) 1.6 HDi, PEUGEOT 3008 (0U_) 1.6 HDi, PEUGEOT 3008 (0U_) 1.6 HDi, PEUGEOT 3008 (0U_) 1.6 BlueHDi, PEUGEOT 3008 (0U_) 1.2, PEUGEOT 3008 (0U_) 1.6 HDi / BlueHDi … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

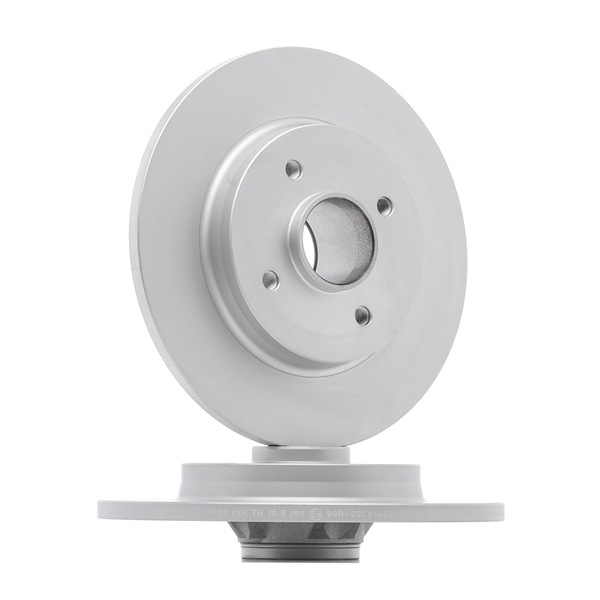

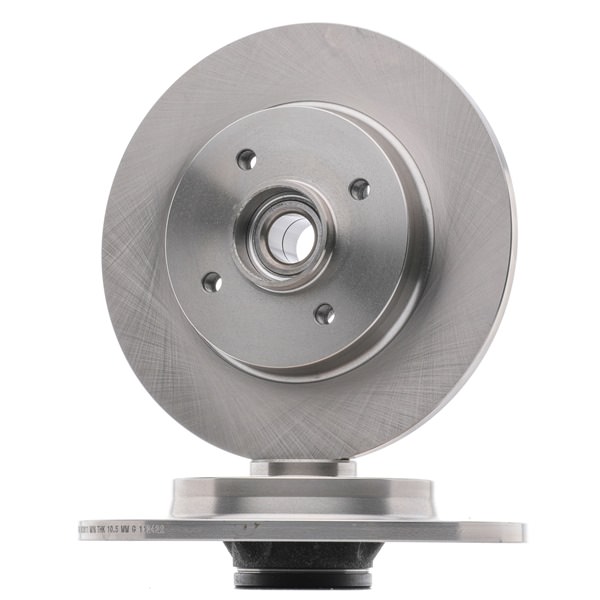

Alternative products

Brake disc

Replacement: brake discs – PEUGEOT 3008. List of the tools you'll need:

                      Wire brush

                      Nylon cleaning brush

                      WD-40 spray

                      Brake cleaner

                      Brake caliper guide pins grease

                      Copper grease

                      Torque wrench

                      Combination spanner #13

                      Drive socket # 13

                      Torx bit T30

                      Torx bit T55

                      Wheel impact socket #17

                      Brake caliper wind back tool

                      Ratchet wrench

                      Tap wrench

                      Impact screwdriver

                      Crow bar

                      Wheel chock

Buy tools

Replacement: brake discs – PEUGEOT 3008. AUTODOC experts recommend:

Replace the brake disks on the car PEUGEOT 3008 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
The replacement procedure is identical for both brake disks on the same axle.
When changing the brake discs, always replace the brake pads.
All work should be done with the engine stopped.

Replacement: brake discs – PEUGEOT 3008. Use the following procedure:

Step 1

Open the bonnet. Unscrew the brake fluid reservoir cap.

Step 2

Secure the wheels with chocks.

Step 3

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 4

Raise the front of the car and secure on supports.

Step 5

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. PEUGEOT 3008
Step 6

Remove the wheel.
Step 7

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 8

Unscrew the brake caliper fastening. Use a combination spanner #13.
Step 9

Spread the brake pads. Use a crowbar.
Step 10

Remove the brake caliper.

Replacement: brake discs – PEUGEOT 3008. Tip from AUTODOC experts:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
Step 11

Remove the brake pads. Use a crowbar.
Step 12

Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
Step 13

Unscrew the caliper bracket fastening. Use Torx T55. Use a tap wrench. Use a ratchet wrench.
Step 14

Remove the caliper bracket.
Step 15

Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
Step 16

Unscrew the brake disc fastening. Use Torx T30. Use an impact screwdriver.
Step 17

Remove the brake disc.
Step 18

Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
Step 19

Install the brake disc.
Step 20

Tighten the brake disc fastening. Use Torx T30. Use a torque wrench. Tighten it to 9 Nm torque.
Step 21

Clean the brake disk surface. Use a brake cleaner.

Replacement: brake discs – PEUGEOT 3008. Tip:
After applying the spray, wait a few minutes.
Step 22

Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.

AUTODOC recommends:
After applying the spray, wait a few minutes.
Step 23

Treat the brake caliper guide pins. Use the brake caliper guide pin grease.
Step 24

Install the brake caliper bracket.
Step 25

Tighten the brake caliper bracket. Use Torx T55. Use a torque wrench. Tighten it to 105 Nm torque.
Step 26

Install the brake pads.
Step 27

Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.

Replacement: brake discs – PEUGEOT 3008. AUTODOC recommends:
After applying the spray, wait a few minutes.
Step 28

Press in the brake caliper piston. Use brake caliper wind back tool.
Step 29

Install the brake caliper and fix it. Use a drive socket #13. Use a torque wrench. Tighten it to 30 Nm torque.
Step 30

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 31

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
After applying the spray, wait a few minutes.
Step 32

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. PEUGEOT 3008
Step 33

Screw in the wheel bolts. Use wheel impact socket #17.
Step 34

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 100 Nm torque.
Step 35

Remove the jacks and chocks.

Replacement: brake discs – PEUGEOT 3008. Professionals recommend:
Check the brake fluid level in the expansion tank and refill if necessary.
Step 36

Tighten the brake fluid reservoir cap. Close the hood.

AUTODOC recommends:
Without starting the engine, press the brake pedal several times until you feel significant resistance.
