How to carry out replacement: Brake Calipers 1.4 16V Golf 4
Disclaimer
Change Golf 4 1.6 16V Brake Calipers yourself – manuals and video tutorials

How to change front brake caliper on VW Golf 4 – replacement guide

downloads: 11
Views: 106
Download your free tutorial and fix VW Golf IV Hatchback (1J1) 1.6 problems yourself Download for free 2.15 MB Brake Calipers for Golf 4 Shop now
Leave a comment Open in a new tab
When to replace the Brake Calipers on your VW GOLF
Recommended replacement interval for the part category Brake caliper : 100000 km
Important!
This replacement procedure can be used for:
VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.6, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 SDI, VW Golf IV Hatchback (1J1) 1.4 16V, VW Golf IV Hatchback (1J1) 1.8, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.8 4motion, VW Golf IV Hatchback (1J1) 2.8 VR6 4motion, VW Golf IV Hatchback (1J1) 2.0, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.6 16V, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 2.3 V5, VW Golf IV Hatchback (1J1) 2.3 V5 4motion, VW Golf IV Hatchback (1J1) 2.0 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.8 T GTI, VW Golf IV Hatchback (1J1) 1.6 FSI, VW Golf IV Hatchback (1J1) 3.2 R32 4motion, VW Golf IV Hatchback (1J1) 1.6, VW Golf IV Hatchback (1J1) 2.0 BiFuel … View more

The steps may slightly vary depending on the car design.

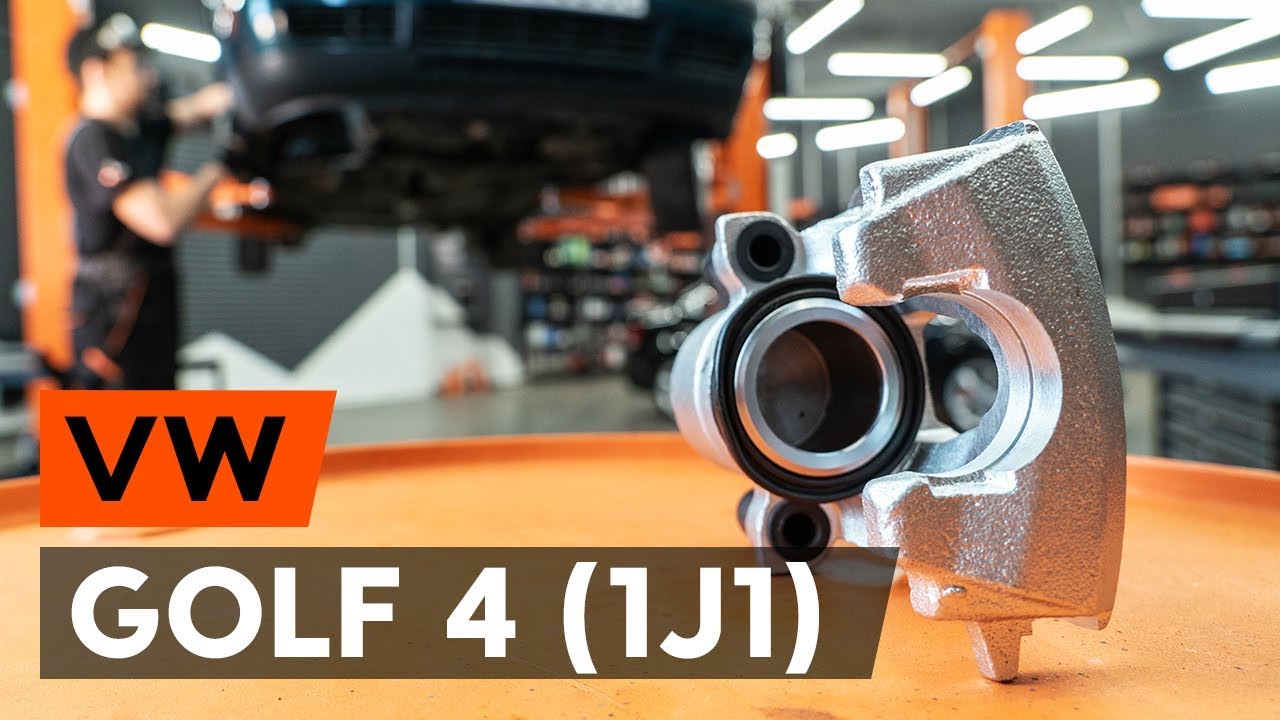

How to change front brake caliper on VW GOLF 4 (1J1) [TUTORIAL AUTODOC]

video
Published on: 25/09/2019
5K views
All the parts you need to replace – Brake Calipers for Golf IV Hatchback (1J1) and other VW models
Alternative products
How to change Brake caliper on Golf 4 1.4 16V – step-by-step instructions for straightforward car repair Brake caliper
Tools
Replacement: brake caliper – VW Golf 4. Tools you need:
Wire brush
Brake cleaner
Anti-squeal paste
Copper grease
Combination spanner #10
HEX bit No.H7
Drive socket # 11
Drive socket # 13
Wheel impact socket #17
Ratchet wrench
Torque wrench
Brake hose clip
Brake bleeder kit
Crow bar
Wheel chock
Buy tools
Replacement: brake caliper – VW Golf 4. Tip from AUTODOC:
  • The replacement procedure is identical for the left and right brake calipers on the same axle.
  • Please note: all work on the car – VW Golf 4 – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    How to change Brake Calipers on Golf 4 1997 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    Secure the wheels with chocks.
    Step 3
    How to replace VW Golf IV Hatchback (1J1) 1.4 16V 1998 Brake Calipers - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 4
    Golf 4 1.6 1999 Brake Calipers replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 5
    Changing Brake Calipers on VW Golf IV Hatchback (1J1) 1.9 TDI 2000 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. VW Golf 4
  5. Step 6
    How to remove VW GOLF 1.8 T 2001 Brake Calipers - online easy-to-follow instructions
    Remove the wheel.
  6. Step 7
    How to replace Brake Calipers on VW Golf IV Hatchback (1J1) 2002: download PDF manuals and video instructions
    Spread the brake pads. Use a crowbar.
  7. Step 8
    How hard is it to do yourself: Brake Calipers replacement on Golf 4 1.4 16V 2003 - download illustrated guide
    Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
  8. Step 9
    Need to know how to renew Brake Calipers on VW GOLF 2004? This free workshop manual will help you to do it yourself
    Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench.
  9. Step 10
    Changing of Brake Calipers on Golf 4 2005 won't be an issue if you follow this illustrated step-by-step guide
    Remove the brake caliper.
    Replacement: brake caliper – VW Golf 4. AUTODOC experts recommend:
    When replacing the brake caliper, it is recommended to check the brake hose for damages and, if necessary, to replace it with a new one. When replacing a brake caliper it is recommended to replace brake pads, check the state of the brake discs and replace them with new ones if necessary.
  10. Step 11
    VW GOLF 1.6 16V Brake Calipers replacement: online guides and video tutorials
    Remove the brake pads. Use a crowbar.
  11. Step 12
    Replacing Brake Calipers on Golf 4 1998 1.4 16V by yourself
    Clean the area where the brake hose is connected to the caliper, and the guide pins area. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake caliper – VW Golf 4. After applying the spray, wait a few minutes.
  12. Step 13
    Golf IV Hatchback (1J1) 1.8 T 1999 Brake Calipers DIY replacement workshop manual
    Clamp the brake hose off using a brake hose clamp.
  13. Step 14
    How to change Brake Calipers on VW Golf IV Hatchback (1J1) 2000 - tips and tricks
    Unscrew the brake hose from the brake caliper. Use a drive socket #13. Use a ratchet wrench.
    AUTODOC recommends:
    Move the brake hose aside. Tie the brake hose to the car body with a hook or a piece of wire.
  14. Step 15
    Step-by-step recommendations for DIY replacement Golf 4 2001 1.8 T Brake Calipers
    Screw in the guide pins.
    Replacement: brake caliper – VW Golf 4. Tip:
    If no new guide pins were supplied in a kit with the new brake calipers, use the old pins.
  15. Step 16
    DIY replacement of Brake Calipers on VW Golf IV Hatchback (1J1) 1.6 16V 2002 is not an issue anymore with our step-by-step tutorial
    Install the brake pads.
    Replacement: brake caliper – VW Golf 4. AUTODOC experts recommend:
    If going to use the old brake pads, clean them.
  16. Step 17
    How to change Brake Calipers on Golf 4 1997 - free PDF and video manuals
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake caliper – VW Golf 4. After applying the spray, wait a few minutes.
  17. Step 18
    How to replace VW Golf IV Hatchback (1J1) 1.4 16V 1998 Brake Calipers - step-by-step manuals and video guides
    Treat the brake caliper bracket where it contacts the brake pads. Use anti-squeal paste.
  18. Step 19
    Golf 4 1.6 1999 Brake Calipers replacement: free workshop manuals
    Install the brake caliper and fix it. Use HEX No.H7. Use a torque wrench. Tighten it to 30 Nm torque.
  19. Step 20
    Changing Brake Calipers on VW Golf IV Hatchback (1J1) 1.9 TDI 2000 by yourself
    Install the dust boot caps of the brake caliper guide pins.
  20. Step 21
    How to remove VW GOLF 1.8 T 2001 Brake Calipers - online easy-to-follow instructions
    Treat the brake hose. Use a brake cleaner.
    Replacement: brake caliper – VW Golf 4. Tip from AUTODOC:
    After applying the spray, wait a few minutes.
  21. Step 22
    How to replace Brake Calipers on VW Golf IV Hatchback (1J1) 2002: download PDF manuals and video instructions
    Install and fix the brake hose into a new caliper. Use a drive socket #13.
