When to replace the Brake Discs on your VW GOLF
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.6, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 SDI, VW Golf IV Hatchback (1J1) 1.4 16V, VW Golf IV Hatchback (1J1) 1.8, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.8 4motion, VW Golf IV Hatchback (1J1) 2.0, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.6 16V, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 2.0 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.6 FSI, VW Golf IV Hatchback (1J1) 2.0 BiFuel … View more

The steps may slightly vary depending on the car design.

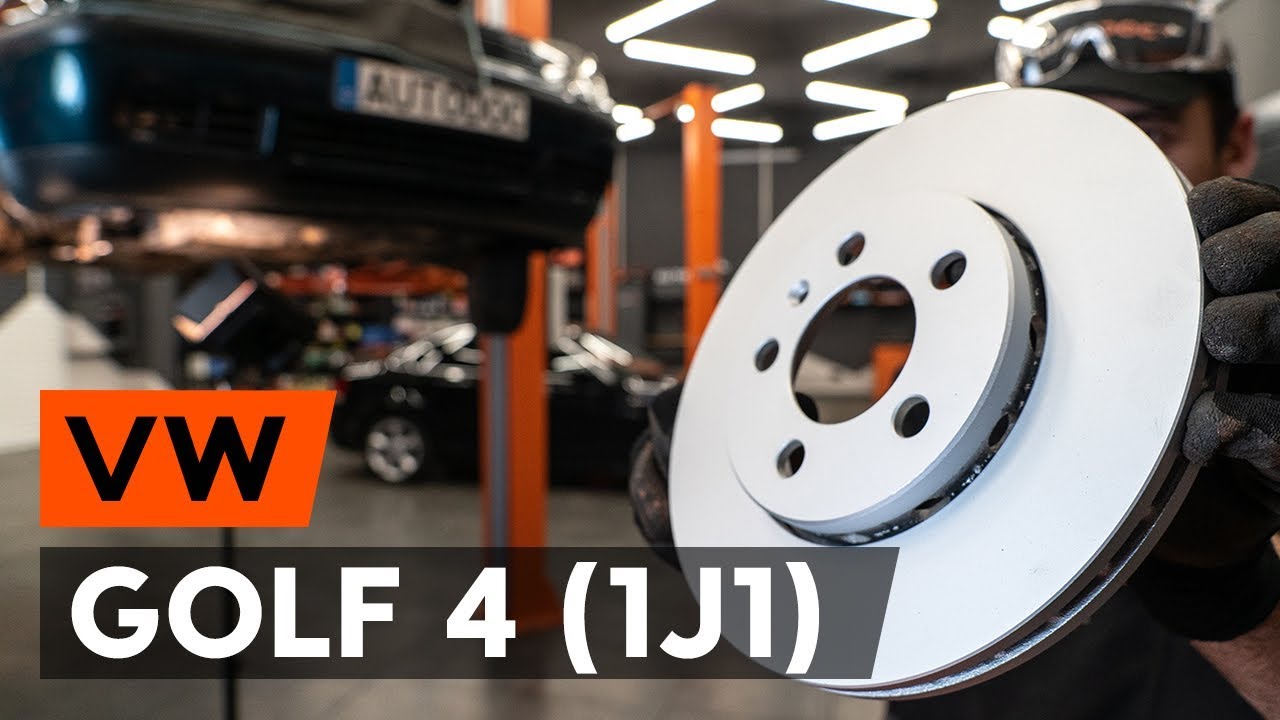

How to change front brake discs / front brake rotors on VW GOLF 4 (1J1) [TUTORIAL AUTODOC]

video
Published on: 19/09/2019
27K views
All the parts you need to replace – Brake Discs for Golf IV Hatchback (1J1) and other VW models
How to change Brake disc on Golf 4 1.4 16V – step-by-step instructions for straightforward car repair Brake disc
How to change Brake disc on Golf IV Hatchback (1J1) – tips for proper car maintenance
Brake disc for Golf IV Hatchback (1J1) Diesel (90 hp)
Simple DIY car repair steps – Replacing Brake disc on Golf IV Hatchback (1J1)
Brake disc for Golf IV Hatchback (1J1) Petrol (100 hp)
Easy tricks to help you to replace Brake disc on Golf IV Hatchback (1J1)
Brake disc for Golf IV Hatchback (1J1) Diesel (110 hp)
Brake disc removal & installation, incredibly easy steps for Golf IV Hatchback (1J1)
Brake disc for Golf IV Hatchback (1J1) Diesel (68 hp)
Changing Brake disc on Golf IV Hatchback (1J1) – tips for first time repair
Brake disc for Golf IV Hatchback (1J1) Petrol (75 hp)
Main steps for Brake disc replacement on Golf IV Hatchback (1J1)
Brake disc for Golf IV Hatchback (1J1) Petrol (125 hp)
How to change Brake disc on Golf IV Hatchback (1J1) – tips for proper car maintenance
Brake disc for Golf IV Hatchback (1J1) Diesel (90 hp)
Simple DIY car repair steps – Replacing Brake disc on Golf IV Hatchback (1J1)
Brake disc for Golf IV Hatchback (1J1) Petrol (125 hp)
Easy tricks to help you to replace Brake disc on Golf IV Hatchback (1J1)
Brake disc for Golf IV Hatchback (1J1) Petrol (115 hp)
Tools
Replacement: brake discs – VW Golf 4. Tools you might need:
Wire brush
Brake cleaner
Copper grease
HEX bit No.H7
Torx bit T30
Wheel impact socket #17
Brake caliper wind back tool
Ratchet wrench
Torque wrench
Crow bar
Wheel chock
Buy tools
Replacement: brake discs – VW Golf 4. AUTODOC experts recommend:
  • Replace the brake disks on the car VW Golf 4 in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • Please note: all work on the car – VW Golf 4 – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    Open the bonnet. Unscrew the brake fluid reservoir cap.
    Step 2
    How to change Brake Discs on Golf 4 1997 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 3
    How to replace VW Golf IV Hatchback (1J1) 1.4 16V 1998 Brake Discs - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17
  3. Step 4
    Golf 4 1.6 1999 Brake Discs replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 5
    Changing Brake Discs on VW Golf IV Hatchback (1J1) 1.9 TDI 2000 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. VW Golf 4
  5. Step 6
    How to remove VW GOLF 1.8 T 2001 Brake Discs - online easy-to-follow instructions
    Remove the wheel.
  6. Step 7
    How to replace Brake Discs on VW Golf IV Hatchback (1J1) 2002: download PDF manuals and video instructions
    Spread the brake pads. Use a crowbar.
  7. Step 8
    How hard is it to do yourself: Brake Discs replacement on Golf 4 1.4 16V 2003 - download illustrated guide
    Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
  8. Step 9
    Need to know how to renew Brake Discs on VW GOLF 2004? This free workshop manual will help you to do it yourself
    Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench.
  9. Step 10
    Changing of Brake Discs on Golf 4 2005 won't be an issue if you follow this illustrated step-by-step guide
    Remove the brake caliper.
  10. Step 11
    VW GOLF 1.6 16V Brake Discs replacement: online guides and video tutorials
    Remove the brake pads. Use a crowbar.
    Replacement: brake discs – VW Golf 4. Tip from AUTODOC:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  11. Step 12
    Replacing Brake Discs on Golf 4 1998 1.4 16V by yourself
    Unscrew the brake disc fastening. Use Torx T30.
  12. Step 13
    Golf IV Hatchback (1J1) 1.8 T 1999 Brake Discs DIY replacement workshop manual
    Remove the brake disc.
  13. Step 14
    How to change Brake Discs on VW Golf IV Hatchback (1J1) 2000 - tips and tricks
    Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
  14. Step 15
    Step-by-step recommendations for DIY replacement Golf 4 2001 1.8 T Brake Discs
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake discs – VW Golf 4. After applying the spray, wait a few minutes.
  15. Step 16
    DIY replacement of Brake Discs on VW Golf IV Hatchback (1J1) 1.6 16V 2002 is not an issue anymore with our step-by-step tutorial
    Install the brake disc.
  16. Step 17
    How to change Brake Discs on Golf 4 1997 - free PDF and video manuals
    Tighten the brake disc fastening. Use Torx T30. Use a torque wrench. Tighten it to 4 Nm torque.
