Important!

This replacement procedure can be used for:
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro, AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro, AUDI A3 Sportback (8VA, 8VF) S3 quattro, AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro, AUDI A3 Sportback (8VA, 8VF) S3 quattro, AUDI A3 Sportback (8VA, 8VF) S3 quattro, AUDI A3 Sportback (8VA, 8VF) 1.6 TDI quattro, AUDI A3 Sportback (8VA, 8VF) S3 quattro, AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro, AUDI A3 Sportback (8VA, 8VF) S3 quattro … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

Alternative products

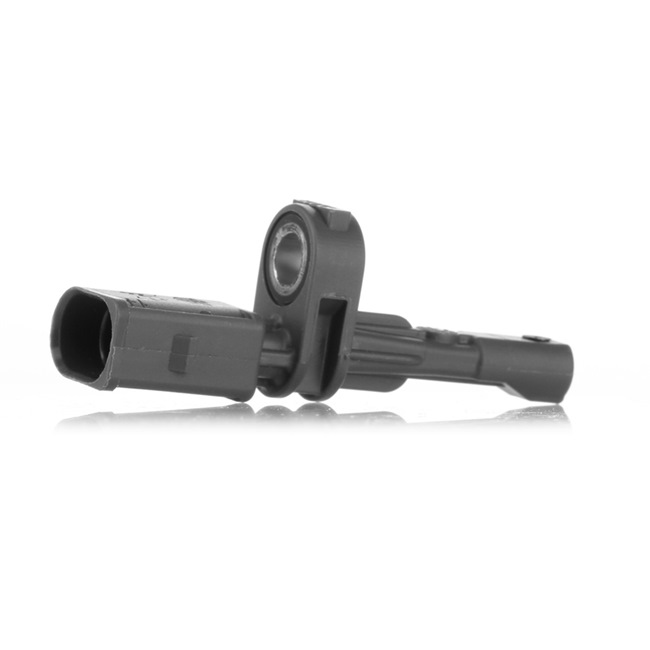

ABS sensor

Replacement: ABS sensor – AUDI A3 Sportback (8VA). List of the tools you'll need:

                      Wire brush

                      Nylon cleaning brush

                      WD-40 spray

                      Brake cleaner

                      Electronic spray

                      Multipurpose grease

                      Copper grease

                      Torque wrench

                      HEX bit No.H5

                      Wheel impact socket #17

                      Ratchet wrench

                      Flat screwdriver

                      Wheel chock

Buy tools

Replacement: ABS sensor – AUDI A3 Sportback (8VA). AUTODOC experts recommend:

All work should be done with the engine stopped.

Replacement: ABS sensor – AUDI A3 Sportback (8VA). Use the following procedure:

Step 1

Secure the wheels with chocks.

Step 2

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 3

Raise the front of the car and secure on supports.

Step 4

Unscrew the wheel bolts.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. AUDI A3 Sportback (8VA)
Step 5

Remove the wheel.
Step 6

Detach the ABS sensor connector.
Step 7

Clean the ABS sensor fastener. Use a wire brush. Use WD-40 spray.
Step 8

Unscrew the ABS sensor fastener. Use HEX No.H5. Use a ratchet wrench.
Step 9

Disconnect the ABS sensor.
Step 10

Clean the ABS sensor mounting seat. Use a wire brush. Use WD-40 spray.
Step 11

Treat the ABS sensor fastener. Use a multipurpose grease. Use a flat screwdriver.
Step 12

Connect the ABS sensor.
Step 13

Tighten the fastener that connects the ABS sensor to the steering knuckle. Use HEX No.H5. Use a torque wrench. Tighten it to 7 Nm torque.
Step 14

Treat the ABS sensor connector. Use a nylon cleaning brush. Use dielectric grease.
Step 15

Attach the ABS sensor connector.
Step 16

Clean the wheel rim mounting seat. Use a wire brush.
Step 17

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 18

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
Replacement: ABS sensor – AUDI A3 Sportback (8VA). After applying the spray, wait a few minutes.
Step 19

Install the wheel.

AUTODOC recommends:
Warning! To avoid injury, hold the wheel while screwing in the fastening bolts on the car. AUDI A3 Sportback (8VA)
Step 20

Screw in the wheel bolts. Use wheel impact socket #17.
Step 21

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 120 Nm torque.

Step 22

Remove the jacks and chocks.
