How to carry out replacement: ABS Sensor 1.6 TDI Audi A1 Sportback
Disclaimer
Change Audi A1 Sportback 1.4 TFSI ABS Sensor yourself – manuals and video tutorials

How to change front ABS sensor on AUDI A1 Sportback (8XA, 8XF) – replacement guide

downloads: 2
Views: 17
Download your free tutorial and fix AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI problems yourself Download for free 1.3 MB ABS Sensor for Audi A1 Sportback Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI, AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI, AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI, AUDI A1 Sportback (8XA, 8XF) 1.4 TDI, AUDI A1 Sportback (8XA, 8XF) 1.6 TDI, AUDI A1 Sportback (8XA, 8XF) 1.4 TSI, AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI, AUDI A1 Sportback (8XA, 8XF) S1 quattro … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

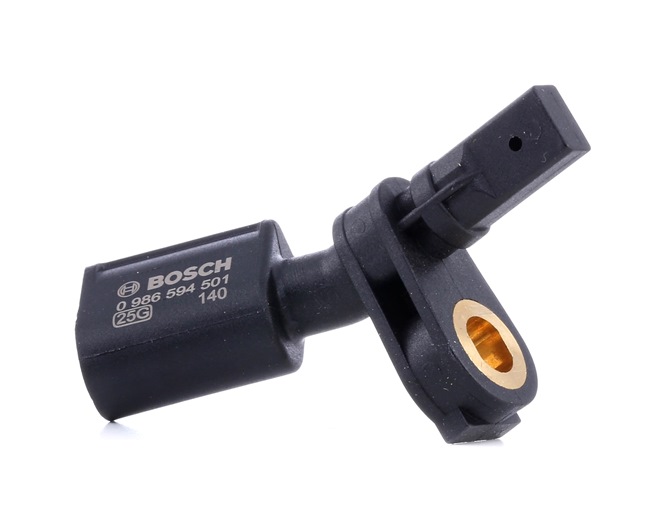

All the parts you need to replace – ABS Sensor for A1 Sportback (8XA, 8XF) and other AUDI models
How to change ABS sensor on Audi A1 Sportback 1.6 TDI – step-by-step instructions for straightforward car repair ABS sensor
How to change ABS sensor on A1 Sportback (8XA, 8XK) – tips for proper car maintenance
ABS sensor for A1 Sportback (8XA, 8XK) Petrol (231 hp)
Simple DIY car repair steps – Replacing ABS sensor on A1 Sportback (8XA, 8XK)
ABS sensor for A1 Sportback (8XA, 8XK) Petrol (125 hp)
Easy tricks to help you to replace ABS sensor on A1 Sportback (8XA, 8XK)
ABS sensor for A1 Sportback (8XA, 8XK) Petrol (150 hp)
ABS sensor removal & installation, incredibly easy steps for A1 Sportback (8XA, 8XK)
ABS sensor for A1 Sportback (8XA, 8XK) Diesel (115 hp)
Changing ABS sensor on A1 Sportback (8XA, 8XK) – tips for first time repair
ABS sensor for A1 Sportback (8XA, 8XK) Diesel (90 hp)
Main steps for ABS sensor replacement on A1 Sportback (8XA, 8XK)
ABS sensor for A1 Sportback (8XA, 8XK) Petrol (192 hp)
How to change ABS sensor on A1 Sportback (8XA, 8XK) – tips for proper car maintenance
ABS sensor for A1 Sportback (8XA, 8XK) Petrol (95 hp)
Simple DIY car repair steps – Replacing ABS sensor on A1 Sportback (8XA, 8XK)
ABS sensor for A1 Sportback (8XA, 8XK) Petrol (82 hp)
Tools
Replacement: ABS sensor – AUDI A1 Sportback (8XA, 8XK). List of the tools you'll need:
Wire brush
Nylon cleaning brush
WD-40 spray
Brake cleaner
Electronic spray
Multipurpose grease
Copper grease
Torque wrench
HEX bit No.H5
Wheel impact socket #17
Ratchet wrench
Flat screwdriver
Wheel chock
Buy tools
Replacement: ABS sensor – AUDI A1 Sportback (8XA, 8XK). AUTODOC experts recommend:
  • All work should be done with the engine stopped.
Replacement: ABS sensor – AUDI A1 Sportback (8XA, 8XK). Use the following procedure:
  1. Step 1
    Secure the wheels with chocks.
    Step 2
    How to change ABS Sensor on Audi A1 Sportback 2011 - free PDF and video manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  2. Step 3
    Raise the front of the car and secure on supports.
    Step 4
    How to replace AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2012 ABS Sensor - step-by-step manuals and video guides
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. AUDI A1 Sportback (8XA, 8XK)
  3. Step 5
    Audi A1 Sportback 1.2 TFSI 2013 ABS Sensor replacement: free workshop manuals
    Remove the wheel.
  4. Step 6
    Changing ABS Sensor on AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2014 by yourself
    Detach the ABS sensor connector.
  5. Step 7
    How to remove AUDI A1 1.4 TDI 2015 ABS Sensor - online easy-to-follow instructions
    Clean the ABS sensor fastener. Use a wire brush. Use WD-40 spray.
  6. Step 8
    How to replace ABS Sensor on AUDI A1 Sportback (8XA, 8XF) 2016: download PDF manuals and video instructions
    Unscrew the ABS sensor fastener. Use HEX No.H5. Use a ratchet wrench.
  7. Step 9
    How hard is it to do yourself: ABS Sensor replacement on Audi A1 Sportback 1.6 TDI 2017 - download illustrated guide
    Disconnect the ABS sensor.
  8. Step 10
    Need to know how to renew ABS Sensor on AUDI A1 2018? This free workshop manual will help you to do it yourself
    Clean the ABS sensor mounting seat. Use a wire brush. Use WD-40 spray.
  9. Step 11
    Changing of ABS Sensor on Audi A1 Sportback 2011 won't be an issue if you follow this illustrated step-by-step guide
    Treat the ABS sensor fastener. Use a multipurpose grease. Use a flat screwdriver.
  10. Step 12
    AUDI A1 1.4 TFSI ABS Sensor replacement: online guides and video tutorials
    Connect the ABS sensor.
  11. Step 13
    Replacing ABS Sensor on Audi A1 Sportback 2013 1.6 TDI by yourself
    Tighten the fastener that connects the ABS sensor to the steering knuckle. Use HEX No.H5. Use a torque wrench. Tighten it to 7 Nm torque.
