Recommended replacement interval for the part category Oil filter : 1 year / 30000 km

Important!

This replacement procedure can be used for:
RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.6 16V (BR09, BR0T, CR09, CR0T), RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.6 16V (BR05, BR0B, BR0Y, BR15, BR1J, BR1M, BR1Y, CR0B,..., RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.4 16V, RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi (C/BR0G, C/BR1G), RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi (BR17, CR17), RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi (BR0H, CR0H, CR1S, BR1S), RENAULT Clio III Hatchback (BR0/1, CR0/1) 2.0 16V Sport (CR0N, CR1P), RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi (BR1C, CR1C), RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi, RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi, RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi, RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.6 16V GT (BR10, CR10), RENAULT Clio III Hatchback (BR0/1, CR0/1) 2.0 16V Sport, RENAULT Clio III Hatchback (BR0/1, CR0/1) 1.5 dCi … View more

The steps may slightly vary depending on the car design.

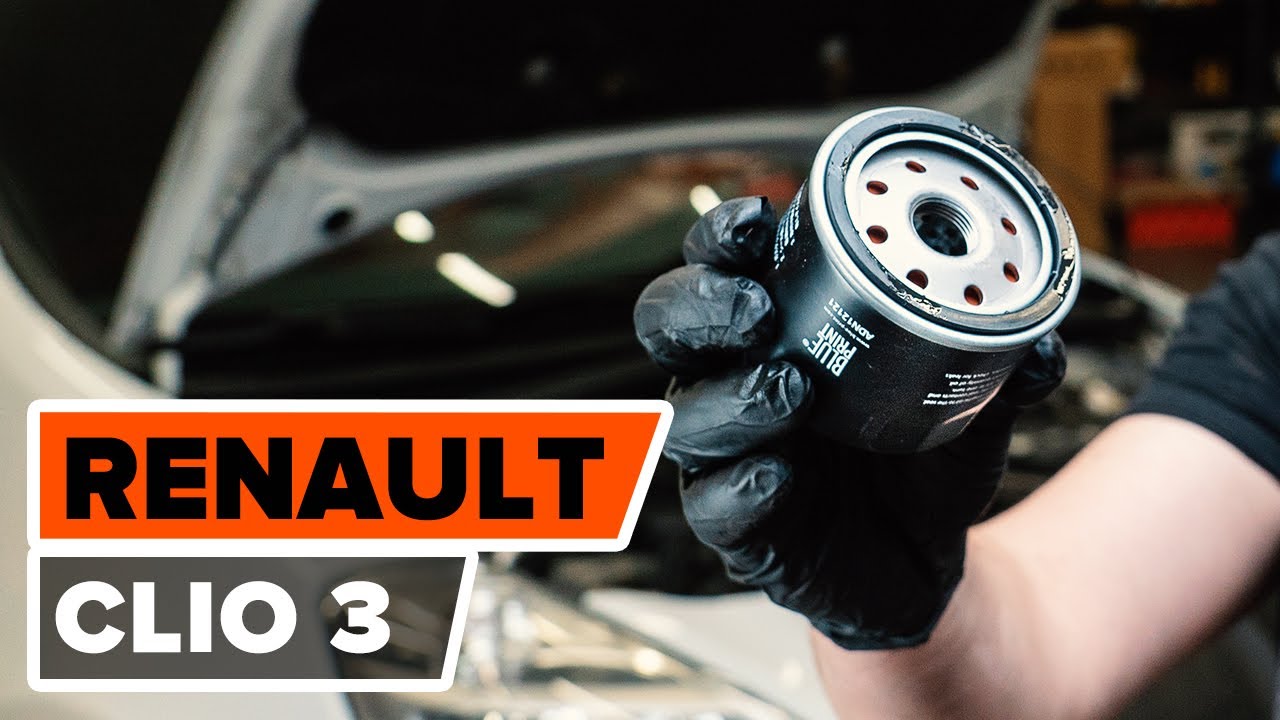

How to change oil filter and engine oil on RENAULT CLIO 3 [TUTORIAL AUTODOC]

All the parts you need to replace – Oil Filter for Clio III Hatchback (BR0/1, CR0/1) and other RENAULT models

Alternative products

Oil filter

SKOF-0860002 STARK Oil filter

3,49 GBP

Shop

SKOF-0860042 STARK Oil filter

3,65 GBP

Shop

7O0043 RIDEX Oil filter

3,65 GBP

Shop

LS932 PURFLUX Oil filter

4,10 GBP

Shop

27155 FEBI BILSTEIN Oil filter

4,36 GBP

Shop

7O0043P RIDEX PLUS Oil filter

4,58 GBP

Shop

60 92 7155 SWAG Oil filter

4,63 GBP

Shop

SKOF-0860327 STARK Oil filter

4,66 GBP

Shop

J1315020 HERTH+BUSS JAKOPARTS Oil filter

5,34 GBP

Shop

COF100136S CHAMPION Oil filter

5,44 GBP

Shop

Replacement: engine oil and filter – Renault Clio 3. Tools you might need:

                      Wire brush

                      All-purpose cleaning spray

                      Torque wrench

                      Oil filter cup socket 76-14F

                      Square oil drain plug socket No.8

                      Ratchet wrench

                      Oil drain pan

                      Funnel

                      Fender cover

Buy tools

Replacement: engine oil and filter – Renault Clio 3. AUTODOC recommends:

Replace the oil filter every time when changing motor oil.
Wear gloves to prevent contact with hot liquid.
All work should be done with the engine stopped.

Replacement: engine oil and filter – Renault Clio 3. Use the following procedure:

Step 1

Open the hood.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3

Unscrew the oil filler plug.
Step 4

Lift the car using a jack or place it over an inspection pit.

Replacement: engine oil and filter – Renault Clio 3. AUTODOC experts recommend:
The vehicle must be on even keel, and if it is at an angle, the drain plug must be at the lowest point.
Step 5

Put a waste oil container with at least 5 l capacity under the drainage hole.
Step 6

Clean the area of the oil pan drainage hole. Use a wire brush. Use all-purpose cleaning spray.
Step 7

Unscrew the drain plug. Use square oil drain plug socket No.8 Use a ratchet wrench.
Step 8

Drain the used oil.

Replacement: engine oil and filter – Renault Clio 3. Tip from AUTODOC:
Caution! The oil may be hot.
Step 9

Disconnect the air intake pipe from the air filter housing.
Step 10

Unscrew the oil filter. Use the 76-14F socket. Use a ratchet wrench.
Step 11

Remove the oil filter.
Step 12

Put the old oil filter in the container.

Replacement: engine oil and filter – Renault Clio 3. Tip:
Move up the container. The oil starts to drain out of the drainage hole immediately after you have removed the oil filter.
Step 13

Lubricate the rubber seal of the new filter with a little amount of fresh oil.
Step 14

Clean the oil filter seat.
Step 15

Install a new oil filter.
Step 16

Screw the new filter into its place. Use the 76-14F socket. Use a torque wrench. Tighten it to 25 Nm torque.
Step 17

Connect the air intake pipe to the air filter housing.

Replacement: engine oil and filter – Renault Clio 3. Tip from AUTODOC experts:
Wait until the oil has completely drained from the drainage hole.
Step 18

Clean the area of the oil pan drainage hole.
Step 19

Screw in the new drainage plug and tighten it. Use square oil drain plug socket No.8 Use a torque wrench. Tighten it to 20 nm torque.
Step 20

Clean the area of the oil pan drainage hole. Use all-purpose cleaning spray.
Step 21

Lower the car.
Step 22

Remove the oil filler cap.
Step 23

Insert the funnel.
Step 24

Pour oil into the engine through the filler. Required amount of oil: 4.5 l.

Replacement: engine oil and filter – Renault Clio 3. Tip from AUTODOC:
Use the oil recommended by the manufacturer.
Step 25

Check the oil level using the dipstick. Top up oil if necessary.

Please note!
The oil level should be between the Min and Max marks.
Step 26

Install the oil filler cap.

Step 27

Tighten the oil filler cap.
Step 28

Run the engine for a few minutes. After the oil pressure warning light goes out, stop the engine.
Step 29

Check the oil level 5 minutes after the stop of the engine operation using a dipstick and add oil if necessary.

Please note!
The oil level should be between the Min and Max marks.Make sure that the oil filler cap is properly tightened.Check the threaded plug of the drainage hole and the oil filter seal for tightness. If necessary, carefully tighten them up.
Step 30

Remove the fender protection cover.
Step 31

Close the hood.

Replacement: engine oil and filter – Renault Clio 3. Tip from AUTODOC experts:
Note that oil pressure warning light, which indicates insufficient pressure in the lubrication system, may be on for a longer time than usual. After a few seconds, the oil will fill all the channels, and the light will go out. To protect the environment from pollution, be sure to dispose of the used filters at special collection points.
