How to carry out replacement: Air Filter 1.4 16V Golf 4
Disclaimer
Change Golf 4 1.6 16V Air Filter yourself – manuals and video tutorials

How to change air filter on VW Golf 4 – replacement guide

downloads: 12
Views: 194
Download your free tutorial and fix VW Golf IV Hatchback (1J1) 1.6 problems yourself Download for free 2.2 MB Air Filter for Golf 4 Shop now
Leave a comment Open in a new tab
When to replace the Air Filter on your VW GOLF
Recommended replacement interval for the part category Air filter : 4 year / 60000 km
Important!
This replacement procedure can be used for:
VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.6, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 SDI, VW Golf IV Hatchback (1J1) 1.8, VW Golf IV Hatchback (1J1) 1.8 T, VW Golf IV Hatchback (1J1) 2.3 V5, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.8 4motion, VW Golf IV Hatchback (1J1) 2.8 VR6 4motion, VW Golf IV Hatchback (1J1) 2.0, VW Golf IV Hatchback (1J1) 2.3 V5 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.6, VW Golf IV Hatchback (1J1) 2.3 V5, VW Golf IV Hatchback (1J1) 2.3 V5 4motion, VW Golf IV Hatchback (1J1) 2.0 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.8 T GTI, VW Golf IV Hatchback (1J1) 1.6 FSI, VW Golf IV Hatchback (1J1) 3.2 R32 4motion, VW Golf IV Hatchback (1J1) 2.0 BiFuel … View more

The steps may slightly vary depending on the car design.

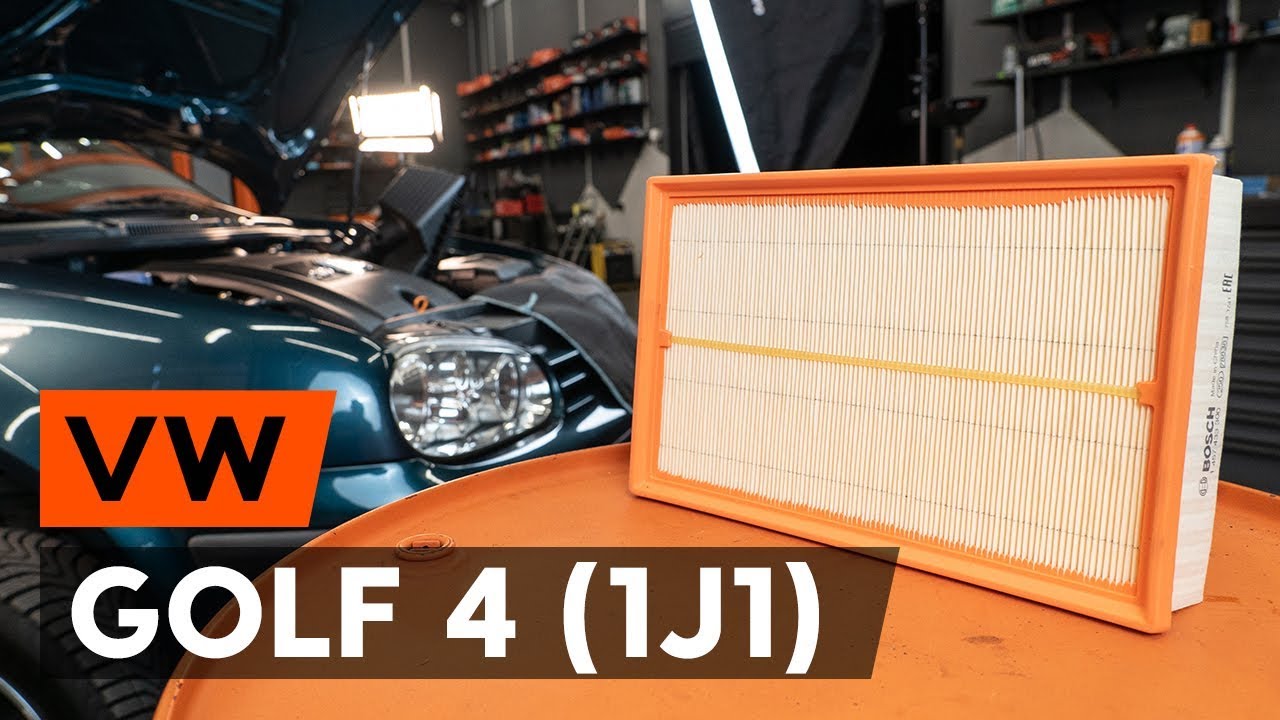

How to change air filter on VW GOLF 4 (1J1) [TUTORIAL AUTODOC]

video
Published on: 19/09/2019
4K views

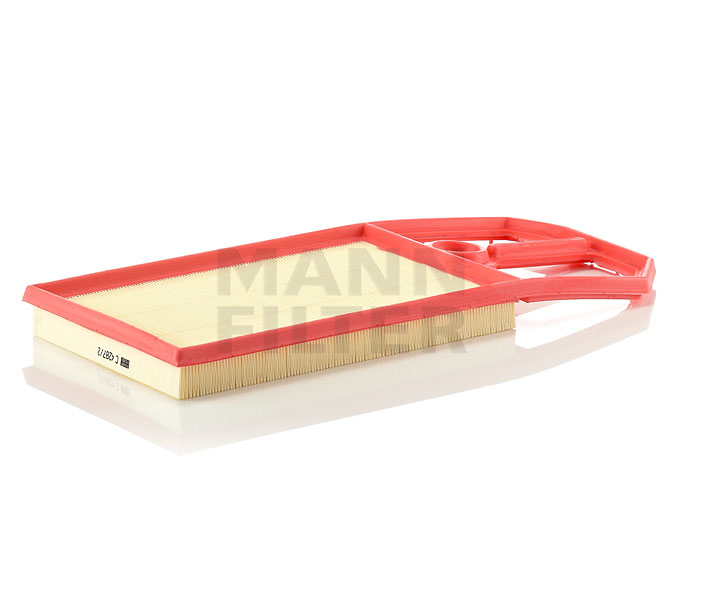

All the parts you need to replace – Air Filter for Golf IV Hatchback (1J1) and other VW models
How to change Air filter on Golf 4 1.4 16V – step-by-step instructions for straightforward car repair Air filter
How to change Air Filter Housing Cover on Golf 4 1.4 16V – step-by-step instructions for straightforward car repair Air Filter Housing Cover
How to change Seal Ring, air filter housing intake hose on Golf 4 1.4 16V – step-by-step instructions for straightforward car repair Seal Ring, air filter housing intake hose
How to change Air filter on VW Golf IV Hatchback (1J1) 1.9 TDI – tips for proper car maintenance
Air filter for VW Golf IV Hatchback (1J1) 1.9 TDI Diesel (90 hp)
Simple DIY car repair steps – Replacing Air filter on VW Golf IV Hatchback (1J1) 1.6
Air filter for VW Golf IV Hatchback (1J1) 1.6 Petrol (100 hp)
Easy tricks to help you to replace Air filter on VW Golf IV Hatchback (1J1) 1.9 TDI
Air filter for VW Golf IV Hatchback (1J1) 1.9 TDI Diesel (110 hp)
Air filter removal & installation, incredibly easy steps for VW Golf IV Hatchback (1J1) 1.9 SDI
Air filter for VW Golf IV Hatchback (1J1) 1.9 SDI Diesel (68 hp)
Changing Air filter on VW Golf IV Hatchback (1J1) 1.8 – tips for first time repair
Air filter for VW Golf IV Hatchback (1J1) 1.8 Petrol (125 hp)
Main steps for Air filter replacement on VW Golf IV Hatchback (1J1) 1.8 T
Air filter for VW Golf IV Hatchback (1J1) 1.8 T Petrol (150 hp)
How to change Air filter on VW Golf IV Hatchback (1J1) 2.3 V5 – tips for proper car maintenance
Air filter for VW Golf IV Hatchback (1J1) 2.3 V5 Petrol (150 hp)
Simple DIY car repair steps – Replacing Air filter on VW Golf IV Hatchback (1J1) 1.9 TDI 4motion
Air filter for VW Golf IV Hatchback (1J1) 1.9 TDI 4motion Diesel (90 hp)
Easy tricks to help you to replace Air filter on VW Golf IV Hatchback (1J1) 1.8 4motion
Air filter for VW Golf IV Hatchback (1J1) 1.8 4motion Petrol (125 hp)
Tools
Replacement: air filter – VW Golf 4. Tools you'll need:
Phillips screwdriver
Water pump pliers
Microfibre towel
Fender cover
Buy tools
Replacement: air filter – VW Golf 4. Tip from AUTODOC:
  • Follow the terms, recommendations and requirements of the part operation provided by the manufacturer.
  • All work should be done with the engine stopped.
Replacement: air filter – VW Golf 4. Recommended sequence of steps:
  1. Step 1
    How to change Air Filter on Golf 4 1997 - free PDF and video manuals
    Open the bonnet.
  2. Step 2
    How to replace VW Golf IV Hatchback (1J1) 1.4 16V 1998 Air Filter - step-by-step manuals and video guides
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
  3. Step 3
    Golf 4 1.6 1999 Air Filter replacement: free workshop manuals
    Undo the fastening screws of the air filter cover. Use a Phillips screwdriver.
  4. Step 4
    Changing Air Filter on VW Golf IV Hatchback (1J1) 1.9 TDI 2000 by yourself
    Detach the air intake hose clamp. Use water pump pliers.
  5. Step 5
    How to remove VW GOLF 1.8 T 2001 Air Filter - online easy-to-follow instructions
    Unplug the mass air flow sensor connector.
  6. Step 6
    How to replace Air Filter on VW Golf IV Hatchback (1J1) 2002: download PDF manuals and video instructions
    Disconnect the air intake pipe from the air filter housing.
  7. Step 7
    How hard is it to do yourself: Air Filter replacement on Golf 4 1.4 16V 2003 - download illustrated guide
    Slightly raise the cover of the air filter housing.
  8. Step 8
    Need to know how to renew Air Filter on VW GOLF 2004? This free workshop manual will help you to do it yourself
    Remove the filter element from the filter housing.
  9. Step 9
    Changing of Air Filter on Golf 4 2005 won't be an issue if you follow this illustrated step-by-step guide
    Cover the air intake hose with a microfibre towel to prevent dust and dirt from getting into the system.
  10. Step 10
    VW GOLF 1.6 16V Air Filter replacement: online guides and video tutorials
    Clean the air filter cover and housing.
    Replacement: air filter – VW Golf 4. Professionals recommend:
    Before cleaning the air filter cover and housing, cover the air duct parts, mass airflow sensor (if available), throttle valve with a clean cloth.
  11. Step 11
    Replacing Air Filter on Golf 4 1998 1.4 16V by yourself
    Remove the microfibre towel from the air intake hose.
Was this manual helpful?
Please rate this manual on a scale from 1 to 5. If you have any questions, feel free to ask us.
Users voted – 0
