Replacement: air filter – Toyota Yaris P1. AUTODOC recommends:
Follow the terms, recommendations and requirements of the part operation provided by the manufacturer.
All work should be done with the engine stopped.
Replacement: air filter – Toyota Yaris P1. Recommended sequence of steps:
Step 1
Open the bonnet.
Step 2
Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3
Detach the air intake hose clamp. Use a Phillips screwdriver.
Step 4
Disconnect the air intake pipe from the air filter housing.
Step 5
Unplug the mass air flow sensor connector. Use a flat screwdriver.
Step 6
Slide the filter cover clips.
Step 7
Take off the filter lid.
Step 8
Remove the filter element from the filter housing.
Step 9
Clean the air filter cover and housing.
Replacement: air filter – Toyota Yaris P1. Tip:
Before cleaning the air filter cover and housing, cover the air duct parts, mass airflow sensor (if available), throttle valve with a clean cloth.
Step 10

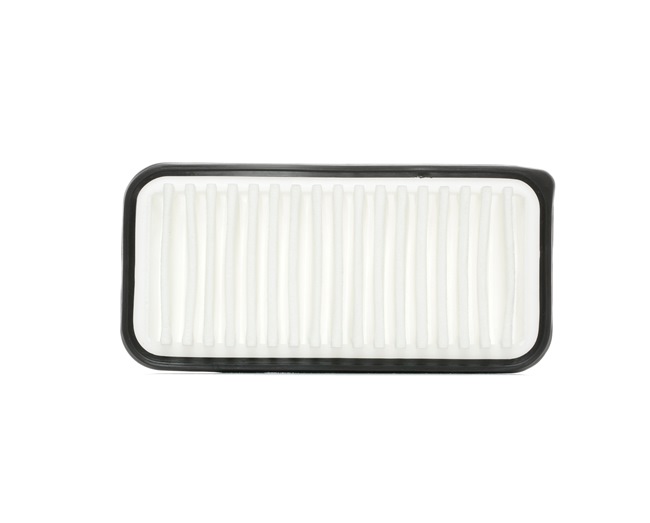

Insert a new filter element into the filter housing. Make sure that the filter edge fits tight to the housing.
AUTODOC recommends:
Replacement: air filter – Toyota Yaris P1. Be sure to position the filtering element correctly. Avoid misalignment.Take care to only use quality filters.During installation, make sure to prevent dust and dirt from getting into the air filter housing.
Step 11
Reinstall the air filter cover. Fasten it.
Step 12
Lock the retaining clips of the air filter housing cover.
Step 13
Plug in the mass air flow sensor conntector.
Step 14
Connect the air intake pipe to the air filter housing.
Step 15
Fasten the clamp on the air intake hose. Use a Phillips screwdriver.
Step 16
Remove the fender protection cover. Close the hood.
