Important!
This replacement procedure can be used for:
OPEL Astra H Caravan (A04) 1.6 LPG (L35), OPEL Astra H Caravan (A04) 1.4 LPG (L35), OPEL Astra H Caravan (A04) 1.4 (L35), OPEL Astra H Caravan (A04) 1.4 (L35), OPEL Astra H Caravan (A04) 1.6 (L35), OPEL Astra H Caravan (A04) 1.8 (L35), OPEL Astra H Caravan (A04) 2.0 Turbo (L35), OPEL Astra H Caravan (A04) 2.0 Turbo (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35), OPEL Astra H Caravan (A04) 1.9 CDTI (L35), OPEL Astra H Caravan (A04) 1.9 CDTI 16V (L35), OPEL Astra H Caravan (A04) 1.9 CDTI (L35), OPEL Astra H Caravan (A04) 1.9 CDTI (L35), OPEL Astra H Caravan (A04) 1.8 (L35), OPEL Astra H Caravan (A04) 1.6 Turbo (L35), OPEL Astra H Caravan (A04) 1.6 (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35) … View more

The steps may slightly vary depending on the car design.

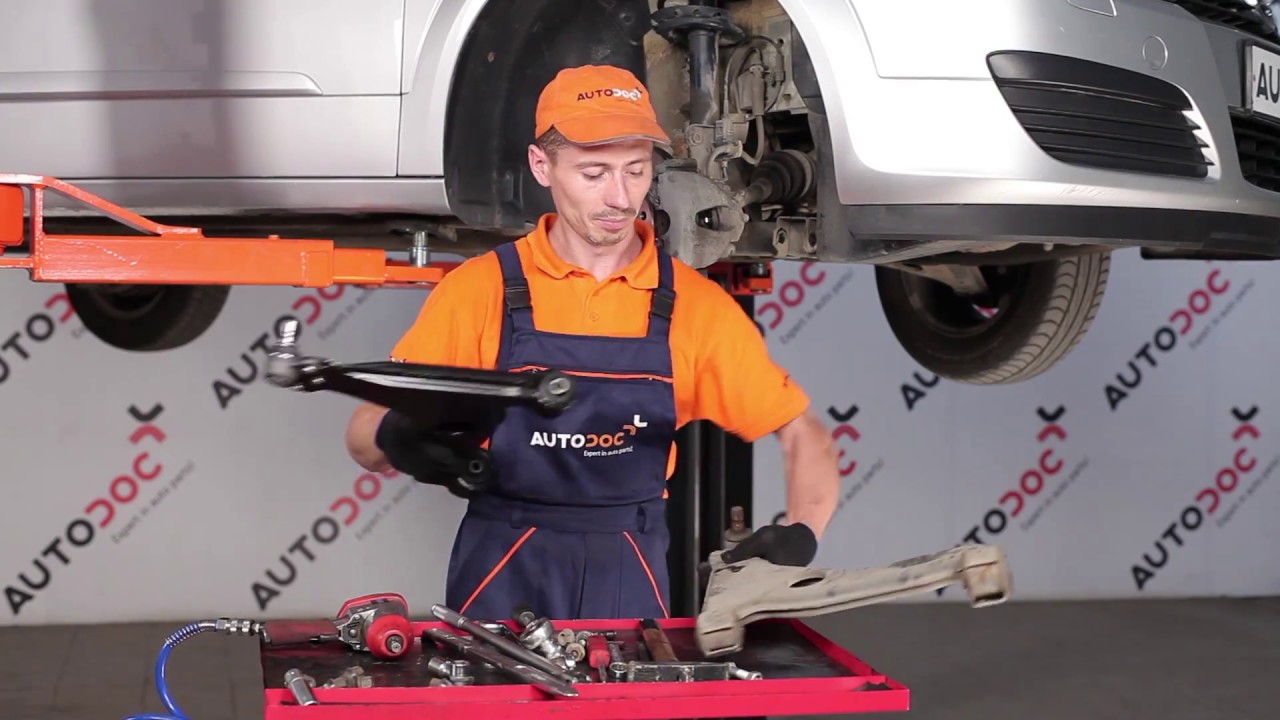

How to change front lower arm on OPEL ASTRA H TUTORIAL | AUTODOC

video
Published on: 03/10/2016
70K views
All the parts you need to replace – Control Arm for Astra H Caravan (A04) and other OPEL models
Alternative products
How to change Suspension arm on Astra H Caravan 1.6 (L35) – step-by-step instructions for straightforward car repair Suspension arm
Tools
Replacement: front lower arm – Opel Astra H Caravan. Tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #18
Drive socket # 18
Wheel impact socket #17
Ratchet wrench
Torque wrench
Rubber mallet
Hammer
Pin punch
Crow bar
Tap wrench
Ball joint puller
Hydraulic transmission jack
Wheel chock
Buy tools
Replacement: front lower arm – Opel Astra H Caravan. AUTODOC experts recommend:
  • The replacement procedure is identical for the left and right lower control arms.
  • Warning! Shut down the engine before starting any work – Opel Astra H Caravan.
Carry out replacement in the following order:
  1. Step 1
    How to change Control Arm on Astra H Caravan 2004 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace OPEL Astra H Caravan (A04) 1.6 (L35) 2005 Control Arm - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Astra H Caravan 1.7 CDTI (L35) 2006 Control Arm replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Control Arm on OPEL Astra H Caravan (A04) 1.3 CDTI (L35) 2007 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Opel Astra H Caravan
  5. Step 5
    How to remove OPEL ASTRA 1.4 (L35) 2008 Control Arm - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Control Arm on OPEL Astra H Caravan (A04) 2009: download PDF manuals and video instructions
    Clean the fastener connecting the ball joint to the steering knuckle. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Control Arm replacement on Astra H Caravan 1.6 (L35) 2010 - download illustrated guide
    Unscrew the ball joint fastening to the steering knuckle. Use a combination spanner #18. Use a drive socket #18. Use a ratchet wrench.
  8. Step 8
    Need to know how to renew Control Arm on OPEL ASTRA 2011? This free workshop manual will help you to do it yourself
    Remove the fastening bolt.
  9. Step 9
    Changing of Control Arm on Astra H Caravan 2012 won't be an issue if you follow this illustrated step-by-step guide
    Clean the fasteners connecting the control arm to the subframe. Use a wire brush. Use WD-40 spray.
  10. Step 10
    OPEL ASTRA 1.9 CDTI (L35) Control Arm replacement: online guides and video tutorials
    Unscrew the rear fastener connecting the control arm to the subframe. Use a combination spanner #18. Use a drive socket #18. Use a ratchet wrench. Use a tap wrench.
  11. Step 11
    Remove the rear fastener of the control arm.
    Step 12
    Replacing Control Arm on Astra H Caravan 2014 1.6 (L35) by yourself
    Unscrew the front arm fastener. Use a combination spanner #18. Use a drive socket #18. Use a ratchet wrench. Use a tap wrench.
  12. Step 13
    Astra H Caravan (A04) 1.4 (L35) 2004 Control Arm DIY replacement workshop manual
    Disconnect the ball joint from the steering knuckle. Use a ball joint puller.
  13. Step 14
    Remove the front fastener of the control arm.
    Step 15
    How to change Control Arm on OPEL Astra H Caravan (A04) 2005 - tips and tricks
    Remove the arm. Use a crowbar.
  14. Step 16
    Step-by-step recommendations for DIY replacement Astra H Caravan 2006 1.4 (L35) Control Arm
    Clean the mounting seats and the thread of the suspension arm. Use a wire brush. Use WD-40 spray.
  15. Step 17
    DIY replacement of Control Arm on OPEL Astra H Caravan (A04) 1.9 CDTI (L35) 2007 is not an issue anymore with our step-by-step tutorial
    Install a new arm. Use a rubber mallet.
    Replacement: front lower arm – Opel Astra H Caravan. Professionals recommend:
    During the installation process, use only new bolts and nuts.Do not damage the ball joint cover.
  16. Step 18
    Install the front fastener of the arm.
    Step 19
    How to change Control Arm on Astra H Caravan 2004 - free PDF and video manuals
    Install the rear fastener of the control arm.
