Important!
This replacement procedure can be used for:
OPEL Astra H Caravan (A04) 1.6 LPG (L35), OPEL Astra H Caravan (A04) 1.4 LPG (L35), OPEL Astra H Caravan (A04) 1.4 (L35), OPEL Astra H Caravan (A04) 1.4 (L35), OPEL Astra H Caravan (A04) 1.6 (L35), OPEL Astra H Caravan (A04) 1.8 (L35), OPEL Astra H Caravan (A04) 2.0 Turbo (L35), OPEL Astra H Caravan (A04) 2.0 Turbo (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35), OPEL Astra H Caravan (A04) 1.9 CDTI (L35), OPEL Astra H Caravan (A04) 1.9 CDTI 16V (L35), OPEL Astra H Caravan (A04) 1.9 CDTI (L35), OPEL Astra H Caravan (A04) 1.9 CDTI (L35), OPEL Astra H Caravan (A04) 1.8 (L35), OPEL Astra H Caravan (A04) 1.6 Turbo (L35), OPEL Astra H Caravan (A04) 1.6 (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35), OPEL Astra H Caravan (A04) 1.7 CDTI (L35) View more

The steps may slightly vary depending on the car design.

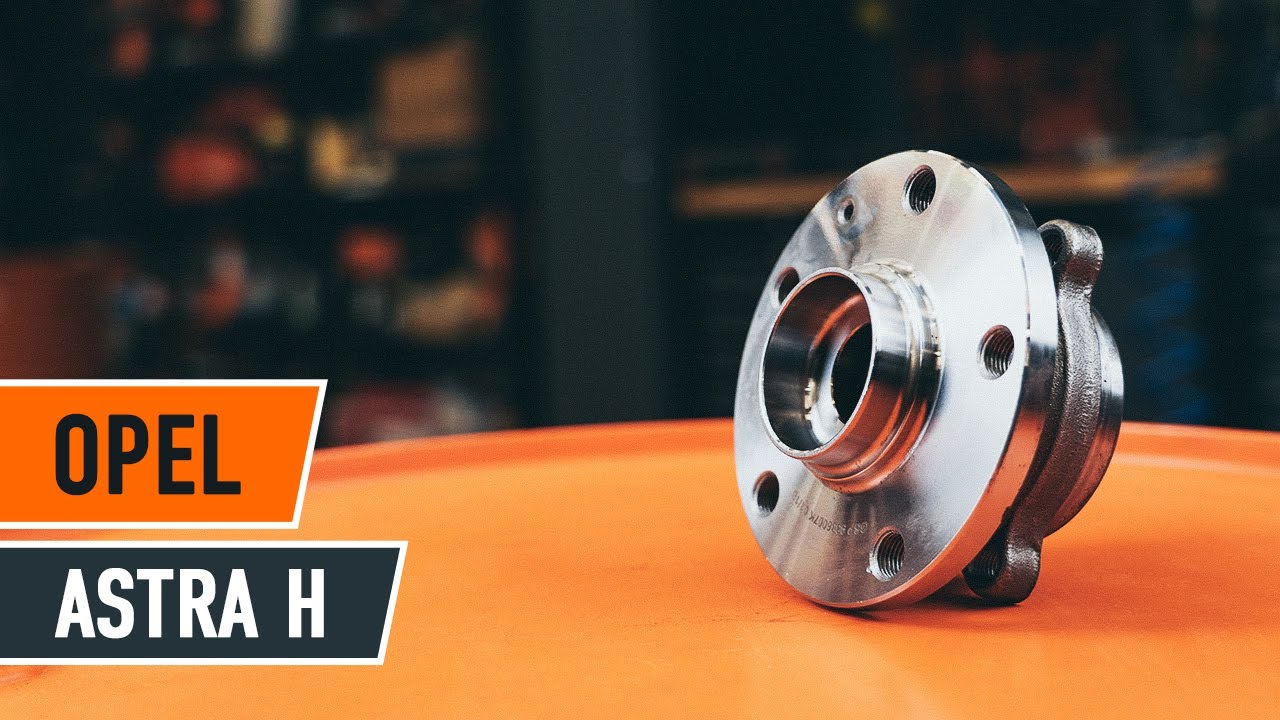

How to change a Rear wheel bearing on OPEL ASTRA H TUTORIAL | AUTODOC

video
All the parts you need to replace – Wheel Bearing for Astra H Caravan (A04) and other OPEL models
How to change Wheel bearing kit on Astra H Caravan 1.6 (L35) – step-by-step instructions for straightforward car repair
Wheel bearing kit
How to change Cap, wheel bearing on Astra H Caravan 1.6 (L35) – step-by-step instructions for straightforward car repair
Cap, wheel bearing
Tools
Replacement: wheel bearing – Opel Astra H Caravan. Tools you might need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Torx bit T30
Drive socket # 16
Drive socket # E18
Wheel impact socket #17
Ratchet wrench
Torque wrench
Wheel chock
Replacement: wheel bearing – Opel Astra H Caravan. Tip:
  • Do not re-use the bearing assembly of your Opel Astra H Caravan car.
  • The wheel hub bearing replacement procedure is identical for both wheels on the same axle.
  • All work should be done with the engine stopped.
Replacement: wheel bearing – Opel Astra H Caravan. Use the following procedure:
  1. Step 1
    How to change Wheel Bearing on Astra H Caravan 2004 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace OPEL Astra H Caravan (A04) 1.6 (L35) 2005 Wheel Bearing - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Astra H Caravan 1.7 CDTI (L35) 2006 Wheel Bearing replacement: free workshop manuals
    Raise the rear of the car and secure on supports.
  4. Step 4
    Changing Wheel Bearing on OPEL Astra H Caravan (A04) 1.3 CDTI (L35) 2007 by yourself
    Unscrew the wheel bolts.
    Replacement: wheel bearing – Opel Astra H Caravan. Tip from AUTODOC:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  5. Step 5
    How to remove OPEL ASTRA 1.4 (L35) 2008 Wheel Bearing - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Wheel Bearing on OPEL Astra H Caravan (A04) 2009: download PDF manuals and video instructions
    Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Wheel Bearing replacement on Astra H Caravan 1.6 (L35) 2010 - download illustrated guide
    Unscrew the caliper bracket fastening. Use a drive socket #E18. Use a ratchet wrench.
  8. Step 8
    Remove the fastening bolts (2 pieces).
    Step 9
    Need to know how to renew Wheel Bearing on OPEL ASTRA 2011? This free workshop manual will help you to do it yourself
    Remove the brake caliper together with its bracket.
    Replacement: wheel bearing – Opel Astra H Caravan. Professionals recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  9. Step 10
    Changing of Wheel Bearing on Astra H Caravan 2012 won't be an issue if you follow this illustrated step-by-step guide
    Clean the brake disc fastener. Use a wire brush. Use WD-40 spray.
  10. Step 11
    OPEL ASTRA 1.9 CDTI (L35) Wheel Bearing replacement: online guides and video tutorials
    Unscrew the brake disc fastening. Use Torx T30. Use a ratchet wrench.
  11. Step 12
    Replacing Wheel Bearing on Astra H Caravan 2014 1.6 (L35) by yourself
    Remove the brake disc.
  12. Step 13
    Astra H Caravan (A04) 1.4 (L35) 2004 Wheel Bearing DIY replacement workshop manual
    Unscrew the wheel hub bolts. Use a drive socket #16. Use a ratchet wrench.
  13. Step 14
    How to change Wheel Bearing on OPEL Astra H Caravan (A04) 2005 - tips and tricks
    Remove the hub and the bearing together, since they are a sealed unit.
  14. Step 15
    Step-by-step recommendations for DIY replacement Astra H Caravan 2006 1.4 (L35) Wheel Bearing
    Detach the ABS sensor connector.
  15. Step 16
    DIY replacement of Wheel Bearing on OPEL Astra H Caravan (A04) 1.9 CDTI (L35) 2007 is not an issue anymore with our step-by-step tutorial
    Remove the brake disc cover.
  16. Step 17
    How to change Wheel Bearing on Astra H Caravan 2004 - free PDF and video manuals
    Install the brake disc cover.
  17. Step 18
    How to replace OPEL Astra H Caravan (A04) 1.6 (L35) 2005 Wheel Bearing - step-by-step manuals and video guides
    Attach the ABS sensor connector.
  18. Step 19
    Astra H Caravan 1.7 CDTI (L35) 2006 Wheel Bearing replacement: free workshop manuals
    Install the new wheel hub with a bearing.
