Important!

This replacement procedure can be used for:
VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 SDI, VW Golf IV Hatchback (1J1) 1.4 16V, VW Golf IV Hatchback (1J1) 1.8, VW Golf IV Hatchback (1J1) 1.8 T, VW Golf IV Hatchback (1J1) 2.3 V5, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.8 4motion, VW Golf IV Hatchback (1J1) 2.8 VR6 4motion, VW Golf IV Hatchback (1J1) 2.0, VW Golf IV Hatchback (1J1) 2.3 V5 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.6 16V, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.6, VW Golf IV Hatchback (1J1) 2.3 V5, VW Golf IV Hatchback (1J1) 2.3 V5 4motion, VW Golf IV Hatchback (1J1) 2.0 4motion, VW Golf IV Hatchback (1J1) 1.9 TDI, VW Golf IV Hatchback (1J1) 1.9 TDI 4motion, VW Golf IV Hatchback (1J1) 1.8 T GTI, VW Golf IV Hatchback (1J1) 1.6 FSI, VW Golf IV Hatchback (1J1) 3.2 R32 4motion … View more

The steps may slightly vary depending on the car design.

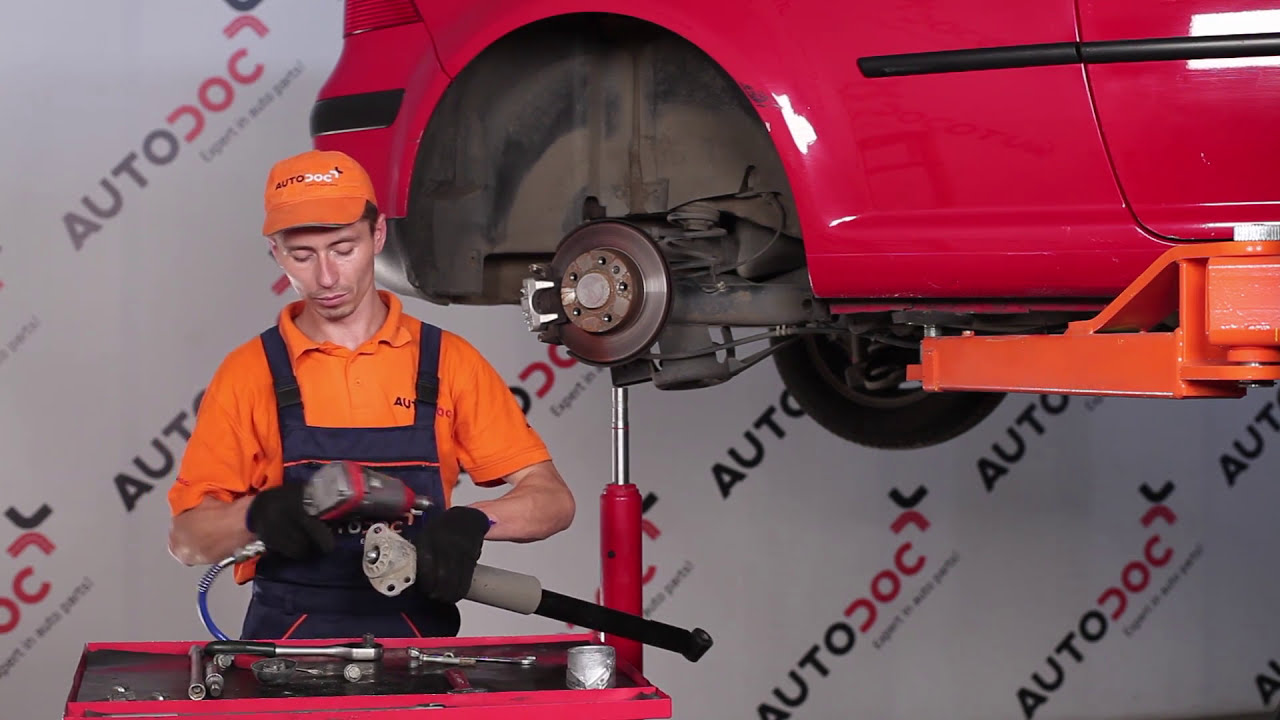

How to change rear strut mount on VW GOLF 4 TUTORIAL | AUTODOC

Alternative products

Top strut mount

Replacement: strut mount – VW Golf 4. Tools you need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Copper grease

                      Combination spanner #16

                      Drive socket # 15

                      Drive socket # 16

                      Wheel impact socket #17

                      Ratchet wrench

                      Torque wrench

                      Tap wrench

                      Adjustable wrench

                      Flat screwdriver

                      Hydraulic transmission jack

                      Wheel chock

Buy tools

Replacement: strut mount – VW Golf 4. AUTODOC experts recommend:

The replacement procedure is identical for the mounts of the right and left shock absorbers of the rear suspension.
Both mounts of the rear shock struts should be replaced simultaneously.
During the installation process, use only new bolts and nuts.
All work should be done with the engine stopped.

Replacement: strut mount – VW Golf 4. Take the following steps:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts.Use wheel impact socket #17.

Step 3

Raise the rear of the car and secure on supports.

Step 4

Unscrew the wheel bolts.

Replacement: strut mount – VW Golf 4. Tip:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 5

Remove the wheel.
Step 6

Clean the shock absorber fasteners.Use a wire brush.Use WD-40 spray.

Step 7

Secure the rear axle beam.Use a hydraulic transmission jack.
Step 8

Unscrew the lower fastener of the shock absorber.Use a combination spanner #16.Use a drive socket #16.Use a ratchet wrench.

AUTODOC recommends:
VW Golf 4 – To avoid injury, hold the shock absorber while unscrewing the fastening bolts.
Step 9

Remove the fastening bolt.

Step 10.1

Unscrew the upper fastener of the shock absorber.

Step 10.2

Use a drive socket #16.Use a tap wrench.
Step 11

Remove the shock absorber.
Step 12

Remove the protective cap of the shock absorber mount. Use a flat screwdriver.
Step 13

Clean the shock absorber rod fastener.Use a wire brush.Use WD-40 spray.

Step 14

Remove the shock absorber piston rod fastening.Use a drive socket #15.Use a ratchet wrench.Use an adjustable wrench.
Step 15

Remove the shock absorber mount, boot and bump stop.
Step 16

Install the new mount, boot, and bump stop on the shock absorber.
Step 17

Screw the shock strut piston rod upper fastening.Use a drive socket #15.Use an adjustable wrench.Use a torque wrench.Tighten it to 25 Nm torque.
Step 18

Install the protective cap of the shock absorber mount.

Step 19

Clean the shock absorber mounting seats.Use a wire brush.Use WD-40 spray.
Step 20

Place the shock absorber in the wheel arch and secure it.

Replacement: strut mount – VW Golf 4. Professionals recommend:
To avoid injury, hold the shock absorber cautiously tight when screwing in the fastening bolts.
Step 21

Tighten the top shock absorber fastening.Use a drive socket #16.Use a torque wrench.Tighten it to 30 Nm torque.+90°

AUTODOC recommends:
Important! Be sure to use new fasteners.
Step 22

Install the fastening bolt.

Step 23

Screw in the lower fastener of the shock absorber. Use a drive socket #16.

Step 24

Tighten the lower fastener of the shock absorber. Use a combination spanner #16.Use a drive socket #16.Use a torque wrench.Tighten it to 40 Nm torque.+90°

AUTODOC recommends:
Important! Be sure to use new fasteners.
Step 25

Remove the mounting from under the rear axle beam.

AUTODOC recommends:
Replacement: strut mount – VW Golf 4. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
Step 26

Treat the shock absorber fasteners. Use copper grease.
Step 27

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.

Step 28

Clean the brake disk surface.Use a brake cleaner.

Replacement: strut mount – VW Golf 4. AUTODOC recommends:
After applying the spray, wait a few minutes.
Step 29

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. VW Golf 4
Step 30

Screw in the wheel bolts.Use wheel impact socket #17.
Step 31

Lower the car and working in a cross order, tighten the wheel bolts.Use a torque wrench.Tighten it to 120 nm torque.

Step 32

Remove the jacks and chocks.
