Important!

This replacement procedure can be used for:
BMW X5 (E53) 3.0d, BMW X5 (E53) 4.6is, BMW X5 (E53) 3.0i, BMW X5 (E53) 4.4i, BMW X5 (E53) 3.0d, BMW X5 (E53) 4.8is … View more

The steps may slightly vary depending on the car design.

How to change strut mount BMW X5 E53 TUTORIAL | AUTODOC

All the parts you need to replace – Strut Mount for X5 (E53) and other BMW models

Alternative products

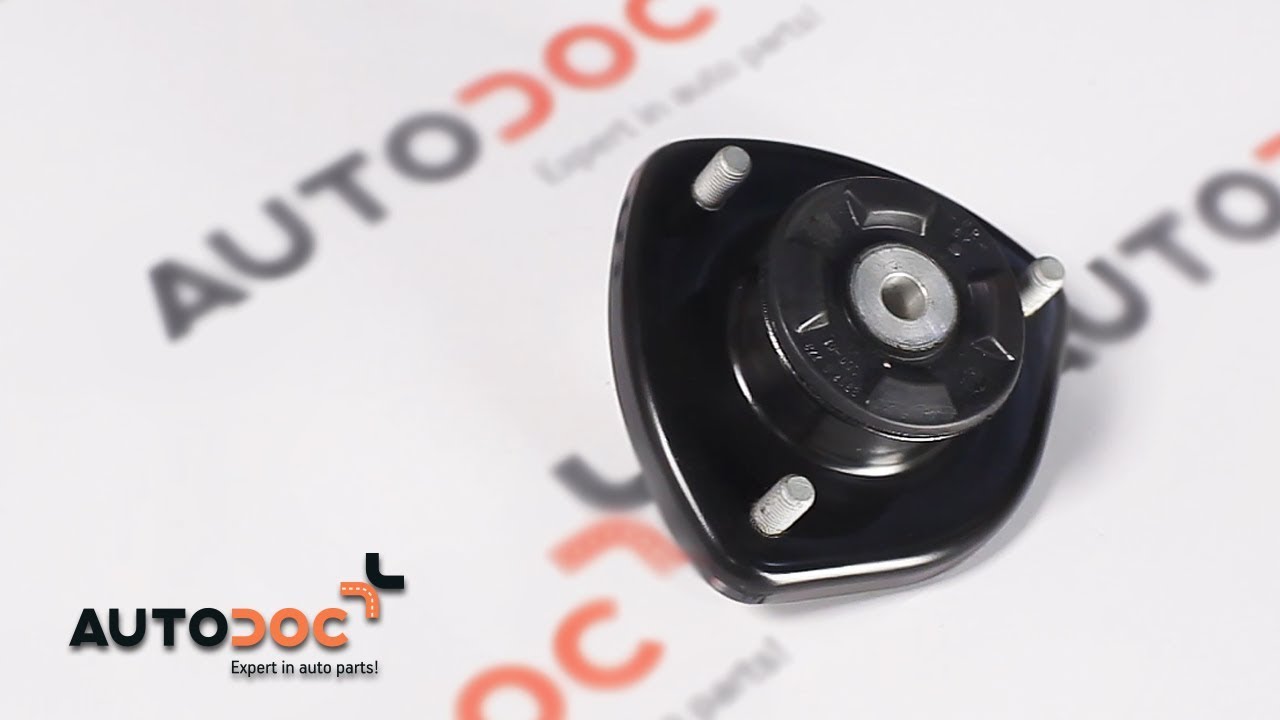

Top strut mount

1180S1305 RIDEX Top strut mount

19,63 GBP

Shop

512722 GSP Top strut mount

23,41 GBP

Shop

V20-0672 VAICO Top strut mount

27,09 GBP

Shop

300 335 2109 MEYLE Top strut mount

30,54 GBP

Shop

35461 ORIGINAL IMPERIUM Top strut mount

30,57 GBP

Shop

21103 FEBI BILSTEIN Top strut mount

31,51 GBP

Shop

25852 01 LEMFÖRDER Top strut mount

31,83 GBP

Shop

72-2458 MAXGEAR Top strut mount

40,45 GBP

Shop

20 92 1103 SWAG Top strut mount

46,27 GBP

Shop

802 178 SACHS Top strut mount

55,68 GBP

Shop

Replacement: strut mount – BMW X5 E53. Tools you might need:

                      Wire brush

                      WD-40 spray

                      Brake cleaner

                      Copper grease

                      Combination spanner #16

                      Combination spanner #19

                      Combination spanner #21

                      Drive socket # 10

                      Drive socket # 21

                      Wheel impact socket #17

                      Ratchet wrench

                      Flat Screwdriver

                      Adjustable wrench

                      Crow bar

                      Hydraulic transmission jack

                      Wheel chock

Buy tools

Replacement: strut mount – BMW X5 E53. AUTODOC experts recommend:

The replacement procedure is identical for the mounts of the right and left shock absorbers of the rear suspension.
Both mounts of the rear shock struts should be replaced simultaneously.
Be sure to replace all self-locking nuts and bolts during installation.
Please note: all work on the car – BMW X5 E53 – should be done with the engine switched off.

Carry out replacement in the following order:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts. Use wheel impact socket #17.
Step 3

Raise the rear of the car and secure on supports.

Step 4

Unscrew the wheel bolts.

AUTODOC recommends:
Important! Hold the wheel while unscrewing the fastening bolts. BMW X5 E53
Step 5

Remove the wheel.
Step 6

Clean the shock absorber fasteners. Use a wire brush. Use WD-40 spray.

Step 7

Unscrew the lower fastener of the shock absorber. Use a combination spanner #21. Use a drive socket #21. Use a ratchet wrench.
Step 8

Remove the fastening bolt.

Step 9

Support the stub axle. Use a hydraulic transmission jack.
Step 10

Detach the lower part of the shock absorber. Use a crowbar.
Step 11

Remove the support from under the stub axle.

Replacement: strut mount – BMW X5 E53. Tip:
Lower the hydraulic transmission jack smoothly, without jerks, to avoid damaging assemblies and mechanisms.
Step 12

Lower the car.
Step 13

Open the boot lid.
Step 14

Remove the boot front lower lining.
Step 15

Unscrew fixing bolts of the protective cover. Use a drive socket #10. Use a ratchet wrench.

Step 16

Remove the cover of the boot side lining.
Step 17

Fold down the backrests of the rear seats.

Step 18

Remove the protective cover.
Step 19

Remove the clips. Use a flat screwdriver.
Step 20

Remove the protective cover.
Step 21

Remove the protective cap of the shock absorber mount. Use a flat screwdriver.
Step 22

Clean the fasteners of the shock absorber upper mount. Use a wire brush. Use WD-40 spray.

Step 23

Unscrew the upper fastener of the shock absorber. Use a drive socket #16. Use an adjustable wrench.

AUTODOC recommends:
To avoid injuries, hold the shock absorber when undoing the fastening bolts.
Step 24

Remove the shock absorber.
Step 25

Clean the shock absorber rod fastener. Use a wire brush. Use WD-40 spray.

Step 26

Remove the shock absorber piston rod fastening. Use a combination spanner #19. Use an adjustable wrench.
Step 27

Remove the shock absorber upper mount.

AUTODOC recommends:
Examine the shock absorber dust cap and the bump stop. Replace them if necessary.
Step 28

Install the shock absorber upper mount.
Step 29

Tighten the shock absorber rod nut. Use a combination spanner #19. Use an adjustable wrench. Use a torque wrench. Tighten it to 25 Nm torque.
Step 30

Clean the shock absorber mounting seats. Use a wire brush. Use WD-40 spray.
Step 31

Place the shock absorber in the wheel arch and secure it.

AUTODOC recommends:
Important! Hold the shock absorber while screwing in the fastening bolts. BMW X5 E53
Step 32

Tighten the top shock absorber fastening. Use a combination spanner #16. Use a torque wrench. Tighten it to 50 Nm torque.
Step 33

Treat the shock absorber fasteners. Use copper grease.

Step 34

Install the protective shock absorber mounting cap.
Step 35

Install the protective cover.
Step 36

Reinstall the pop clips of the protective cover.
Step 37

Return the seat to its original position.

Step 38

Install the protective cover.
Step 39

Tighten fixing bolts of the protective cover. Use a drive socket #10. Use a ratchet wrench.
Step 40

Install the cover of the boot side lining.
Step 41

Install the boot front lower lining.
Step 42

Close the lid of the luggage compartment.
Step 43

Raise the rear of the car and secure on supports.

Step 44

Support the stub axle. Use a hydraulic transmission jack.
Step 45

Attach the lower part of the shock absorber.

Step 46

Install the fastening bolt.
Step 47

Tighten the lower fastener of the shock absorber. Use a combination spanner #21. Use a drive socket #21. Use a torque wrench. Tighten it to 127 Nm torque.
Step 48

Treat the shock absorber fasteners. Use copper grease.

Step 49

Remove the support from under the stub axle.

AUTODOC recommends:
Replacement: strut mount – BMW X5 E53. Lower the transmission jack smoothly, without jerks, to avoid damaging components and mechanisms.
Step 50

Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
Step 51

Clean the brake disk surface. Use a brake cleaner.

AUTODOC recommends:
After applying the spray, wait a few minutes.
Step 52

Install the wheel.

Replacement: strut mount – BMW X5 E53. AUTODOC experts recommend:
To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 53

Screw in the wheel bolts. Use wheel impact socket #17.
Step 54

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 140 Nm torque.
Step 55

Remove the jacks and chocks.
