When to replace the Brake Discs on your ALFA ROMEO 159
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
ALFA ROMEO 159 Sportwagon (939) 1.9 JTS (939BXA1B), ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 8V (939BXE1B), ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 16V (939BXC1B, 939BXC12), ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 16V (939BXC1B), ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 8V (939AXH1B, 939BXH1B), ALFA ROMEO 159 Sportwagon (939) 1.8 MPI (939BXL1A) … View more

The steps may slightly vary depending on the car design.

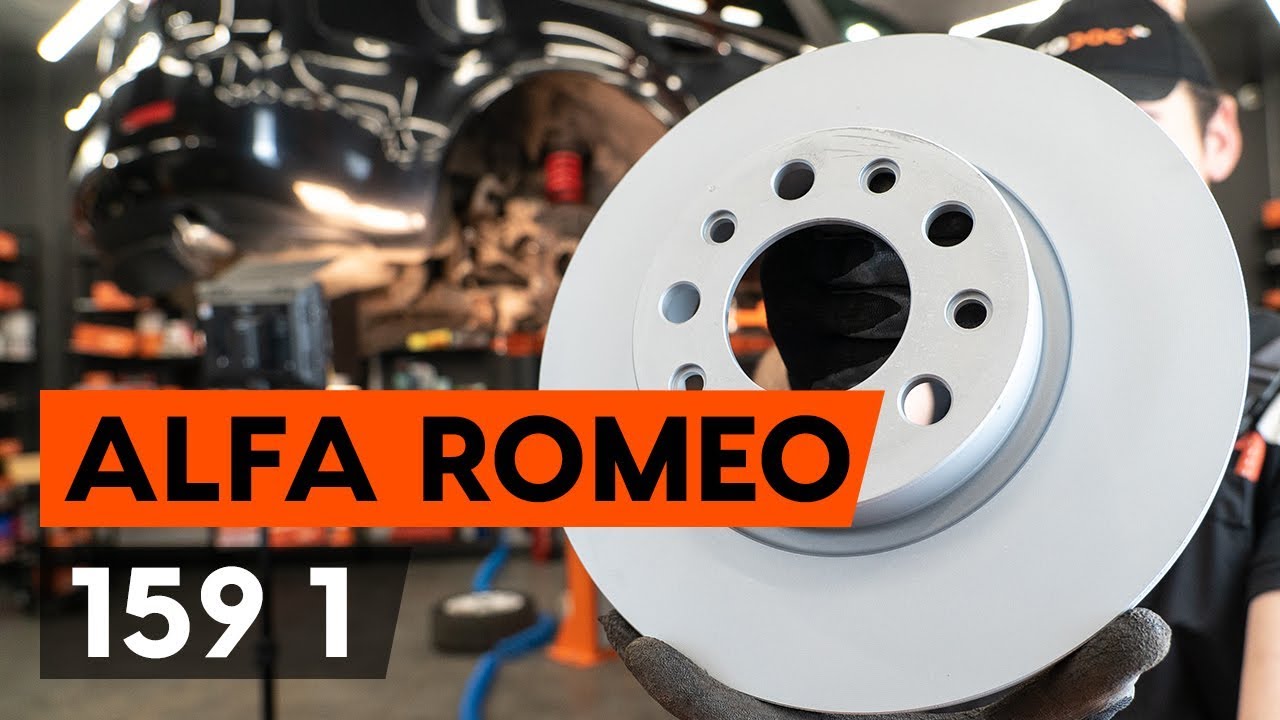

How to change rear brake discs on ALFA ROMEO 159 (939) [TUTORIAL AUTODOC]

video
Published on: 26/07/2019
9K views
All the parts you need to replace – Brake Discs for 159 Sportwagon (939) and other ALFA ROMEO models
How to change Brake disc on Alfa Romeo 159 Sportwagon 1.9 JTDM 16V (939BXC1B, 939BXC12) – step-by-step instructions for straightforward car repair Brake disc
How to change Brake disc on 159 Sportwagon (939) – tips for proper car maintenance
Brake disc for 159 Sportwagon (939) Petrol (160 hp)
Simple DIY car repair steps – Replacing Brake disc on 159 Sportwagon (939)
Brake disc for 159 Sportwagon (939) Diesel (120 hp)
Easy tricks to help you to replace Brake disc on 159 Sportwagon (939)
Brake disc for 159 Sportwagon (939) Diesel (150 hp)
Brake disc removal & installation, incredibly easy steps for 159 Sportwagon (939)
Brake disc for 159 Sportwagon (939) Diesel (136 hp)
Changing Brake disc on 159 Sportwagon (939) – tips for first time repair
Brake disc for 159 Sportwagon (939) Diesel (115 hp)
Main steps for Brake disc replacement on 159 Sportwagon (939)
Brake disc for 159 Sportwagon (939) Petrol (140 hp)
Tools
Replacement: brake discs – Alfa Romeo 159 Sportwagon. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
All-purpose cleaning spray
Copper grease
Combination spanner #13
Combination spanner #15
HEX bit No.H5.
Drive socket # E12
Wheel impact socket #17
Brake caliper wind back tool
Ratchet wrench
Torque wrench
Tap wrench
Crow bar
Wheel chock
Buy tools
Replacement: brake discs – Alfa Romeo 159 Sportwagon. AUTODOC recommends:
  • Replace the brake disks on the car Alfa Romeo 159 Sportwagon in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • Warning! Shut down the engine before starting any work – Alfa Romeo 159 Sportwagon.
Carry out replacement in the following order:
  1. Step 1
    How to change Brake Discs on Alfa Romeo 159 Sportwagon 2006 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 16V (939BXC1B, 939BXC12) 2007 Brake Discs - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    Alfa Romeo 159 Sportwagon 2.4 JTDM (939BXD1B, 939BXD12) 2008 Brake Discs replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  4. Step 4
    Changing Brake Discs on ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 8V (939BXE1B) 2009 by yourself
    Raise the rear of the car and secure on supports.
  5. Step 5
    How to remove ALFA ROMEO 159 2.4 JTDM (939.BXM1B) 2010 Brake Discs - online easy-to-follow instructions
    Unscrew the wheel bolts.
    Replacement: brake discs – Alfa Romeo 159 Sportwagon. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  6. Step 6
    How to replace Brake Discs on ALFA ROMEO 159 Sportwagon (939) 2011: download PDF manuals and video instructions
    Remove the wheel.
  7. Step 7
    How hard is it to do yourself: Brake Discs replacement on Alfa Romeo 159 Sportwagon 1.8 TBi (939BXN1B) 2012 - download illustrated guide
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
  8. Step 8
    Need to know how to renew Brake Discs on ALFA ROMEO 159 2006? This free workshop manual will help you to do it yourself
    Unscrew the brake caliper fastening. Use a combination spanner #13. Use a combination spanner #15.
  9. Step 9
    Changing of Brake Discs on Alfa Romeo 159 Sportwagon 2007 won't be an issue if you follow this illustrated step-by-step guide
    Remove the brake caliper. Use a crowbar.
    Replacement: brake discs – Alfa Romeo 159 Sportwagon. AUTODOC experts recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  10. Step 10
    ALFA ROMEO 159 1.9 JTDM 8V (939AXH1B, 939BXH1B) Brake Discs replacement: online guides and video tutorials
    Remove the brake pads. Use a crowbar.
  11. Step 11
    Replacing Brake Discs on Alfa Romeo 159 Sportwagon 2009 1.9 JTDM 16V (939BXC1B, 939BXC12) by yourself
    Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
  12. Step 12
    159 Sportwagon (939) 2.4 JTDM (939.BXM1B) 2010 Brake Discs DIY replacement workshop manual
    Unscrew the caliper bracket fastening. Use a drive socket #E12. Use a tap wrench.
  13. Step 13
    How to change Brake Discs on ALFA ROMEO 159 Sportwagon (939) 2011 - tips and tricks
    Remove the caliper bracket.
  14. Step 14
    Step-by-step recommendations for DIY replacement Alfa Romeo 159 Sportwagon 2012 2.4 JTDM (939.BXM1B) Brake Discs
    Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
  15. Step 15
    DIY replacement of Brake Discs on ALFA ROMEO 159 Sportwagon (939) 2.0 JTDM (939BXP1B) 2006 is not an issue anymore with our step-by-step tutorial
    Unscrew the brake disc fastening. Use HEX No.H5. Use a ratchet wrench.
  16. Step 16
    How to change Brake Discs on Alfa Romeo 159 Sportwagon 2006 - free PDF and video manuals
    Remove the brake disc.
  17. Step 17
    How to replace ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 16V (939BXC1B, 939BXC12) 2007 Brake Discs - step-by-step manuals and video guides
    Treat the hub where it contacts the brake disk. Use copper grease.
  18. Step 18
    Alfa Romeo 159 Sportwagon 2.4 JTDM (939BXD1B, 939BXD12) 2008 Brake Discs replacement: free workshop manuals
    Install the brake disc.
  19. Step 19
    Changing Brake Discs on ALFA ROMEO 159 Sportwagon (939) 1.9 JTDM 8V (939BXE1B) 2009 by yourself
    Tighten the brake disc fastening. Use HEX No.H5. Use a torque wrench. Tighten it to 7 Nm torque.
  20. Step 20
    How to remove ALFA ROMEO 159 2.4 JTDM (939.BXM1B) 2010 Brake Discs - online easy-to-follow instructions
    Remove the retaining springs of the brake pads.
