When to replace the Brake Calipers on your MERCEDES-BENZ E-CLASS
Recommended replacement interval for the part category Brake caliper : 100000 km
Important!
This replacement procedure can be used for:
MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006), MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI, MERCEDES-BENZ E-Class Saloon (W211) E 320 (211.065), MERCEDES-BENZ E-Class Saloon (W211) E 500 (211.070), MERCEDES-BENZ E-Class Saloon (W211) E 240 (211.061), MERCEDES-BENZ E-Class Saloon (W211) E 270 CDI (211.016), MERCEDES-BENZ E-Class Saloon (W211) E 320 4-matic (211.082), MERCEDES-BENZ E-Class Saloon (W211) E 200 CDI (211.004), MERCEDES-BENZ E-Class Saloon (W211) E 200 CDI (211.004), MERCEDES-BENZ E-Class Saloon (W211) E 200 Kompressor (211.042), MERCEDES-BENZ E-Class Saloon (W211) E 320 CDI (211.026), MERCEDES-BENZ E-Class Saloon (W211) E 400 CDI (211.028), MERCEDES-BENZ E-Class Saloon (W211) E 500 4-matic (211.083), MERCEDES-BENZ E-Class Saloon (W211) E 200 NGT (211.042), MERCEDES-BENZ E-Class Saloon (W211) E 280 CDI (211.023), MERCEDES-BENZ E-Class Saloon (W211) E 280 (211.054), MERCEDES-BENZ E-Class Saloon (W211) E 350 (211.056), MERCEDES-BENZ E-Class Saloon (W211) E 280 CDI (211.020), MERCEDES-BENZ E-Class Saloon (W211) E 320 CDI (211.022), MERCEDES-BENZ E-Class Saloon (W211) E 280 CDI 4-matic (211.084), MERCEDES-BENZ E-Class Saloon (W211) E 420 CDI (211.029), MERCEDES-BENZ E-Class Saloon (W211) E 280 4-matic (211.092), MERCEDES-BENZ E-Class Saloon (W211) E 350 4-matic (211.087), MERCEDES-BENZ E-Class Saloon (W211) E 320 CDI 4-matic (211.089), MERCEDES-BENZ E-Class Saloon (W211) E 200 CDI (211.007), MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.008), MERCEDES-BENZ E-Class Saloon (W211) E 200 Kompressor (211.041), MERCEDES-BENZ E-Class Saloon (W211) E 500 4-matic (211.090), MERCEDES-BENZ E-Class Saloon (W211) E 500 (211.072), MERCEDES-BENZ E-Class Saloon (W211) E 350 CGI (211.057), MERCEDES-BENZ E-Class Saloon (W211) E 300 BlueTEC (211.024), MERCEDES-BENZ E-Class Saloon (W211) E 270 CDI (211.016) … View more

The steps may slightly vary depending on the car design.

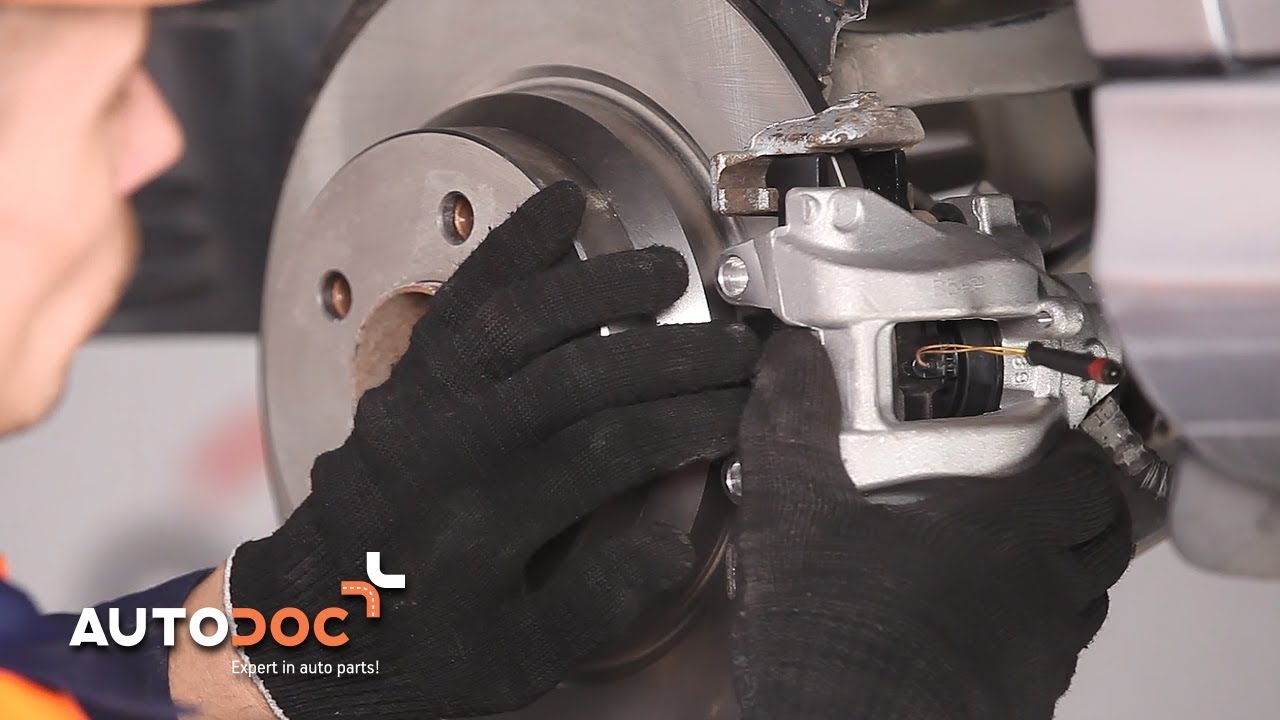

How to change rear brake caliper MERCEDES-BENZ E W211 TUTORIAL | AUTODOC

video
Published on: 26/10/2017
35K views
All the parts you need to replace – Brake Calipers for E-Class Saloon (W211) and other MERCEDES-BENZ models
Alternative products
How to change Brake caliper on W211 E 220 CDI 2.2 (211.006) – step-by-step instructions for straightforward car repair Brake caliper
SKBC-0460644 STARK Brake caliper
39,90 GBP
Shop
422782 A.B.S. Brake caliper
44,82 GBP
Shop
78B0645 RIDEX Brake caliper
45,41 GBP
Shop
343825 BUDWEG CALIPER Brake caliper
77,24 GBP
Shop
0 986 135 055 BOSCH Brake caliper
86,36 GBP
Shop
F 50 221 BREMBO Brake caliper
101,66 GBP
Shop
BC53825 ERA Benelux Brake caliper
101,99 GBP
Shop
38159500 TEXTAR Brake caliper
105,61 GBP
Shop
2133200 NK Brake caliper
113,73 GBP
Shop
8170 343825 TRISCAN Brake caliper
115,66 GBP
Shop
Tools
Replacement: brake caliper – Mercedes W211. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Flare nut spanner №14
Combination spanner #10
Drive socket # 8
Torx bit T40
Wheel impact socket #17
Ratchet wrench
Torque wrench
Flat Screwdriver
Round-nose pliers
Crow bar
Brake hose clip
Brake bleeder kit
Wheel chock
Buy tools
Replacement: brake caliper – Mercedes W211. AUTODOC experts recommend:
  • The replacement procedure is identical for the left and right brake calipers on the same axle.
  • All work should be done with the engine stopped.
Replacement: brake caliper – Mercedes W211. Use the following procedure:
  1. Step 1
    How to change Brake Calipers on W211 2002 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.006) 2003 Brake Calipers - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    W211 E 270 CDI 2.7 (211.016) 2004 Brake Calipers replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  4. Step 4
    Changing Brake Calipers on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.008) 2005 by yourself
    Raise the rear of the car and secure on supports.
  5. Step 5
    How to remove MERCEDES-BENZ E-CLASS E 280 CDI 3.0 (211.020) 2006 Brake Calipers - online easy-to-follow instructions
    Unscrew the wheel bolts.
    Replacement: brake caliper – Mercedes W211. AUTODOC recommends:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  6. Step 6
    How to replace Brake Calipers on MERCEDES-BENZ E-Class Saloon (W211) 2007: download PDF manuals and video instructions
    Remove the wheel.
  7. Step 7
    How hard is it to do yourself: Brake Calipers replacement on W211 E 320 CDI 3.0 (211.022) 2008 - download illustrated guide
    Detach the brake caliper retaining spring. Use a flat screwdriver.
  8. Step 8
    Need to know how to renew Brake Calipers on MERCEDES-BENZ E-CLASS 2009? This free workshop manual will help you to do it yourself
    Disconnect the brake pads wear sensor. Use round-nose pliers.
    Please note!
    Some cars are not equipped with the brake pad wear sensor.
  9. Step 9
    Changing of Brake Calipers on W211 2002 won't be an issue if you follow this illustrated step-by-step guide
    Unscrew the ABS cable holder. Use a drive socket #8. Use a ratchet wrench.
  10. Step 10
    MERCEDES-BENZ E-CLASS E 200 CDI 2.2 (211.007) Brake Calipers replacement: online guides and video tutorials
    Detach the ABS wiring harness bracket.
  11. Step 11
    Remove the dust boot caps of the brake caliper guide pins.
    Step 12
    Replacing Brake Calipers on W211 2004 E 220 CDI 2.2 (211.006) by yourself
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
  12. Step 13
    E-Class Saloon (W211) E 280 CDI 3.0 (211.020) 2005 Brake Calipers DIY replacement workshop manual
    Unscrew the brake caliper fastening. Use Torx T40. Use a ratchet wrench.
  13. Step 14
    How to change Brake Calipers on MERCEDES-BENZ E-Class Saloon (W211) 2006 - tips and tricks
    Remove the guide pins from the brake caliper.
  14. Step 15
    Step-by-step recommendations for DIY replacement W211 2007 E 280 CDI 3.0 (211.020) Brake Calipers
    Spread the brake pads. Use a crowbar.
  15. Step 16
    Clean the area where the brake hose is connected to the caliper, and the guide pins area. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake caliper – Mercedes W211. After applying the spray, wait a few minutes.
    Step 17
    DIY replacement of Brake Calipers on MERCEDES-BENZ E-Class Saloon (W211) E 320 CDI 3.2 (211.026) 2008 is not an issue anymore with our step-by-step tutorial
    Clamp the brake hose off using a brake hose clamp.
  16. Step 18
    How to change Brake Calipers on W211 2002 - free PDF and video manuals
    Loosen the brake hose fastening. Use a flare nut spanner #14.
  17. Step 19
    How to replace MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.006) 2003 Brake Calipers - step-by-step manuals and video guides
    Remove the brake caliper.
    Replacement: brake caliper – Mercedes W211. Professionals recommend:
    When replacing the brake caliper, it is recommended to check the brake hose for damages and, if necessary, to replace it with a new one.When replacing a brake caliper it is recommended to replace brake pads, check the state of the brake discs and replace them with new ones if necessary.Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
  18. Step 20
    W211 E 270 CDI 2.7 (211.016) 2004 Brake Calipers replacement: free workshop manuals
    Remove the brake pads.
  19. Step 21
    Changing Brake Calipers on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.008) 2005 by yourself
    Unscrew the brake hose from the brake caliper. Use a flare nut spanner #14.
  20. Step 22
    How to remove MERCEDES-BENZ E-CLASS E 280 CDI 3.0 (211.020) 2006 Brake Calipers - online easy-to-follow instructions
    Disconnect the brake hose.
  21. Step 23
    Treat the brake hose. Use a brake cleaner.
    Replacement: brake caliper – Mercedes W211. AUTODOC experts recommend:
    After applying the spray, wait a few minutes.
    Step 24
    How to replace Brake Calipers on MERCEDES-BENZ E-Class Saloon (W211) 2007: download PDF manuals and video instructions
    Install and fix the brake hose into a new caliper. Use a flare nut spanner #14.
  22. Step 25
    How hard is it to do yourself: Brake Calipers replacement on W211 E 320 CDI 3.0 (211.022) 2008 - download illustrated guide
    Install the brake pads.
    Replacement: brake caliper – Mercedes W211. Tip:
    If going to use the old brake pads, clean them.
  23. Step 26
    Need to know how to renew Brake Calipers on MERCEDES-BENZ E-CLASS 2009? This free workshop manual will help you to do it yourself
    Install the brake caliper and fix it.
  24. Step 27
    Screw in the guide pins.
    Step 28
    Changing of Brake Calipers on W211 2002 won't be an issue if you follow this illustrated step-by-step guide
    Tighten the brake caliper fasteners. Use Torx T40. Use a torque wrench. Tighten it to 28 Nm torque.
