When to replace the Pollen Filter on your FIAT STILO
Recommended replacement interval for the part category Pollen filter : 1 year / 20000 km
Important!
This replacement procedure can be used for:
FIAT STILO (192) 1.2 16V (192_XA1B), FIAT STILO (192) 1.6 16V (192_XB1A), FIAT STILO (192) 1.8 16V (192AXC1A, 192BXC1A), FIAT STILO (192) 1.9 JTD (192_XF1A), FIAT STILO (192) 1.9 JTD (192_XE1A), FIAT STILO (192) 2.4 20V (192_XD1A, 192AXD12), FIAT STILO (192) 1.4 16V (192AXH1B, 192BXH1B), FIAT STILO (192) 1.9 JTD, FIAT STILO (192) 1.4 16V, FIAT STILO (192) 1.9 D Multijet, FIAT STILO (192) 1.9 D Multijet, FIAT STILO (192) 1.9 D Multijet, FIAT STILO (192) 1.9 JTD, FIAT STILO (192) 1.9 JTD, FIAT STILO (192) 1.9 JTD (192AXS1B, 192BXS1B), FIAT STILO (192) 1.6 16V … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

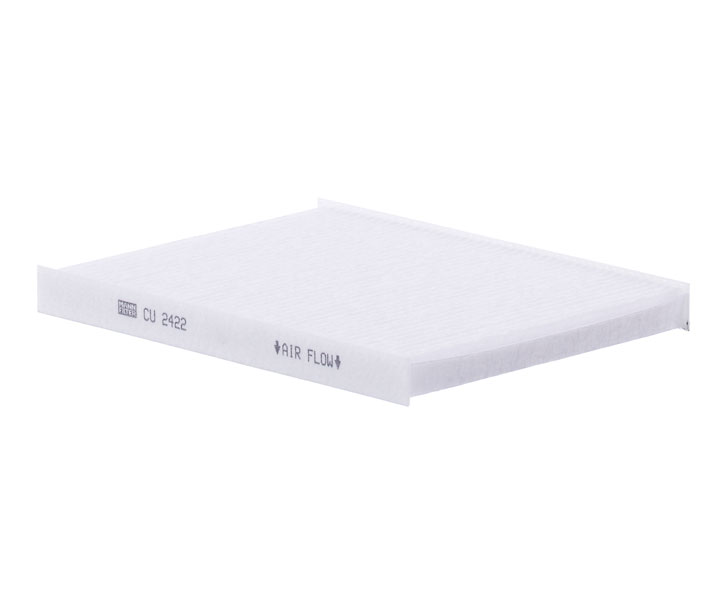

All the parts you need to replace – Pollen Filter for STILO (192) and other FIAT models
Alternative products
How to change Pollen filter on Fiat Stilo 192 1.9 JTD – step-by-step instructions for straightforward car repair Pollen filter
Tools
Replacement: pollen filter – FIAT STILO (192). Tools you might need:
Phillips Screwdriver
Buy tools
Replacement: pollen filter – FIAT STILO (192). AUTODOC recommends:
  • Replace the cabin filter at least once every six months, in early spring and autumn seasons.
  • Follow the terms, recommendations and requirements of the part operation provided by the manufacturer.
  • If the air flow into the cabin has sharply reduced, replace the filter before a scheduled maintenance.
  • In some cars, the heater unit is located on the passenger side.
  • All work should be done with the engine stopped.
Replacement: pollen filter – FIAT STILO (192). Recommended sequence of steps:
  1. Step 1
    How to change Pollen Filter on Fiat Stilo 192 2001 - free PDF and video manuals
    Move the passenger seat fully backwards.
  2. Step 2
    How to replace FIAT STILO (192) 1.9 JTD 2002 Pollen Filter - step-by-step manuals and video guides
    Pry up, carefully release from the fasteners and remove the side trim panel on the passenger side.
  3. Step 3
    Fiat Stilo 192 1.6 16V 2003 Pollen Filter replacement: free workshop manuals
    Unscrew the fasteners of the cabin filter housing cover. Use a Phillips screwdriver.
  4. Step 4
    Changing Pollen Filter on FIAT STILO (192) 1.9 D Multijet 2004 by yourself
    Remove the cabin filter housing cover.
    AUTODOC recommends:
    Replacement: pollen filter – FIAT STILO (192). Do not use excessive force when removing the part as this may damage it.
  5. Step 5
    How to remove FIAT STILO 1.2 16V 2005 Pollen Filter - online easy-to-follow instructions
    Remove the cabin filter.
    Replacement: pollen filter – FIAT STILO (192). Tip from AUTODOC experts:
    Do not attempt to clean and reuse the filter - it will affect the quality of air cleaning inside the car.
  6. Step 6
    How to replace Pollen Filter on FIAT STILO (192) 2006: download PDF manuals and video instructions
    Install the cabin filter to its mounting seat.
    Replacement: pollen filter – FIAT STILO (192). Professionals recommend:
    Check out the correct location of the filter element. Do not skew.Follow the air flow direction arrow on the filter.Attention! Use quality filters – FIAT STILO (192).
  7. Step 7
    How hard is it to do yourself: Pollen Filter replacement on Fiat Stilo 192 2.4 20V (192_XD1A, 192AXD12) 2007 - download illustrated guide
    Reinstall the cabin filter housing cover.
