Recommended replacement interval for the part category Handbrake shoes : 100000 km

Important!

This replacement procedure can be used for:
MERCEDES-BENZ CLC (CL203) CLC 220 CDI (203.708), MERCEDES-BENZ CLC (CL203) CLC 160 (203.731), MERCEDES-BENZ CLC (CL203) CLC 250, MERCEDES-BENZ CLC (CL203) CLC 220 CDI (203.708), MERCEDES-BENZ CLC (CL203) CLC 200 CDI (203.707), MERCEDES-BENZ CLC (CL203) CLC 350 (203.756), MERCEDES-BENZ CLC (CL203) CLC 230 (203.752), MERCEDES-BENZ CLC (CL203) CLC 200 Kompressor (203.741), MERCEDES-BENZ CLC (CL203) CLC 180 Kompressor (203.746) … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

All the parts you need to replace – Handbrake Shoes for CLC (CL203) and other MERCEDES-BENZ models

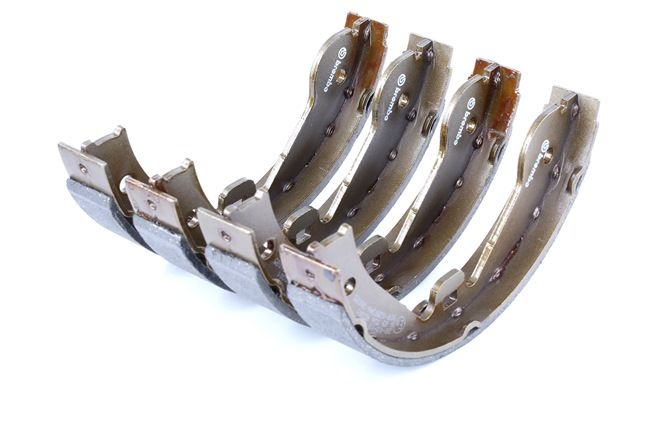

Handbrake shoes

        Handbrake shoes for CLC (CL203) Petrol (143 hp)

        Handbrake shoes for CLC (CL203) Petrol (184 hp)

        Handbrake shoes for CLC (CL203) Petrol (204 hp)

        Handbrake shoes for CLC (CL203) Petrol (272 hp)

        Handbrake shoes for CLC (CL203) Diesel (122 hp)

        Handbrake shoes for CLC (CL203) Diesel (150 hp)

        Handbrake shoes for CLC (CL203) Petrol (204 hp)

        Handbrake shoes for CLC (CL203) Petrol (129 hp)

        Handbrake shoes for CLC (CL203) Diesel (136 hp)

Replacement: handbrake shoe – MERCEDES-BENZ CLC-CLASS (CL203). Tools you need:

                        Wire brush

                        WD-40 spray

                        Brake cleaner

                        All-purpose cleaning spray

                        Ceramic grease

                        Torque wrench

                        Combination spanner #17

                        Drive socket # 13

                        Drive socket # 17

                        HEX bit No.H5

                        Wheel impact socket #17

                        Ratchet wrench

                        Flat Screwdriver

                        Pin punch

                        Hammer

                        Tap wrench

                        Long nose pliers

                        Crow bar

                        Wheel chock

Buy tools

Replacement: handbrake shoe – MERCEDES-BENZ CLC-CLASS (CL203). Professionals recommend:

All work should be done with the engine stopped.

Replacement: handbrake shoe – MERCEDES-BENZ CLC-CLASS (CL203). Take the following steps:

Step 1

Open the bonnet.

Step 2

Unscrew the brake fluid reservoir cap.

Step 3

Secure the wheels with chocks.

Step 4

Loosen the wheel bolts. Use wheel impact socket #17. Use a tap wrench.
Step 5

Raise the car.

Replacement: handbrake shoe – MERCEDES-BENZ CLC-CLASS (CL203). AUTODOC recommends:
If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
Step 6

Unscrew the wheel bolts.

AUTODOC recommends:
To avoid injury, hold up the wheel when unscrewing the bolts.
Step 7

Remove the wheel.
Step 8

Clean the brake pad guide pins. Use a wire brush. Use all-purpose cleaning spray.
Step 9

Remove the brake pad guide pins. Use a pin punch. Use a hammer.
Step 10

Remove the retaining spring of the brake pads.
Step 11

Spread the brake pads. Use a crowbar (2 pieces).
Step 12

Remove the brake pads.
Step 13

Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
Step 14

Unscrew the brake caliper fasteners. Use a combination spanner #17.
Step 15

Remove the fastening bolts.
Step 16

Remove the brake caliper.

Replacement: handbrake shoe – MERCEDES-BENZ CLC-CLASS (CL203). AUTODOC experts recommend:
Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
Step 17

Clean the brake disc fastener. Use a wire brush. Use WD-40 spray.
Step 18

Unscrew the brake disc fasteners. Use HEX No.H5. Use a ratchet wrench.
Step 19

Remove the fastening bolt.
Step 20

Remove the brake disc.
Step 21

Remove the upper brake shoe return spring. Use a crowbar.
Step 22

Remove the hold-down springs of the parking brake shoes. Use long nose pliers.
Step 23

Remove the parking brake adjuster.
Step 24

Remove the lower brake shoe return spring. Use a flat screwdriver.
Step 25

Remove the parking brake shoes.
Step 26

Clean the mounting seats of the parking brake shoes. Use a wire brush. Use all-purpose cleaning spray.
Step 27

Install the upper brake shoe return spring.
Step 28

Install the parking brake adjuster.
Step 29

Install new parking brake shoes.
Step 30

Install the hold-down springs of the parking brake shoes. Use long nose pliers.
Step 31

Install the lower return spring. Use a flat screwdriver.
Step 32

Clean the wheel hub. Use a wire brush.
Step 33

Treat the contacting surface. Use ceramic grease.
Step 34

Install the brake disc.
Step 35

Install the fastening bolt.
Step 36

Tighten the brake disc fasteners. Use HEX No.H5. Use a torque wrench. Tighten it to 10 Nm torque.
Step 37

Set the parking brake adjuster in the correct position. Use a flat screwdriver.
Step 38

Install the brake caliper and fasten it.
Step 39

Install the fastening bolts.

Step 40

Tighten the brake caliper fasteners. Use a drive socket #17. Use a torque wrench. Tighten it to 65 Nm torque.
Step 41

Install the brake pads.
Step 42

Install the retaining spring of the brake pads.
Step 43

Install the brake pad guide pins. Use a pin punch. Use a hammer.
Step 44

Clean the wheel rim mounting seat. Use a wire brush.
Step 45

Treat the surface where the brake disc contacts the wheel rim. Use ceramic grease.
Step 46

Clean the brake disk surface. Use a brake cleaner.
Step 47

Install the wheel.

AUTODOC recommends:
Important! Hold the wheel while screwing in the fastening bolts. MERCEDES-BENZ CLC-CLASS (CL203)
Step 48

Screw in the wheel bolts. Use wheel impact socket #17. Use a ratchet wrench.
Step 49

Lower the car and working in a cross order, tighten the wheel bolts. Use wheel impact socket #17. Use a torque wrench. Tighten it to 110 Nm torque.
Step 50

Remove the jacks and chocks.

Replacement: handbrake shoe – MERCEDES-BENZ CLC-CLASS (CL203). Tip from AUTODOC:
Without starting the engine, press the brake pedal several times until you feel significant resistance.Check the brake fluid level in the expansion tank and top up if necessary.
Step 51

Tighten the brake fluid reservoir cap.

Step 52

Close the bonnet.
