Change MERCEDES-BENZ E-CLASS Control Arm yourself – manuals and video tutorials

How to change front lower arm on Mercedes W211 – replacement guide

Steps: 27
downloads: 4
Download your free tutorial and fix MERCEDES-BENZ E-Class Saloon (W211) E 200 1.8 Kompressor (211.042) problems yourself
Download for free 6.89 MB Discuss on the forum
Open in a new tab
Important!
This replacement procedure can be used for:
MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006), MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)

The steps may slightly vary depending on the car design.

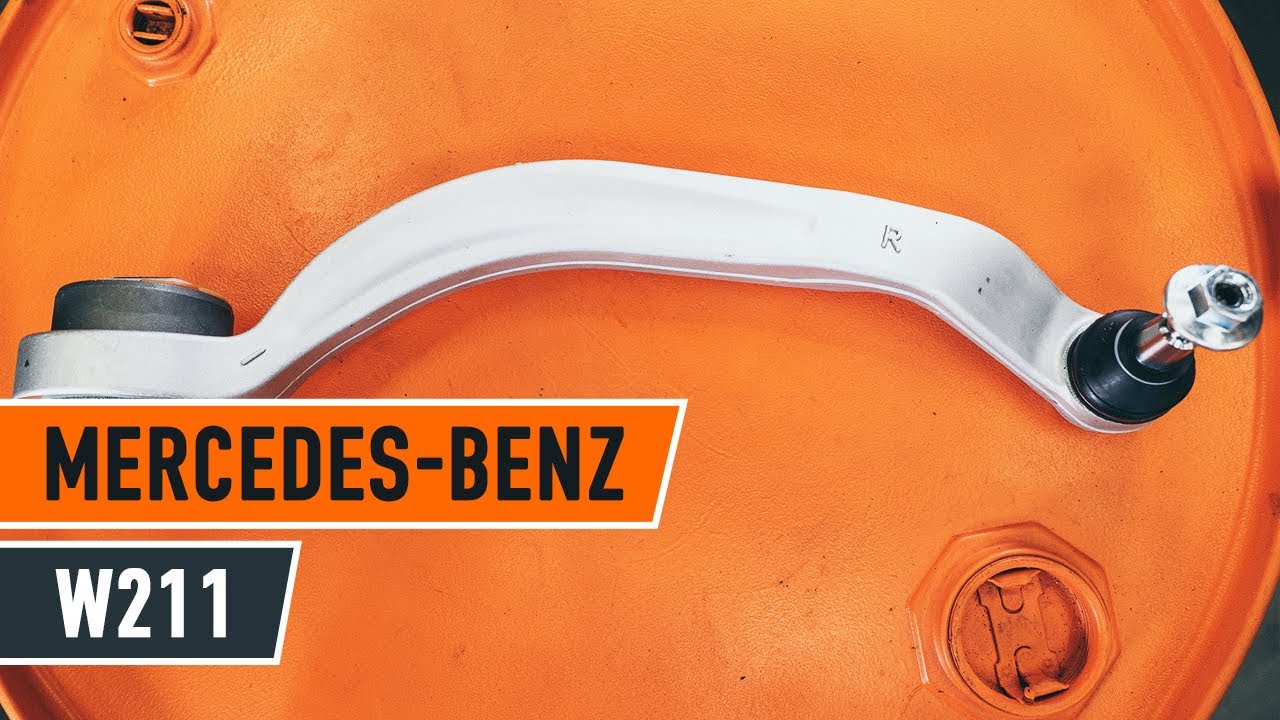

How to change front suspension arm MERCEDES-BENZ E W211 TUTORIAL | AUTODOC

Published on: 24/10/2017
43K views
[subscribe_button]
Replacement: front lower arm – Mercedes W211. Tools you need:
Replacement: front lower arm – Mercedes W211. Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #21
Drive socket # E18
Drive socket # 21
Wheel impact socket #17
Ratchet wrench
Torque wrench
Ball joint puller
Crow bar
Hydraulic transmission jack
Wheel chock
All the parts you need to replace – Control Arm for E-Class Saloon (W211) and other MERCEDES-BENZ models
How to change Link Set, wheel suspension on Mercedes W211 E 220 CDI 2.2 (211.006) – step-by-step instructions for straightforward car repair
Link Set, wheel suspension
How to change Link Set, wheel suspension on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006) – tips for proper car maintenance
MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006)
Simple DIY car repair steps – Replacing Link Set, wheel suspension on MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
How to change Rod / Strut, wheel suspension on Mercedes W211 E 220 CDI 2.2 (211.006) – step-by-step instructions for straightforward car repair
Rod / Strut, wheel suspension
How to change Rod / Strut, wheel suspension on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006) – tips for proper car maintenance
MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006)
Simple DIY car repair steps – Replacing Rod / Strut, wheel suspension on MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
How to change Suspension Cross Brace on Mercedes W211 E 220 CDI 2.2 (211.006) – step-by-step instructions for straightforward car repair
Suspension Cross Brace
How to change Suspension Cross Brace on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006) – tips for proper car maintenance
MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006)
Simple DIY car repair steps – Replacing Suspension Cross Brace on MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
How to change Track Control Arm on Mercedes W211 E 220 CDI 2.2 (211.006) – step-by-step instructions for straightforward car repair
Track Control Arm
How to change Track Control Arm on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006) – tips for proper car maintenance
MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI (211.006)
Simple DIY car repair steps – Replacing Track Control Arm on MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
MERCEDES-BENZ E-Class T-modell (S211) E 220 T CDI (211.206, 211.606)
Replacement: front lower arm – Mercedes W211. AUTODOC experts recommend:
  • The replacement procedure is identical for the left and right lower control arms.
  • All work should be done with the engine stopped.
Replacement: front lower arm – Mercedes W211. Take the following steps:
  1. How to change Control Arm on Mercedes W211 2002 - free PDF and video manuals
    Step 1
    Secure the wheels with chocks.
  2. How to replace MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.006) 2003 Control Arm - step-by-step manuals and video guides
    Step 2
    Loosen the wheel mounting bolts.Use wheel impact socket #17.
  3. Mercedes W211 E 270 CDI 2.7 (211.016) 2004 Control Arm replacement: free workshop manuals
    Step 3
    Raise the front of the car and secure on supports.
  4. Changing Control Arm on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.008) 2005 by yourself
    Step 4
    Unscrew the wheel bolts.
    Replacement: front lower arm – Mercedes W211. Tip from AUTODOC:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  5. How to remove MERCEDES-BENZ E-CLASS E 280 CDI 3.0 (211.020) 2006 Control Arm - online easy-to-follow instructions
    Step 5
    Remove the wheel.
  6. How to replace Control Arm on MERCEDES-BENZ E-Class Saloon (W211) 2007: download PDF manuals and video instructions
    Step 6
    Clean the fastener connecting the ball joint to the steering knuckle.Use a wire brush.Use WD-40 spray.
    Step 7
    Unscrew the ball joint fastening to the steering knuckle.Use a drive socket #21.Use a ratchet wrench.
  7. How hard is it to do yourself: Control Arm replacement on Mercedes W211 E 320 CDI 3.0 (211.022) 2008 - download illustrated guide
    Step 8
    Disconnect the ball joint from the steering knuckle.Use a ball joint puller.
  8. Need to know how to renew Control Arm on MERCEDES-BENZ E-CLASS ? This free workshop manual will help you to do it yourself
    Step 9
    Clean the fasteners connecting the control arm to the subframe.Use a wire brush.Use WD-40 spray.
  9. Changing of Control Arm on Mercedes W211 2002 won't be an issue if you follow this illustrated step-by-step guide
    Step 10
    Unscrew the arm fastening from the subframe.Use a combination spanner #21.Use a drive socket #E18.Use a ratchet wrench.
  10. MERCEDES-BENZ E-CLASS E 200 CDI 2.2 (211.007) Control Arm replacement: online guides and video tutorials
    Step 11
    Remove the fastening bolt.
  11. Replacing Control Arm on Mercedes W211 2004 E 220 CDI 2.2 (211.006) by yourself
    Step 12
    Remove the arm.Use a crowbar.
  12. E-Class Saloon (W211) E 280 CDI 3.0 (211.020) 2005 Control Arm DIY replacement workshop manual
    Step 13
    Clean the mounting seats and the thread of the suspension arm.Use a wire brush.Use WD-40 spray.
  13. How to change Control Arm on MERCEDES-BENZ E-Class Saloon (W211) 2006 - tips and tricks
    Step 14
    Install a new arm.
    Replacement: front lower arm – Mercedes W211. Professionals recommend:
    During the installation process, use only new bolts and nuts.Do not damage the ball joint cover.
  14. Step-by-step recommendations for DIY replacement Mercedes W211 2007 E 280 CDI 3.0 (211.020) Control Arm
    Step 15
    Connect the ball joint to the steering knuckle.
    Step 16
    Install the fastening bolt.
  15. DIY replacement of Control Arm on MERCEDES-BENZ E-Class Saloon (W211) E 320 CDI 3.2 (211.026) 2008 is not an issue anymore with our step-by-step tutorial
    Step 17
    Screw the fastener connecting the control arm to the subframe.
    Step 18
    Tighten the ball joint fastener. Use a drive socket #21.Use a torque wrench.Tighten it to 84 Nm torque.
  16. How to change Control Arm on Mercedes W211 2002 - free PDF and video manuals
    Step 19
    Prop up the steering knuckle.Use a hydraulic transmission jack.
  17. How to replace MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.006) 2003 Control Arm - step-by-step manuals and video guides
    Step 20
    Tighten the arm fastening to the subframe.Use a combination spanner #21.Use a drive socket #E18.Use a torque wrench.Tighten it to 60 Nm torque.
  18. Mercedes W211 E 270 CDI 2.7 (211.016) 2004 Control Arm replacement: free workshop manuals
    Step 21
    Remove the support from under the steering knuckle.
    AUTODOC recommends:
    Mercedes W211 – Do not lower the transmission jack sharply to avoid damaging components and mechanisms of the car.
  19. Changing Control Arm on MERCEDES-BENZ E-Class Saloon (W211) E 220 CDI 2.2 (211.008) 2005 by yourself
    Step 22
    Treat the surface where the brake disc contacts the wheel rim. Use copper grease.
  20. How to remove MERCEDES-BENZ E-CLASS E 280 CDI 3.0 (211.020) 2006 Control Arm - online easy-to-follow instructions
    Step 23
    Clean the brake disk surface.Use a brake cleaner.
    Replacement: front lower arm – Mercedes W211. Tip:
    After applying the spray, wait a few minutes.
  21. How to replace Control Arm on MERCEDES-BENZ E-Class Saloon (W211) 2007: download PDF manuals and video instructions
    Step 24
    Install the wheel.
    AUTODOC recommends:
    Important! Hold the wheel while screwing in the fastening bolts. Mercedes W211
  22. How hard is it to do yourself: Control Arm replacement on Mercedes W211 E 320 CDI 3.0 (211.022) 2008 - download illustrated guide
    Step 25
    Screw in the wheel bolts.Use wheel impact socket #17.
  23. Need to know how to renew Control Arm on MERCEDES-BENZ E-CLASS ? This free workshop manual will help you to do it yourself
    Step 26
    Lower the car and working in a cross order, tighten the wheel bolts.Use wheel impact socket #17.Use a torque wrench.Tighten it to 120 nm torque.
  24. Changing of Control Arm on Mercedes W211 2002 won't be an issue if you follow this illustrated step-by-step guide
    Step 27
    Remove the jacks and chocks.
