Important!
This replacement procedure can be used for:
VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 TDI 16V, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 2.0 TFSI, VW Passat Variant (3C5) 1.8 TSI, VW Passat Variant (3C5) 2.0 TDI, VW Passat Variant (3C5) 1.4 TSI EcoFuel, VW Passat Variant (3C5) 2.0 BlueTDI, VW Passat Variant (3C5) 1.8 TSI View more

The steps may slightly vary depending on the car design.

How to change front springs / front coil springs on VW PASSAT B6 (3C5) [TUTORIAL AUTODOC]

video
All the parts you need to replace – Springs for Passat Variant (3C5) and other VW models
How to change Coil spring on Passat B6 Variant 2.0 TDI – step-by-step instructions for straightforward car repair

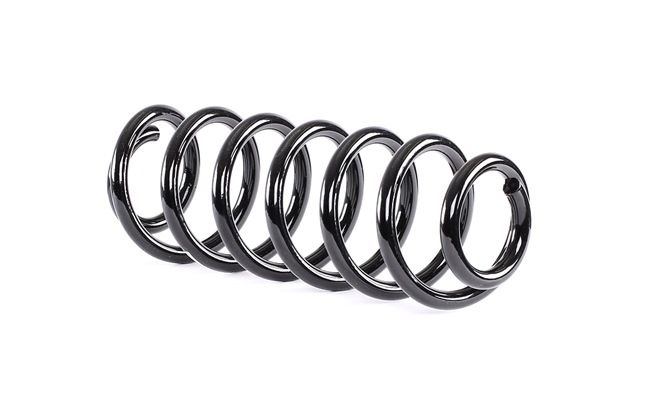

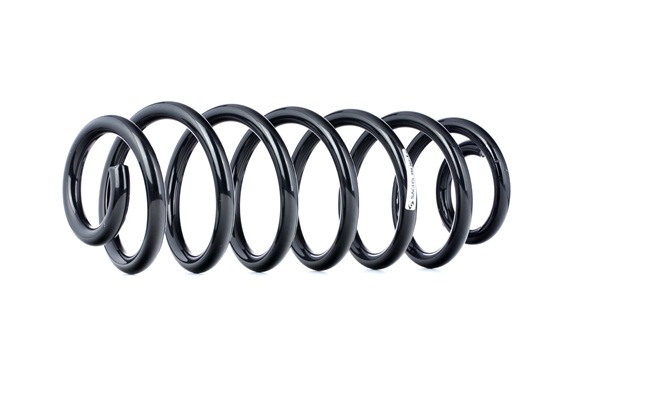

Coil spring
How to change Supplementary Spring on Passat B6 Variant 2.0 TDI – step-by-step instructions for straightforward car repair
Supplementary Spring
How to change Coil spring buffer on Passat B6 Variant 2.0 TDI – step-by-step instructions for straightforward car repair
Coil spring buffer
Tools
Replacement: coil springs – VW Passat 3C5. Tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
HEX bit no.H6.
XZN socket bit # 14
12-point socket # 24
Drive socket # 13
Drive socket # 16
Drive socket # 18
Drive socket # 19
Drive socket # 21
Wheel impact socket #17
Ratchet wrench
Torque wrench
Shock absorber socket
Pin punch
Tap wrench
Clip removal tool
Crow bar
Hydraulic strut spring compressor
Hydraulic transmission jack
Fender cover
Wheel chock
Replacement: coil springs – Passat B6 3C Variant. AUTODOC recommends:
  • Both coil springs of the front suspension should be replaced simultaneously.
  • The replacement procedure is identical for the left and right coil springs of the front suspension.
  • All work should be done with the engine stopped.
Replacement: coil springs – VW Passat Variant B6. Use the following procedure:
  1. Step 1
    How to change Springs on Passat B6 Variant 2005 - free PDF and video manuals
    Open the bonnet.
  2. Step 2
    How to replace VW Passat Variant (3C5) 2.0 TDI 2006 Springs - step-by-step manuals and video guides
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
  3. Step 3
    Passat B6 Variant 2.0 TDI 16V 2007 Springs replacement: free workshop manuals
    Detach the windscreen washer nozzle hose. Use a clip removal tool.
  4. Step 4
    Changing Springs on VW Passat Variant (3C5) 2.0 FSI 2008 by yourself
    Remove the clips of the plastic cowl grille.
  5. Step 5
    How to remove VW PASSAT 2.0 TDI 4motion 2009 Springs - online easy-to-follow instructions
    Raise the wiper plastic cowl grille.
  6. Step 6
    How to replace Springs on VW Passat Variant (3C5) 2010: download PDF manuals and video instructions
    Clean the fasteners of the shock strut upper mount. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Springs replacement on Passat B6 Variant 1.4 TSI EcoFuel 2011 - download illustrated guide
    Loosen the upper fastener of the shock strut mount. Use a drive socket #13. Use a ratchet wrench.
  8. Step 8
    Need to know how to renew Springs on VW PASSAT 2005? This free workshop manual will help you to do it yourself
    Secure the wheels with chocks.
  9. Step 9
    Changing of Springs on Passat B6 Variant 2006 won't be an issue if you follow this illustrated step-by-step guide
    Loosen the wheel hub bolt. Use drive 12-point socket #24. Use a tap wrench.
  10. Step 10
    VW PASSAT 2.0 TDI Springs replacement: online guides and video tutorials
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  11. Step 11
    Replacing Springs on Passat B6 Variant 2008 2.0 TDI by yourself
    Raise the front of the car and secure on supports.
  12. Step 12
    Passat Variant (3C5) 2.0 TDI 4motion 2009 Springs DIY replacement workshop manual
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. VW Passat B6 3C Variant
  13. Step 13
    How to change Springs on VW Passat Variant (3C5) 2010 - tips and tricks
    Remove the wheel.
  14. Step 14
    Step-by-step recommendations for DIY replacement Passat B6 Variant 2011 2.0 TDI 4motion Springs
    Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
  15. Step 15
    DIY replacement of Springs on VW Passat Variant (3C5) 1.9 TDI 2005 is not an issue anymore with our step-by-step tutorial
    Unscrew the fastener connecting the stabilizer link to the shock strut. Use a drive socket #18. Use a ratchet wrench.
  16. Step 16
    How to change Springs on Passat B6 Variant 2005 - free PDF and video manuals
    Remove the stabilizer rod.
  17. Step 17
    How to replace VW Passat Variant (3C5) 2.0 TDI 2006 Springs - step-by-step manuals and video guides
    Disconnect the wiring and the brake hose from the bracket on the shock strut. Use a crowbar.
  18. Step 18
    Passat B6 Variant 2.0 TDI 16V 2007 Springs replacement: free workshop manuals
    Clean the fasteners connecting the shock strut to the steering knuckle. Use a wire brush. Use WD-40 spray.
  19. Step 19
    Changing Springs on VW Passat Variant (3C5) 2.0 FSI 2008 by yourself
    Unscrew the lower fastener connecting the shock strut to the steering knuckle. Use a drive socket #18. Use XZN #14. Use a tap wrench. Use a ratchet wrench.
  20. Step 20
    How to remove VW PASSAT 2.0 TDI 4motion 2009 Springs - online easy-to-follow instructions
    Remove the fastening bolt. Use drive 12-point socket #24.
  21. Step 21
    How to replace Springs on VW Passat Variant (3C5) 2010: download PDF manuals and video instructions
    Clean all joints of the arm. Use a wire brush. Use WD-40 spray.
  22. Step 22
    How hard is it to do yourself: Springs replacement on Passat B6 Variant 1.4 TSI EcoFuel 2011 - download illustrated guide
    Unscrew the fastener connecting the ball joint to the suspension control arm. Use a drive socket #16. Use a ratchet wrench.
  23. Step 23
    Need to know how to renew Springs on VW PASSAT 2005? This free workshop manual will help you to do it yourself
    Disconnect the ball joint from the arm. Use a crowbar.
  24. Step 24
    Changing of Springs on Passat B6 Variant 2006 won't be an issue if you follow this illustrated step-by-step guide
    Remove the drive shaft. Use a pin punch.
    Replacement: coil springs – VW Passat 3C5. Tip:
    Make sure that the drive shaft is not unloaded (when the car is jacked).
  25. Step 25
    VW PASSAT 2.0 TDI Springs replacement: online guides and video tutorials
    Prop up the steering knuckle. Use a hydraulic transmission jack.
  26. Step 26
    Replacing Springs on Passat B6 Variant 2008 2.0 TDI by yourself
    Remove the fastening bolt.
  27. Step 27
    Passat Variant (3C5) 2.0 TDI 4motion 2009 Springs DIY replacement workshop manual
    Release the lower fastener connecting the shock strut to the steering knuckle. Use a special drive socket to remove the shock absorber. Use a ratchet wrench.
  28. Step 28
    How to change Springs on VW Passat Variant (3C5) 2010 - tips and tricks
    Clean the fasteners connecting the shock strut to the steering knuckle. Use a wire brush. Use WD-40 spray.
  29. Step 29
    Step-by-step recommendations for DIY replacement Passat B6 Variant 2011 2.0 TDI 4motion Springs
    Disconnect the steering knuckle from the shock absorber strut.
  30. Step 30
    DIY replacement of Springs on VW Passat Variant (3C5) 1.9 TDI 2005 is not an issue anymore with our step-by-step tutorial
    Unscrew the top fastening of the shock strut mount.
    Replacement: coil springs – Passat B6 3C Variant. AUTODOC experts recommend:
    To avoid injuries, hold the shock strut when undoing the fastening bolts.
  31. Step 31
    How to change Springs on Passat B6 Variant 2005 - free PDF and video manuals
    Remove the suspension strut.
  32. Step 32
    How to replace VW Passat Variant (3C5) 2.0 TDI 2006 Springs - step-by-step manuals and video guides
    Set the shock absorber strut on the spring compressor tool.
    Replacement: coil springs – VW Passat Variant B6. AUTODOC experts recommend:
    Note that when using a spring compressor, spring coils need to be securely gripped, compressing the spring on the opposite sides.Ensure the correct position of the spring in the retainer.Make sure that the spring coils tightly entered the lock handles.
  33. Step 33
    Passat B6 Variant 2.0 TDI 16V 2007 Springs replacement: free workshop manuals
    Compress the spring.
  34. Step 34
    Changing Springs on VW Passat Variant (3C5) 2.0 FSI 2008 by yourself
    Treat the shock strut rod. Use a wire brush. Use WD-40 spray.
  35. Step 35
    How to remove VW PASSAT 2.0 TDI 4motion 2009 Springs - online easy-to-follow instructions
    Remove the strut piston rod nut. Use HEX No.H6. Use a drive socket #21. Use a ratchet wrench.
  36. Step 36
    How to replace Springs on VW Passat Variant (3C5) 2010: download PDF manuals and video instructions
    Remove the top strut mount.
  37. Step 37
    How hard is it to do yourself: Springs replacement on Passat B6 Variant 1.4 TSI EcoFuel 2011 - download illustrated guide
    Release the coil spring.
  38. Step 38
    Need to know how to renew Springs on VW PASSAT 2005? This free workshop manual will help you to do it yourself
    Remove the spring.
  39. Step 39
    Changing of Springs on Passat B6 Variant 2006 won't be an issue if you follow this illustrated step-by-step guide
    Remove the shock absorber dust cap and the bump stop.
    AUTODOC recommends:
    Replacement: coil springs – VW Passat B6 3C Variant. Carefully inspect the mount, the boot, and the bump stop of the shock absorber. Replace if necessary.
  40. Step 40
    VW PASSAT 2.0 TDI Springs replacement: online guides and video tutorials
    Install the boot and a bump stop onto the shock absorber.
  41. Step 41
    Replacing Springs on Passat B6 Variant 2008 2.0 TDI by yourself
    Install the spring on the shock absorber.
  42. Step 42
    Passat Variant (3C5) 2.0 TDI 4motion 2009 Springs DIY replacement workshop manual
    Compress the spring.
  43. Step 43
    How to change Springs on VW Passat Variant (3C5) 2010 - tips and tricks
    Install the upper strut mount and the strut mount bearing.
  44. Step 44
    Step-by-step recommendations for DIY replacement Passat B6 Variant 2011 2.0 TDI 4motion Springs
    Tighten the shock strut piston rod nut. Use a drive socket #19. Use HEX No.H6. Use a torque wrench. Tighten it to 60 Nm torque.
    Replacement: coil springs – VW Passat 3C5. Professionals recommend:
    Check to make sure the spring is positioned correctly. Avoid its misalignment.
  45. Step 45
    DIY replacement of Springs on VW Passat Variant (3C5) 1.9 TDI 2005 is not an issue anymore with our step-by-step tutorial
    Treat the shock strut rod. Use copper grease.
  46. Step 46
    How to change Springs on Passat B6 Variant 2005 - free PDF and video manuals
    Decompress the spring.
  47. Step 47
    How to replace VW Passat Variant (3C5) 2.0 TDI 2006 Springs - step-by-step manuals and video guides
    Remove the assembled shock strut.
