When to replace the Brake Pads on your BMW X5
Recommended replacement interval for the part category Brake pad set : 30000 km
Important!
This replacement procedure can be used for:
BMW X5 (E53) 3.0 i, BMW X5 (E53) 4.4 i, BMW X5 (E53) 3.0 d, BMW X5 (E53) 4.4 i, BMW X5 (E53) 3.0 d, BMW X5 (E53) 3.0 d View more

The steps may slightly vary depending on the car design.

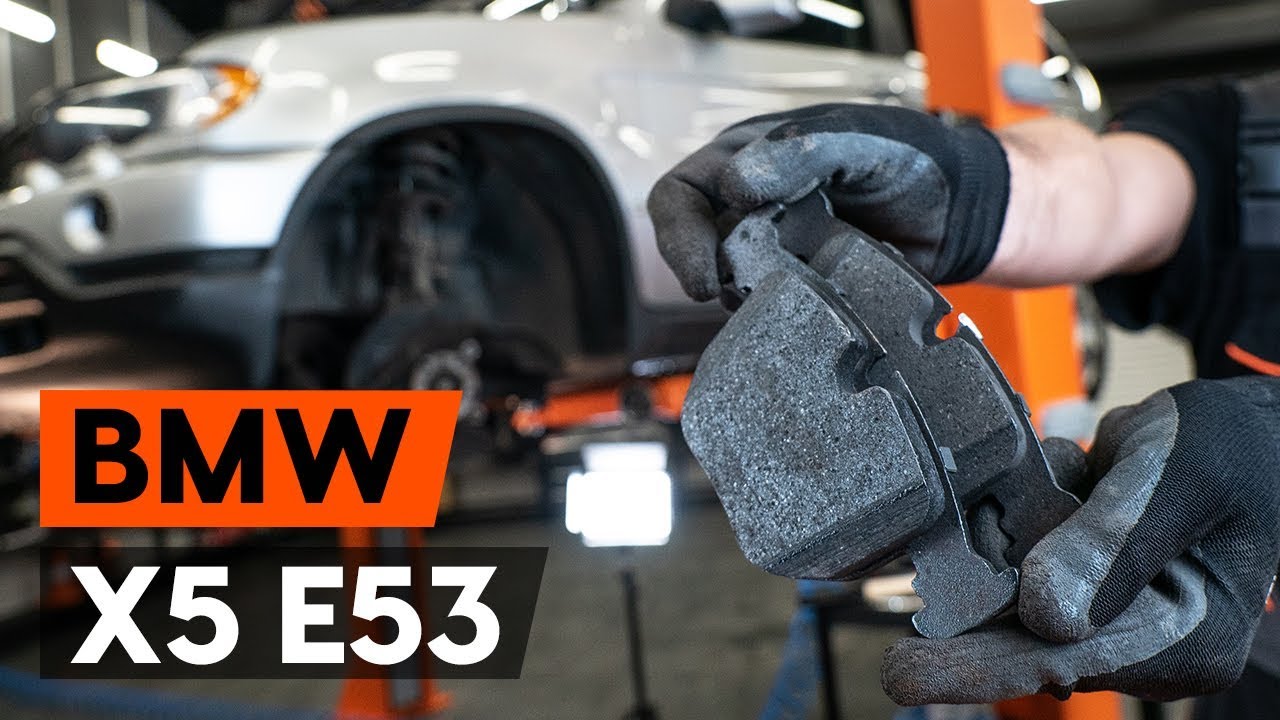

How to change front brake pads / front brake pad set on BMW X5 (E53) Crossover [AUTODOC]

video
Tools
Replacement: brake pads – BMW X5 E53. Tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Anti-squeal paste
Copper grease
HEX bit no.H7.
Wheel impact socket #19
Ratchet wrench
Torque wrench
Brake caliper wind back tool
Crow bar
Wheel chock
Replacement: brake pads – BMW X5 E53. AUTODOC recommends:
  • Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
  • The replacement procedure is identical for all brake pads on the same axle.
  • All work should be done with the engine stopped.
Replacement: brake pads – BMW X5 E53. Recommended sequence of steps:
  1. Step 1
    How to change Brake Pads on BMW X5 E53 2000 - free PDF and video manuals
    Open the bonnet.
  2. Step 2
    How to replace BMW X5 (E53) 3.0 d 2001 Brake Pads - step-by-step manuals and video guides
    Remove the rubber strip.
  3. Step 3
    BMW X5 E53 3.0 i 2002 Brake Pads replacement: free workshop manuals
    Remove the protective cover.
  4. Step 4
    Changing Brake Pads on BMW X5 (E53) 4.6 is 2003 by yourself
    Unscrew the brake fluid reservoir cap.
  5. Step 5
    How to remove BMW X5 4.8 is 2004 Brake Pads - online easy-to-follow instructions
    Secure the wheels with chocks.
  6. Step 6
    How to replace Brake Pads on BMW X5 (E53) 2005: download PDF manuals and video instructions
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  7. Step 7
    How hard is it to do yourself: Brake Pads replacement on BMW X5 E53 3.0 i 2006 - download illustrated guide
    Raise the front of the car and secure on supports.
  8. Step 8
    Need to know how to renew Brake Pads on BMW X5 2007? This free workshop manual will help you to do it yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. BMW X5 E53
  9. Step 9
    Changing of Brake Pads on BMW X5 E53 2000 won't be an issue if you follow this illustrated step-by-step guide
    Remove the wheel.
  10. Step 10
    BMW X5 4.6 is Brake Pads replacement: online guides and video tutorials
    Spread the brake pads. Use a crowbar.
  11. Step 11
    Replacing Brake Pads on BMW X5 E53 2002 3.0 d by yourself
    Remove the dust boot caps of the brake caliper guide pins. Use a crowbar.
  12. Step 12
    X5 (E53) 4.8 is 2003 Brake Pads DIY replacement workshop manual
    Unscrew the brake caliper fastening. Use HEX No.H7. Use a ratchet wrench.
  13. Step 13
    How to change Brake Pads on BMW X5 (E53) 2004 - tips and tricks
    Detach the brake caliper retaining spring. Use a crowbar.
  14. Step 14
    Step-by-step recommendations for DIY replacement BMW X5 E53 2005 4.8 is Brake Pads
    Remove the brake caliper.
    Replacement: brake pads – BMW X5 E53. Professionals recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur.
  15. Step 15
    DIY replacement of Brake Pads on BMW X5 (E53) 4.4 i 2006 is not an issue anymore with our step-by-step tutorial
    Remove the brake pads. Use a crowbar.
    Replacement: brake pads – BMW X5 E53. Tip from AUTODOC:
    Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
  16. Step 16
    How to change Brake Pads on BMW X5 E53 2000 - free PDF and video manuals
    Treat the brake caliper piston. Use a brake cleaner.
    Replacement: brake pads – BMW X5 E53. AUTODOC experts recommend:
    After applying the spray, wait a few minutes.
  17. Step 17
    How to replace BMW X5 (E53) 3.0 d 2001 Brake Pads - step-by-step manuals and video guides
    Press in the brake caliper piston. Use brake caliper wind back tool.
  18. Step 18
    BMW X5 E53 3.0 i 2002 Brake Pads replacement: free workshop manuals
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake pads – BMW X5 E53. After applying the spray, wait a few minutes.
  19. Step 19
    Changing Brake Pads on BMW X5 (E53) 4.6 is 2003 by yourself
    Treat the brake caliper bracket where it contacts the brake pads. Use anti-squeal paste.
    Replacement: brake pads – BMW X5 E53. Tip from AUTODOC experts:
    Make sure the disc surface is clean before installing the pads.
