How to carry out replacement: Brake Pads 2.0 TDI Audi A4 B8 Avant
Disclaimer
Change Audi A4 B8 Avant 2.0 TDI Brake Pads yourself – manuals and video tutorials

How to change front brake pads on AUDI A4 Avant (8K5, B8) – replacement guide

downloads: 7
Views: 143
Download your free tutorial and fix AUDI A4 Avant (8K5, B8) 2.0 TDI quattro problems yourself Download for free 1.59 MB Brake Pads for Audi A4 B8 Avant Shop now
Leave a comment Open in a new tab
When to replace the Brake Pads on your AUDI A4
Recommended replacement interval for the part category Brake pad set : 30000 km
Important!
This replacement procedure can be used for:
AUDI A4 Avant (8K5, B8) 3.0 TFSI quattro, AUDI A4 Avant (8K5, B8) 3.0 TDI quattro, AUDI A4 Avant (8K5, B8) 3.0 TDI, AUDI A4 Avant (8K5, B8) 3.2 FSI quattro, AUDI A4 Avant (8K5, B8) 3.0 TDI quattro, AUDI A4 Avant (8K5, B8) 2.7 TDI, AUDI A4 Avant (8K5, B8) 2.0 TFSI, AUDI A4 Avant (8K5, B8) 2.0 TFSI, AUDI A4 Avant (8K5, B8) 2.0 TFSI quattro, AUDI A4 Avant (8K5, B8) S4 quattro, AUDI A4 Avant (8K5, B8) 2.7 TDI, AUDI A4 Avant (8K5, B8) 3.2 FSI, AUDI A4 Avant (8K5, B8) 2.0 TFSI flexible fuel, AUDI A4 Avant (8K5, B8) 2.0 TFSI flexible fuel quattro, AUDI A4 Avant (8K5, B8) 3.0 TDI quattro, AUDI A4 Avant (8K5, B8) 2.0 TFSI, AUDI A4 Avant (8K5, B8) 2.0 TFSI quattro … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

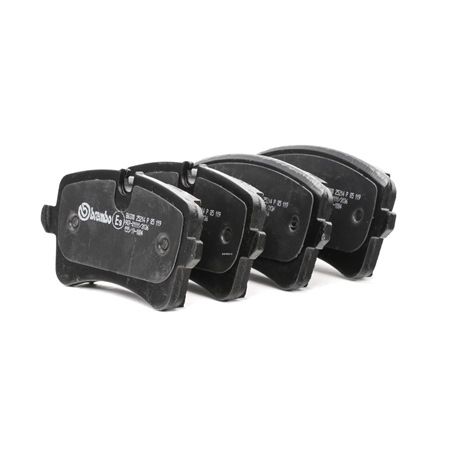

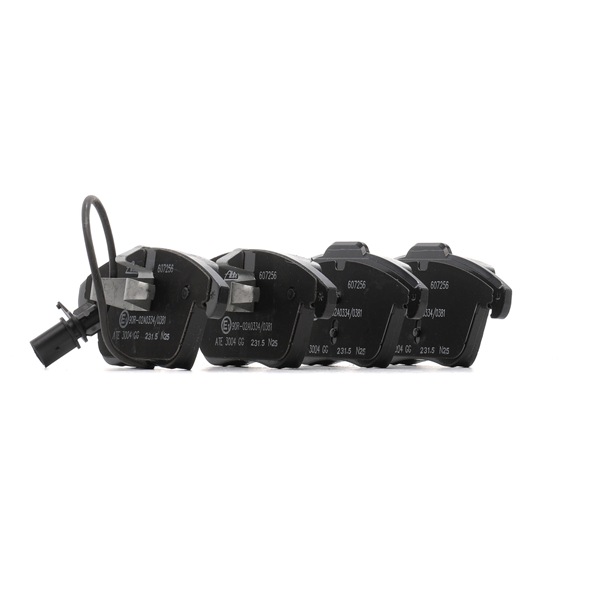

All the parts you need to replace – Brake Pads for A4 Avant (8K5, B8) and other AUDI models
Alternative products
How to change Brake pad set on Audi A4 B8 Avant 2.0 TDI – step-by-step instructions for straightforward car repair Brake pad set
Tools
Replacement: brake pads – AUDI A4 Avant (8K5, B8). List of the tools you'll need:
Wire brush
Nylon cleaning brush
WD-40 spray
Brake cleaner
Anti-squeal paste
Copper grease
Drive socket # 13
Wheel impact socket #17
Ratchet wrench
Torque wrench
Brake caliper wind back tool
Flat Screwdriver
Crow bar
Wheel chock
Buy tools
Replacement: brake pads – AUDI A4 Avant (8K5, B8). AUTODOC experts recommend:
  • Perform the replacement of brake pads in complete set for each axis. This provides effective braking.
  • The replacement procedure is identical for all brake pads on the same axle.
  • All work should be done with the engine stopped.
Replacement: brake pads – AUDI A4 Avant (8K5, B8). Use the following procedure:
  1. Step 1
    Open the bonnet. Unscrew the brake fluid reservoir cap.
    Step 2
    How to change Brake Pads on Audi A4 B8 Avant 2007 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 3
    How to replace AUDI A4 Avant (8K5, B8) 2.0 TDI 2008 Brake Pads - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 4
    Raise the front of the car and secure on supports.
    Step 5
    Audi A4 B8 Avant 3.0 TDI quattro 2009 Brake Pads replacement: free workshop manuals
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. AUDI A4 Avant (8K5, B8)
  4. Step 6
    Changing Brake Pads on AUDI A4 Avant (8K5, B8) 2.0 TDI quattro 2010 by yourself
    Remove the wheel.
  5. Step 7
    How to remove AUDI A4 2.0 TDI 2011 Brake Pads - online easy-to-follow instructions
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
  6. Step 8
    How to replace Brake Pads on AUDI A4 Avant (8K5, B8) 2012: download PDF manuals and video instructions
    Unscrew the brake caliper fastening. Use a drive socket #13. Use a ratchet wrench.
  7. Step 9
    How hard is it to do yourself: Brake Pads replacement on Audi A4 B8 Avant 1.8 TFSI 2013 - download illustrated guide
    Spread the brake pads. Use a crowbar.
  8. Step 10
    Need to know how to renew Brake Pads on AUDI A4 2014? This free workshop manual will help you to do it yourself
    Detach the brake caliper retaining spring. Use a crowbar. Use a flat screwdriver.
  9. Step 11
    Changing of Brake Pads on Audi A4 B8 Avant 2015 won't be an issue if you follow this illustrated step-by-step guide
    Remove the brake caliper.
    Replacement: brake pads – AUDI A4 Avant (8K5, B8). AUTODOC recommends:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  10. Step 12
    AUDI A4 2.0 TDI Brake Pads replacement: online guides and video tutorials
    Remove the brake pads.
    Replacement: brake pads – AUDI A4 Avant (8K5, B8). Tip:
    Measure the brake disc thickness. Upon reaching the wear limit the part must be replaced.
  11. Step 13
    Replacing Brake Pads on Audi A4 B8 Avant 2008 2.0 TDI by yourself
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake pads – AUDI A4 Avant (8K5, B8). After applying the spray, wait a few minutes.
  12. Step 14
    A4 Avant (8K5, B8) 2.0 TDI 2009 Brake Pads DIY replacement workshop manual
    Treat the brake caliper piston. Use a nylon cleaning brush. Use a brake cleaner.
    Replacement: brake pads – AUDI A4 Avant (8K5, B8). Tip from AUTODOC:
    After applying the spray, wait a few minutes.
  13. Step 15
    How to change Brake Pads on AUDI A4 Avant (8K5, B8) 2010 - tips and tricks
    Press in the brake caliper piston. Use brake caliper wind back tool.
  14. Step 16
    Step-by-step recommendations for DIY replacement Audi A4 B8 Avant 2011 2.0 TDI Brake Pads
    Treat the brake pads in the area where their surface comes into contact with the brake caliper bracket. Use anti-squeal paste.
    Replacement: brake pads – AUDI A4 Avant (8K5, B8). Tip from AUTODOC experts:
    Make sure the disc surface is clean before installing the pads.
