When to replace the Brake Calipers on your CITROËN C3
Recommended replacement interval for the part category Brake caliper : 100000 km
Important!
This replacement procedure can be used for:
CITROËN C3 I Hatchback (FC_, FN_) 1.4 i Bivalent, CITROËN C3 I Hatchback (FC_, FN_) 1.4 HDi, CITROËN C3 I Hatchback (FC_, FN_) 1.1 i, CITROËN C3 I Hatchback (FC_, FN_) 1.4 HDi … View more

The steps may slightly vary depending on the car design.

How to change front brake caliper on CITROEN C3 1 (FC, FN) [TUTORIAL AUTODOC]

video
Published on: 15/01/2020
4K views

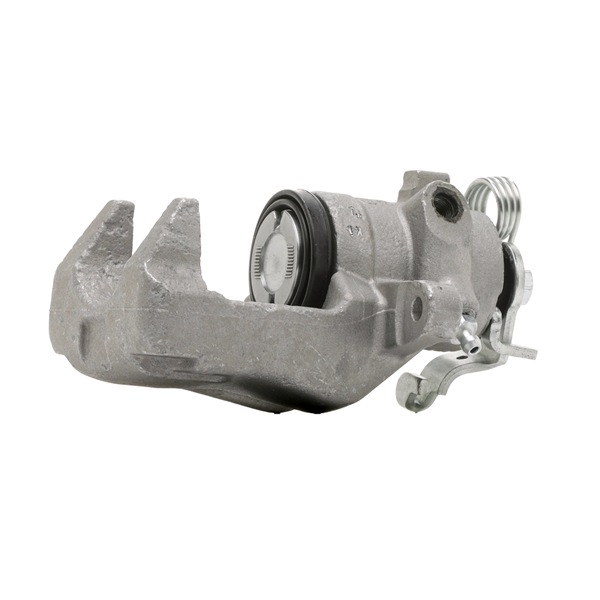

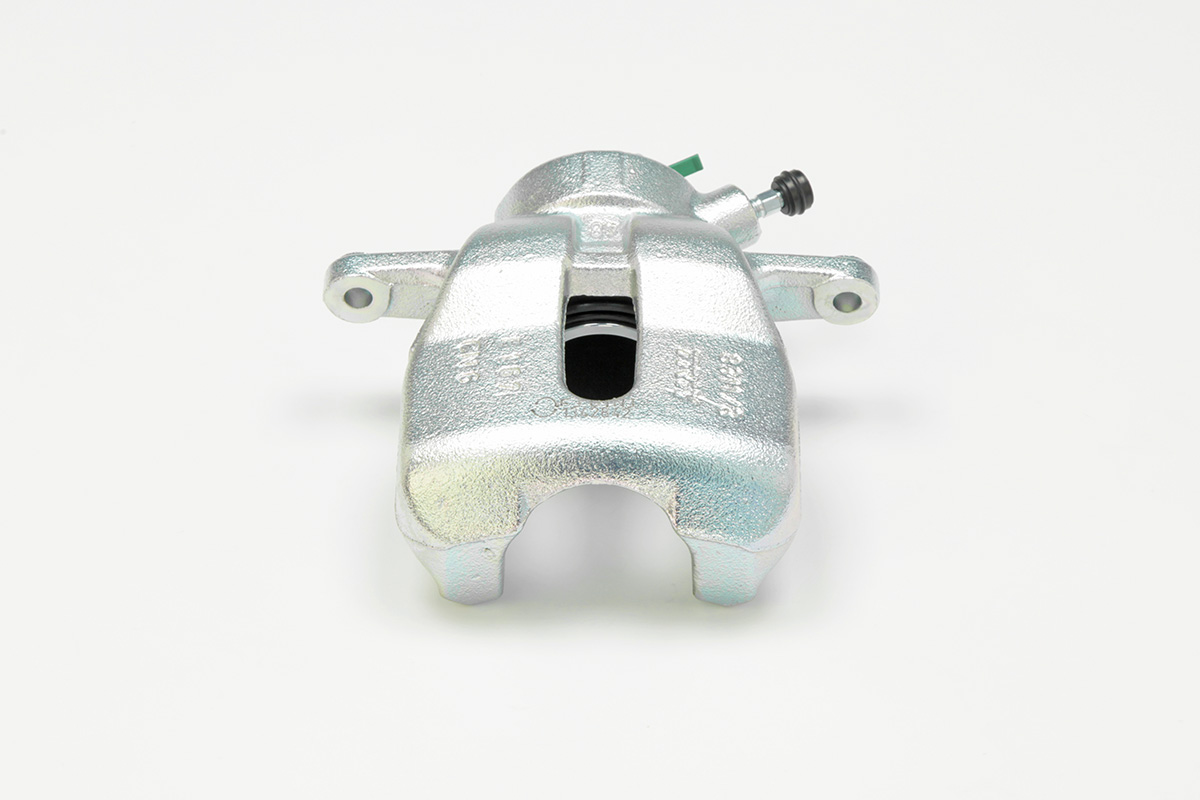

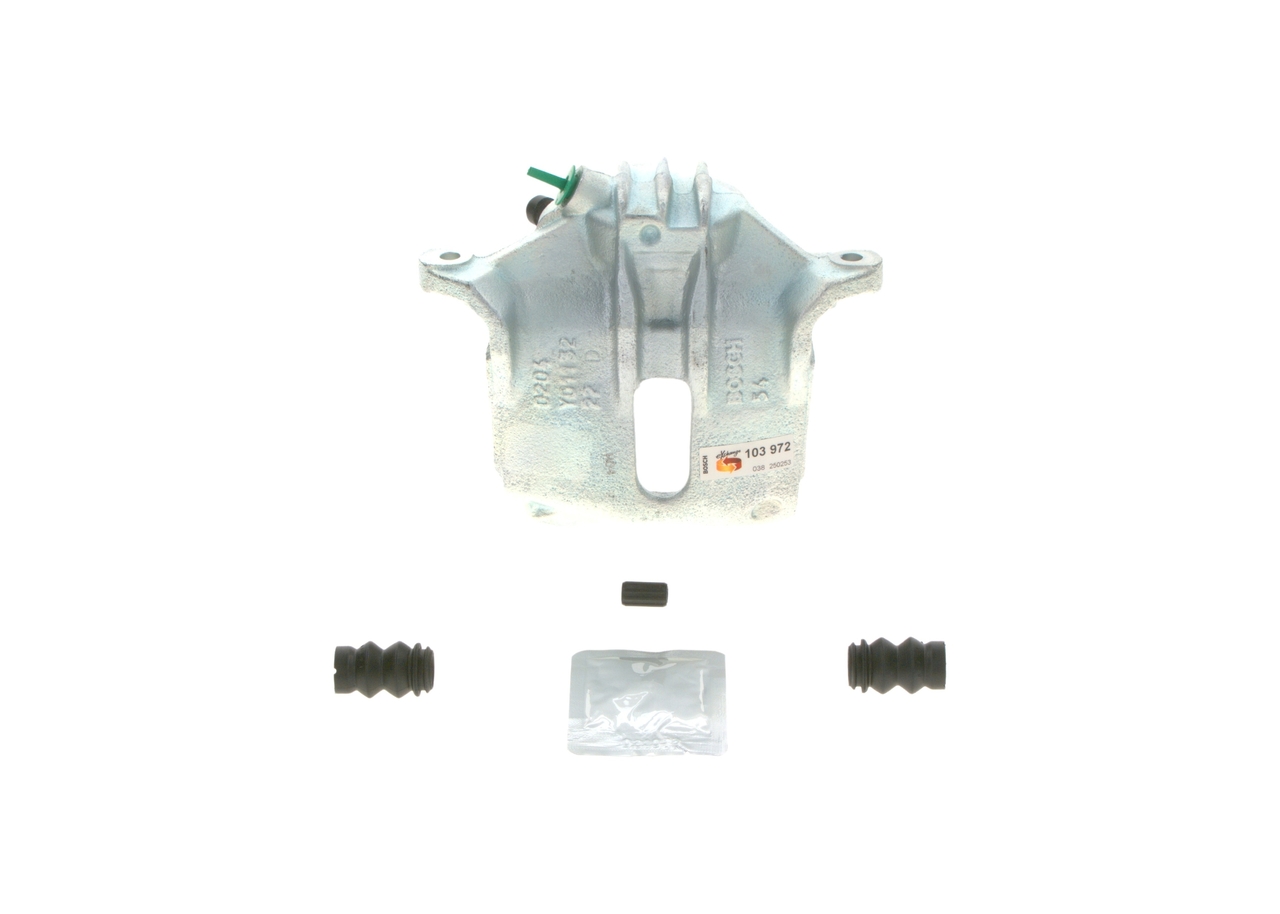

All the parts you need to replace – Brake Calipers for C3 I Hatchback (FC_, FN_) and other CITROËN models
Alternative products
How to change Brake caliper on Citroen C3 Mk1 1.4 HDi – step-by-step instructions for straightforward car repair Brake caliper
Tools
Replacement: brake caliper – Citroen C3 1. Tools you might need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #8
Combination spanner #13
Combination spanner #14
Combination spanner #15
Drive socket # 8
Wheel impact socket #17
Torque wrench
Fluid container
Brake hose clip
Brake bleeder kit
Crow bar
Wheel chock
Buy tools
Replacement: brake caliper – Citroen C3 1. AUTODOC recommends:
  • The replacement procedure is identical for the left and right brake calipers on the same axle.
  • All work should be done with the engine stopped.
Replacement: brake caliper – Citroen C3 1. Recommended sequence of steps:
  1. Step 1
    How to change Brake Calipers on Citroen C3 Mk1 2002 - free PDF and video manuals
    Open the bonnet. Unscrew the brake fluid reservoir cap.
  2. Step 2
    How to replace CITROËN C3 I Hatchback (FC_, FN_) 1.4 HDi 2003 Brake Calipers - step-by-step manuals and video guides
    Secure the wheels with chocks.
  3. Step 3
    Citroen C3 Mk1 1.4 i 2004 Brake Calipers replacement: free workshop manuals
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  4. Step 4
    Changing Brake Calipers on CITROËN C3 I Hatchback (FC_, FN_) 1.6 16V 2005 by yourself
    Raise the front of the car and secure on supports.
  5. Step 5
    How to remove CITROËN C3 1.4 16V HDi 2006 Brake Calipers - online easy-to-follow instructions
    Unscrew the wheel bolts.
    Replacement: brake caliper – Citroen C3 1. Tip:
    To avoid injury, hold up the wheel when unscrewing the bolts.
  6. Step 6
    How to replace Brake Calipers on CITROËN C3 I Hatchback (FC_, FN_) 2007: download PDF manuals and video instructions
    Remove the wheel.
  7. Step 7
    How hard is it to do yourself: Brake Calipers replacement on Citroen C3 Mk1 1.4 i Bivalent 2008 - download illustrated guide
    Put a container for gathering brake fluid beneath.
  8. Step 8
    Need to know how to renew Brake Calipers on CITROËN C3 2009? This free workshop manual will help you to do it yourself
    Clean the area where the brake hose is connected to the caliper, and the guide pins area. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake caliper – Citroen C3 1. After applying the spray, wait a few minutes.
  9. Step 9
    Changing of Brake Calipers on Citroen C3 Mk1 2010 won't be an issue if you follow this illustrated step-by-step guide
    Clamp the brake hose off using a brake hose clamp.
  10. Step 10
    CITROËN C3 1.4 HDi Brake Calipers replacement: online guides and video tutorials
    Unscrew the brake hose from the brake caliper. Use a combination spanner #14.
  11. Step 11
    Replacing Brake Calipers on Citroen C3 Mk1 2012 1.4 HDi by yourself
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
  12. Step 12
    C3 I Hatchback (FC_, FN_) 1.4 16V HDi 2013 Brake Calipers DIY replacement workshop manual
    Unscrew the brake caliper fastening. Use a combination spanner #13. Use a combination spanner #15.
  13. Step 13
    How to change Brake Calipers on CITROËN C3 I Hatchback (FC_, FN_) 2002 - tips and tricks
    Spread the brake pads. Use a crowbar.
  14. Step 14
    Step-by-step recommendations for DIY replacement Citroen C3 Mk1 2003 1.4 16V HDi Brake Calipers
    Remove the brake caliper.
    Replacement: brake caliper – Citroen C3 1. Professionals recommend:
    When replacing the brake caliper, it is recommended to check the brake hose for damages and, if necessary, to replace it with a new one. When replacing a brake caliper it is recommended to replace brake pads, check the state of the brake discs and replace them with new ones if necessary.
  15. Step 15
    DIY replacement of Brake Calipers on CITROËN C3 I Hatchback (FC_, FN_) 1.1 i 2004 is not an issue anymore with our step-by-step tutorial
    Treat the brake hose. Use a brake cleaner.
    Replacement: brake caliper – Citroen C3 1. Tip from AUTODOC experts:
    After applying the spray, wait a few minutes.
  16. Step 16
    How to change Brake Calipers on Citroen C3 Mk1 2002 - free PDF and video manuals
    Unscrew the brake hose from the brake caliper.
  17. Step 17
    How to replace CITROËN C3 I Hatchback (FC_, FN_) 1.4 HDi 2003 Brake Calipers - step-by-step manuals and video guides
    Treat the brake hose. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake caliper – Citroen C3 1. After applying the spray, wait a few minutes.
  18. Step 18
    Citroen C3 Mk1 1.4 i 2004 Brake Calipers replacement: free workshop manuals
    Install and fix the brake hose into a new caliper.
  19. Step 19
    Changing Brake Calipers on CITROËN C3 I Hatchback (FC_, FN_) 1.6 16V 2005 by yourself
    Tighten the brake hose fastener. Use a combination spanner #14.
  20. Step 20
    How to remove CITROËN C3 1.4 16V HDi 2006 Brake Calipers - online easy-to-follow instructions
    Install the brake caliper and fix it. Use a combination spanner #13. Use a combination spanner #15. Use a torque wrench. Tighten it to 30 Nm torque.
  21. Step 21
    How to replace Brake Calipers on CITROËN C3 I Hatchback (FC_, FN_) 2007: download PDF manuals and video instructions
    Tighten the fastener connecting the brake pipe to the brake caliper. Use a combination spanner #14. Use a torque wrench. Tighten it to 15 Nm torque.
