Important!
This replacement procedure can be used for:
SEAT Ibiza III Hatchback (6L) 1.2, SEAT Ibiza III Hatchback (6L) 1.4 16V, SEAT Ibiza III Hatchback (6L) 1.9 TDI, SEAT Ibiza III Hatchback (6L) 1.9 TDI, SEAT Ibiza III Hatchback (6L) 1.9 SDI, SEAT Ibiza III Hatchback (6L) 1.4 TDI, SEAT Ibiza III Hatchback (6L) 1.6, SEAT Ibiza III Hatchback (6L) 1.9 TDI Cupra R, SEAT Ibiza III Hatchback (6L) 1.4 TDI, SEAT Ibiza III Hatchback (6L) 1.4 TDI, SEAT Ibiza III Hatchback (6L) 1.2 12V, SEAT Ibiza III Hatchback (6L) 1.6 16V, SEAT Ibiza III Hatchback (6L) 2.0, SEAT Ibiza III Hatchback (6L) 1.4 16V, SEAT Ibiza III Hatchback (6L) 1.8 T Cupra R, SEAT Ibiza III Hatchback (6L) 1.8 T FR, SEAT Ibiza III Hatchback (6L) 1.2 View more

The steps may slightly vary depending on the car design.

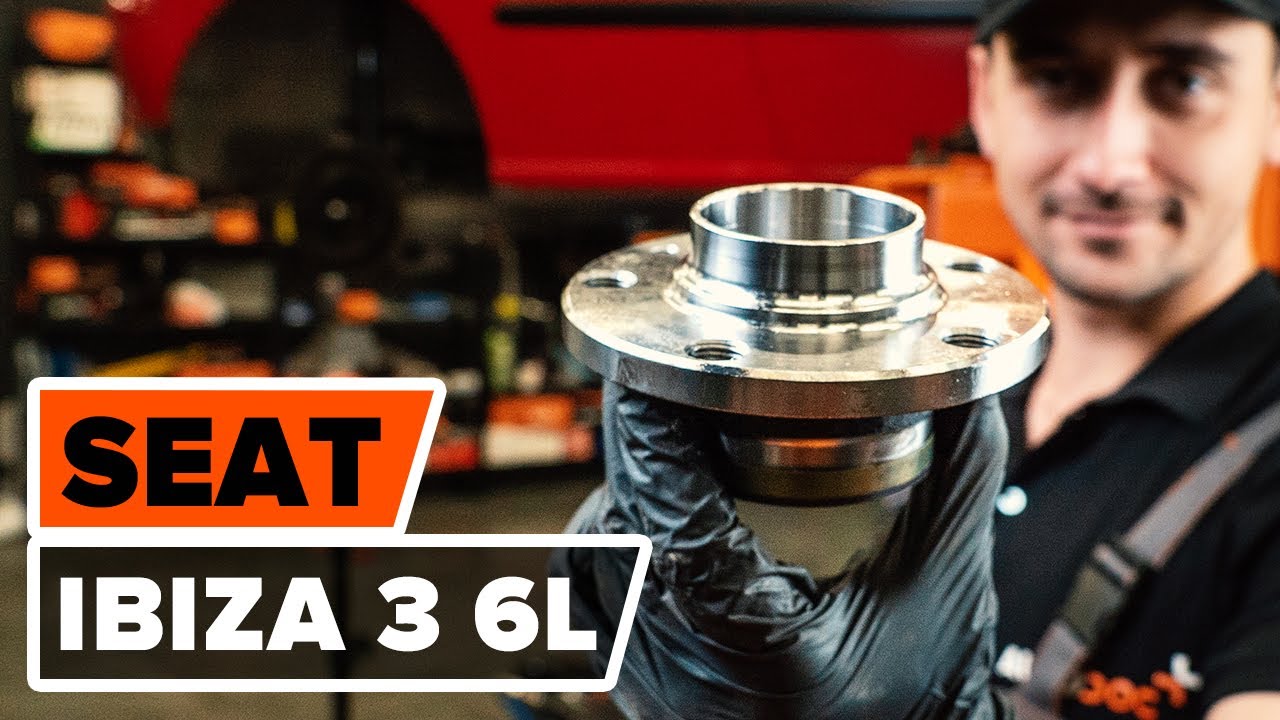

How to change rear wheel bearing on SEAT IBIZA 3 6L [TUTORIAL AUTODOC]

video
Tools
Replacement: wheel bearing – Seat Ibiza 6L1. Tools you might need:
Wire brush
WD-40 spray
All-purpose cleaning spray
Copper grease
Torque wrench
Combination spanner #10
12-point socket #30
Torx bit T30
Wheel impact socket #17
Ratchet wrench
Hammer
Tap wrench
Crow bar
Rubber mallet
Wheel chock
Replacement: wheel bearing – Seat Ibiza 6L1. AUTODOC experts recommend:
  • Do not re-use the bearing assembly of your Seat Ibiza 6L1 car.
  • The wheel hub bearing replacement procedure is identical for both wheels on the same axle.
  • All work should be done with the engine stopped.
Replacement: wheel bearing – Seat Ibiza 6L1. Recommended sequence of steps:
  1. Step 1
    How to change Wheel Bearing on Seat Ibiza 6L 2002 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace SEAT Ibiza III Hatchback (6L) 1.9 TDI 2003 Wheel Bearing - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Seat Ibiza 6L 1.4 16V 2004 Wheel Bearing replacement: free workshop manuals
    Raise the rear of the car and secure on supports.
  4. Step 4
    Changing Wheel Bearing on SEAT Ibiza III Hatchback (6L) 1.9 SDI 2005 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Seat Ibiza 6L1
  5. Step 5
    How to remove SEAT IBIZA 1.4 TDI 2006 Wheel Bearing - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Wheel Bearing on SEAT Ibiza III Hatchback (6L) 2007: download PDF manuals and video instructions
    Clean the brake drum fasteners. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Wheel Bearing replacement on Seat Ibiza 6L 1.9 TDI 2008 - download illustrated guide
    Unscrew the brake drum fastening. Use Torx T30. Use a ratchet wrench.
  8. Step 8
    Need to know how to renew Wheel Bearing on SEAT IBIZA 2009? This free workshop manual will help you to do it yourself
    Open the car door.
  9. Step 9
    Changing of Wheel Bearing on Seat Ibiza 6L 2002 won't be an issue if you follow this illustrated step-by-step guide
    Remove the parking brake lever trim cover.
  10. Step 10
    SEAT IBIZA 1.2 Wheel Bearing replacement: online guides and video tutorials
    Loosen the parking brake cable. Use a combination spanner #10.
  11. Step 11
    Replacing Wheel Bearing on Seat Ibiza 6L 2004 1.9 TDI by yourself
    Remove the brake drum.
    Replacement: wheel bearing – Seat Ibiza 6L1. Tip from AUTODOC:
    Examine the brake drum. Replace it if necessary.
  12. Step 12
    Ibiza III Hatchback (6L) 1.4 TDI 2005 Wheel Bearing DIY replacement workshop manual
    Remove the hub bearing protection cap. Use a crowbar. Use a hammer.
    AUTODOC recommends:
    Some cars are not equipped with wheel hub caps.
  13. Step 13
    How to change Wheel Bearing on SEAT Ibiza III Hatchback (6L) 2006 - tips and tricks
    Unscrew the wheel hub axle nut. Use 12-point socket No.30. Use a tap wrench.
  14. Step 14
    Step-by-step recommendations for DIY replacement Seat Ibiza 6L 2007 1.4 TDI Wheel Bearing
    Remove the hub and the bearing together, since they are a sealed unit.
  15. Step 15
    DIY replacement of Wheel Bearing on SEAT Ibiza III Hatchback (6L) 1.2 2008 is not an issue anymore with our step-by-step tutorial
    Clean the hub bearing mounting seat. Use all-purpose cleaning spray.
  16. Step 16
    How to change Wheel Bearing on Seat Ibiza 6L 2002 - free PDF and video manuals
    Install the new wheel hub with a bearing.
  17. Step 17
    How to replace SEAT Ibiza III Hatchback (6L) 1.9 TDI 2003 Wheel Bearing - step-by-step manuals and video guides
    Tighten the hub. Use 12-point socket No.30. Use a torque wrench. Tighten it to 175 nm torque.
    Replacement: wheel bearing – Seat Ibiza 6L1. Professionals recommend:
    The wheel bearing unit must not tilt on the axle pin.
  18. Step 18
    Seat Ibiza 6L 1.4 16V 2004 Wheel Bearing replacement: free workshop manuals
    Install the hub bearing protection cap. Use a rubber mallet.
