Important!

This replacement procedure can be used for:
CITROËN C1 (PM_, PN_) 1.0, CITROËN C1 II (PA_, PS_) 1.0 VTi 68

The steps may slightly vary depending on the car design.

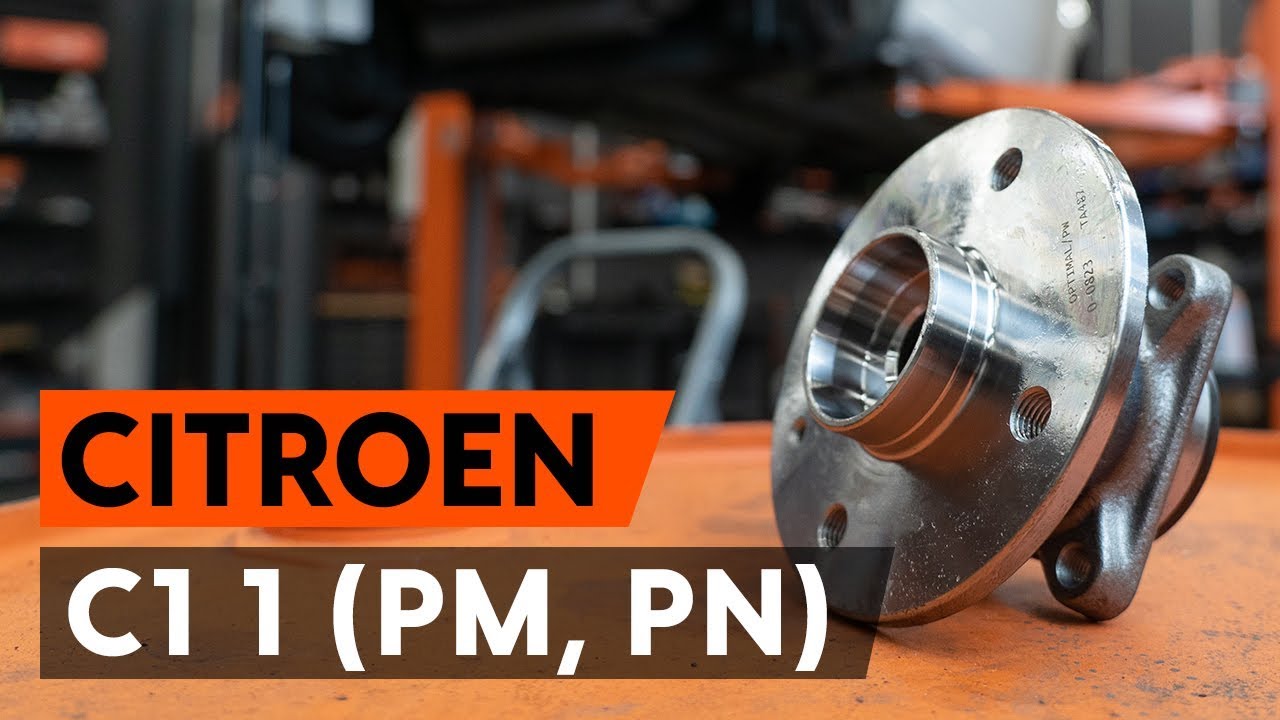

How to change rear wheel bearing / rear hub bearing on CITROEN C1 (PM, PN) [TUTORIAL AUTODOC]

Replacement: wheel bearing – Citroen C1 1 PM PN. Tools you might need:

                        Wire brush

                        WD-40 spray

                        Copper grease

                        Torx bit T30

                        Drive socket # 12

                        Wheel impact socket #17

                        Ratchet wrench

                        Torque wrench

                        Tap wrench

                        Impact screwdriver

                        Hub slide hammer puller

                        Wheel chock

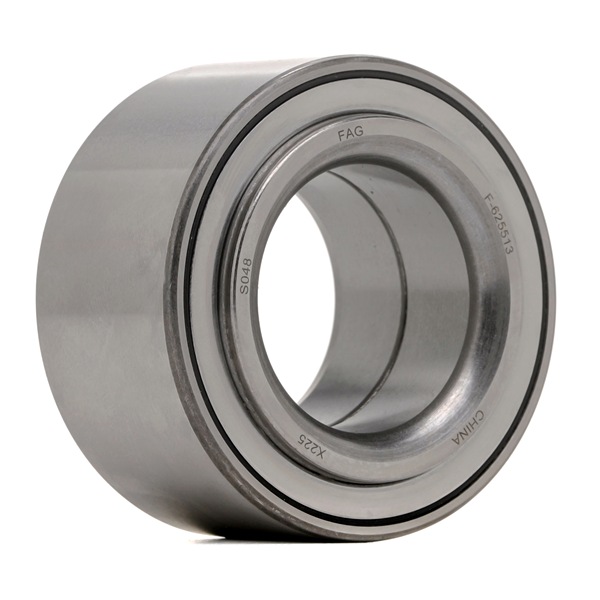

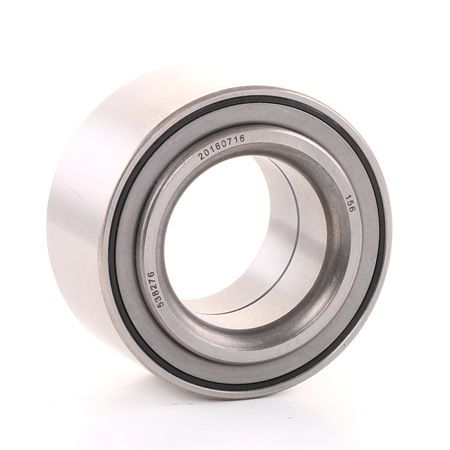

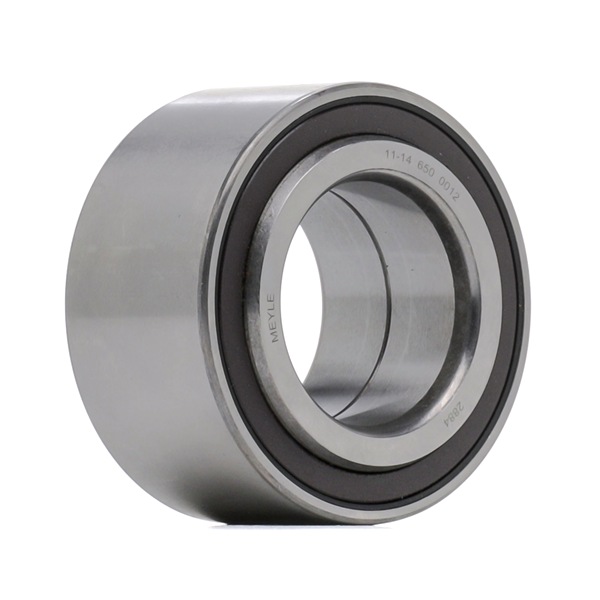

All the parts you need to replace – Wheel Bearing for C1 (PM_, PN_) and other CITROËN models

CITROËN C1 (PM_, PN_) 1.0

CITROËN C1 II (PA_, PS_) 1.0 VTi 68

CITROËN C1 (PM_, PN_) 1.0

CITROËN C1 II (PA_, PS_) 1.0 VTi 68

Replacement: wheel bearing – Citroen C1 1 PM PN. Tip from AUTODOC experts:

Do not re-use the bearing assembly of your Citroen C1 1 PM PN car.
The wheel hub bearing replacement procedure is identical for both wheels on the same axle.
All work should be done with the engine stopped.

Replacement: wheel bearing – Citroen C1 1 PM PN. Recommended sequence of steps:

Step 1

Secure the wheels with chocks.
Step 2

Loosen the wheel mounting bolts.Use wheel impact socket #17.
Step 3

Raise the rear of the car and secure on supports.
Step 4

Unscrew the wheel bolts.

AUTODOC recommends:

Important! Hold the wheel while unscrewing the fastening bolts. Citroen C1 1 PM PN
Step 5

Remove the wheel.
Step 6

Clean the brake drum.Use a wire brush.Use WD-40 spray.
Step 7

Unscrew the brake drum fastening.Use Torx T30.Use an impact screwdriver.
Step 8

Remove the brake drum.

Replacement: wheel bearing – Citroen C1 1 PM PN. AUTODOC recommends:

Examine the brake drum. Replace it if necessary.
Step 9

Clean the ABS sensor fastener.Use a wire brush.Use WD-40 spray.
Step 10

Unscrew the ABS sensor fastener.Use Torx T30.Use a ratchet wrench.
Step 11

Disconnect the ABS sensor.
Step 12

Clean the wheel hub fastener.Use a wire brush.Use WD-40 spray.
Step 13

Unscrew the hub bearing mounting. Use a drive socket #12.Use a ratchet wrench.Use a tap wrench.
Step 14

Remove the hub and the bearing together, since they are a sealed unit.Use the hub slide hammer puller.
Step 15

Clean the hub bearing mounting seat.Use a wire brush.
Step 16

Install the new wheel hub with a bearing.
Step 17

Tighten the fastener of the wheel hub bearing.Use a drive socket #12.Use a torque wrench.Tighten it to 65 nm torque.

Replacement: wheel bearing – Citroen C1 1 PM PN. Professionals recommend:

The wheel bearing unit must not tilt on the axle pin.
Step 18

Connect the ABS sensor.
Step 19

Screw in the ABS sensor fastener.Use Torx T30.Use a ratchet wrench.
Step 20

Treat the wheel hub in the area where it contacts the brake drum.Use copper grease.
Step 21

Install the brake drum and fasten it.
Step 22

Tighten the brake drum fastener.Use Torx T30.Use a torque wrench.Tighten it to 9 Nm torque.
Step 23

Clean the wheel rim mounting seat. Use a wire brush.
Step 24

Treat the surface where the wheel rim contacts the brake drum.Use copper grease.
Step 25

Treat the fasteners of the wheel hub bearing.Use copper grease.
Step 26

Install the wheel.

Replacement: wheel bearing – Citroen C1 1 PM PN. AUTODOC experts recommend:

To avoid injury, hold up the wheel when screwing in the fastening bolts.
Step 27

Screw in the wheel bolts.Use wheel impact socket #17.
Step 28

Lower the car and working in a cross order, tighten the wheel bolts.Use a torque wrench.Tighten it to 120 nm torque.
Step 29

Remove the jacks and chocks.
