When to replace the Brake Discs on your AUDI A6
Recommended replacement interval for the part category Brake disc : 50000 km
Important!
This replacement procedure can be used for:
AUDI A6 Avant (4F5, C6) 3.0 TFSI quattro, AUDI A6 Avant (4F5, C6) 2.0 TDI, AUDI A6 Avant (4F5, C6) 2.7 TDI, AUDI A6 Avant (4F5, C6) 3.0 TDI quattro, AUDI A6 Avant (4F5, C6) 3.2 FSI, AUDI A6 Avant (4F5, C6) 3.2 FSI quattro, AUDI A6 Avant (4F5, C6) 4.2 quattro, AUDI A6 Avant (4F5, C6) 2.4, AUDI A6 Avant (4F5, C6) 2.4 quattro, AUDI A6 Avant (4F5, C6) 3.0 TDI quattro, AUDI A6 Avant (4F5, C6) 2.7 TDI, AUDI A6 Avant (4F5, C6) 2.7 TDI quattro, AUDI A6 Avant (4F5, C6) 2.0 TFSI, AUDI A6 Avant (4F5, C6) 2.0 TDI, AUDI A6 Avant (4F5, C6) 2.7 TDI quattro, AUDI A6 Avant (4F5, C6) S6 quattro, AUDI A6 Avant (4F5, C6) 4.2 FSI quattro, AUDI A6 Avant (4F5, C6) 3.0 TDI quattro, AUDI A6 Avant (4F5, C6) 2.8 FSI, AUDI A6 Avant (4F5, C6) 3.0 quattro, AUDI A6 Avant (4F5, C6) 2.8 FSI quattro, AUDI A6 Avant (4F5, C6) 2.0 TDI, AUDI A6 Avant (4F5, C6) 2.0 TDI, AUDI A6 Avant (4F5, C6) 2.7 TDI, AUDI A6 Avant (4F5, C6) 2.7 TDI quattro, AUDI A6 Avant (4F5, C6) 2.8 FSI, AUDI A6 Avant (4F5, C6) 2.8 FSI, AUDI A6 Avant (4F5, C6) 2.8 FSI quattro, AUDI A6 Avant (4F5, C6) 2.8 FSI quattro, AUDI A6 Avant (4F5, C6) 3.0 TDI quattro, AUDI A6 Avant (4F5, C6) 3.0 TFSI quattro, AUDI A6 Avant (4F5, C6) 3.0, AUDI A6 Avant (4F5, C6) 2.0 TDI View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

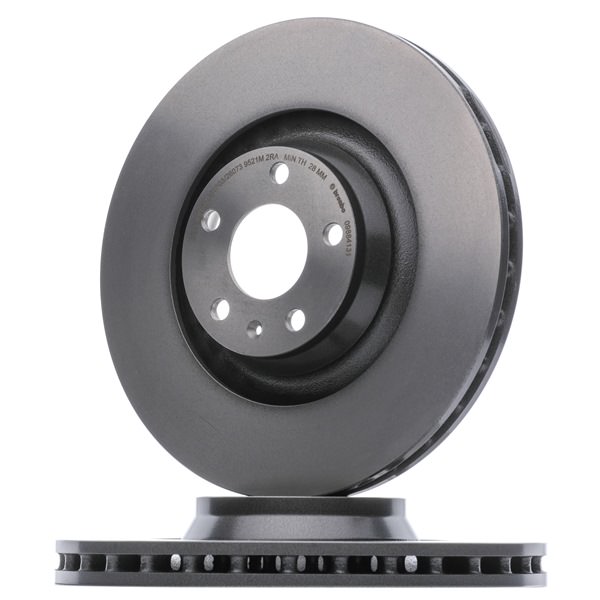

All the parts you need to replace – Brake Discs for A6 Avant (4F5, C6) and other AUDI models
Tools
Replacement: brake discs – AUDI A6 Avant (4F5, C6). Tools you need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #15
Combination spanner #17
Drive socket # 13
Drive socket # 17
Wheel impact socket #17
Brake caliper wind back tool
Ratchet wrench
Torque wrench
Phillips screwdriver
Impact screwdriver
Crow bar
Wheel chock
Replacement: brake discs – AUDI A6 Avant (4F5, C6). Tip from AUTODOC:
  • Replace the brake disks on the car AUDI A6 Avant (4F5, C6) in complete set for each axis. Regardless of the state of components. This will ensure even braking.
  • The replacement procedure is identical for both brake disks on the same axle.
  • When changing the brake discs, always replace the brake pads.
  • Please note: all work on the car – AUDI A6 Avant (4F5, C6) – should be done with the engine switched off.
Carry out replacement in the following order:
  1. Step 1
    Open the bonnet. Unscrew the brake fluid reservoir cap.
    Step 2
    How to change Brake Discs on Audi A6 C6 Avant 2005 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 3
    How to replace AUDI A6 Avant (4F5, C6) 3.0 TDI quattro 2006 Brake Discs - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 4
    Raise the rear of the car and secure on supports.
    Step 5
    Audi A6 C6 Avant 2.7 TDI 2007 Brake Discs replacement: free workshop manuals
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. AUDI A6 Avant (4F5, C6)
  4. Step 6
    Changing Brake Discs on AUDI A6 Avant (4F5, C6) 2.0 TFSI 2008 by yourself
    Remove the wheel.
  5. Step 7
    How to remove AUDI A6 2.7 TDI quattro 2009 Brake Discs - online easy-to-follow instructions
    Clean the brake caliper fasteners. Use a wire brush. Use WD-40 spray.
  6. Step 8
    How to replace Brake Discs on AUDI A6 Avant (4F5, C6) 2010: download PDF manuals and video instructions
    Unscrew the brake caliper fastening. Use a combination spanner #15. Use a drive socket #13. Use a ratchet wrench.
  7. Step 9
    How hard is it to do yourself: Brake Discs replacement on Audi A6 C6 Avant 2.7 TDI 2011 - download illustrated guide
    Remove the brake caliper. Use a crowbar.
    Replacement: brake discs – AUDI A6 Avant (4F5, C6). Professionals recommend:
    Tie the caliper to the suspension or to the body with a wire without disconnecting from the brake hose to prevent depressurization of the brake system.Make sure that the brake caliper is not hanging on the brake hose.Don't press the brake pedal after the brake caliper has been removed. As a result, the piston can fall out from the brake cylinder, and brake fluid leakage and depressurization of the system may occur. Check the brake caliper bracket, brake caliper guide pins and boots. Clean them. Replace, if necessary.
  8. Step 10
    Need to know how to renew Brake Discs on AUDI A6 2005? This free workshop manual will help you to do it yourself
    Remove the brake pads. Use a crowbar.
  9. Step 11
    Changing of Brake Discs on Audi A6 C6 Avant 2006 won't be an issue if you follow this illustrated step-by-step guide
    Clean the brake caliper bracket fasteners. Use a wire brush. Use WD-40 spray.
  10. Step 12
    AUDI A6 2.0 TFSI Brake Discs replacement: online guides and video tutorials
    Unscrew the caliper bracket fastening. Use a combination spanner #17.
  11. Step 13
    Replacing Brake Discs on Audi A6 C6 Avant 2008 3.0 TDI quattro by yourself
    Remove the caliper bracket.
  12. Step 14
    Clean the brake disc fasteners. Use a wire brush. Use WD-40 spray.
    Step 15
    A6 Avant (4F5, C6) 2.7 TDI quattro 2009 Brake Discs DIY replacement workshop manual
    Unscrew the brake disc fastening. Use a Phillips screwdriver. Use an impact screwdriver.
  13. Step 16
    How to change Brake Discs on AUDI A6 Avant (4F5, C6) 2010 - tips and tricks
    Remove the brake disc.
  14. Step 17
    Step-by-step recommendations for DIY replacement Audi A6 C6 Avant 2011 2.7 TDI quattro Brake Discs
    Clean the hub. Use a wire brush. Treat the contacting surface. Use copper grease.
  15. Step 18
    DIY replacement of Brake Discs on AUDI A6 Avant (4F5, C6) 2.0 TDI 2005 is not an issue anymore with our step-by-step tutorial
    Install the brake disc.
  16. Step 19
    How to change Brake Discs on Audi A6 C6 Avant 2005 - free PDF and video manuals
    Tighten the brake disc fastening. Use a Phillips screwdriver. Use a torque wrench. Tighten it to 5 Nm torque.
  17. Step 20
    How to replace AUDI A6 Avant (4F5, C6) 3.0 TDI quattro 2006 Brake Discs - step-by-step manuals and video guides
    Clean the brake caliper bracket from dirt and dust. Use a wire brush. Use a brake cleaner.
    AUTODOC recommends:
    Replacement: brake discs – AUDI A6 Avant (4F5, C6). After applying the spray, wait a few minutes.
