How to change rear anti roll bar links on MERCEDES-BENZ C-Class Coupe (C204) – replacement guide
MERCEDES-BENZ C-Class Coupe (C204) C 63 AMG (204.377), MERCEDES-BENZ C-Class Coupe (C204) C 63 AMG (204.377), MERCEDES-BENZ C-Class Coupe (C204) C 220 CDI (204.302), MERCEDES-BENZ C-Class Coupe (C204) C 250 CDI (204.303), MERCEDES-BENZ C-Class Coupe (C204) C 180 (204.349), MERCEDES-BENZ C-Class Coupe (C204) C 250 (204.347), MERCEDES-BENZ C-Class Coupe (C204) C 350 (204.357), MERCEDES-BENZ C-Class Coupe (C204) C 63 AMG (204.377), MERCEDES-BENZ C-Class Coupe (C204) C 63 AMG (204.377), MERCEDES-BENZ C-Class Coupe (C204) C 200 CGI (204.348), MERCEDES-BENZ C-Class Coupe (C204) C 180 (204.331), MERCEDES-BENZ C-Class Coupe (C204) C 220 CDI (204.302), MERCEDES-BENZ C-Class Coupe (C204) C 350 4-matic (204.388) … View more
The steps may slightly vary depending on the car design.
This video shows the replacement procedure of a similar car part on another vehicle

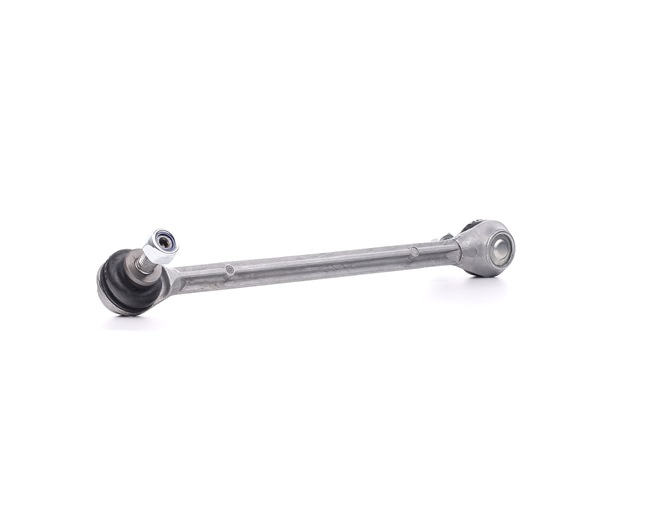

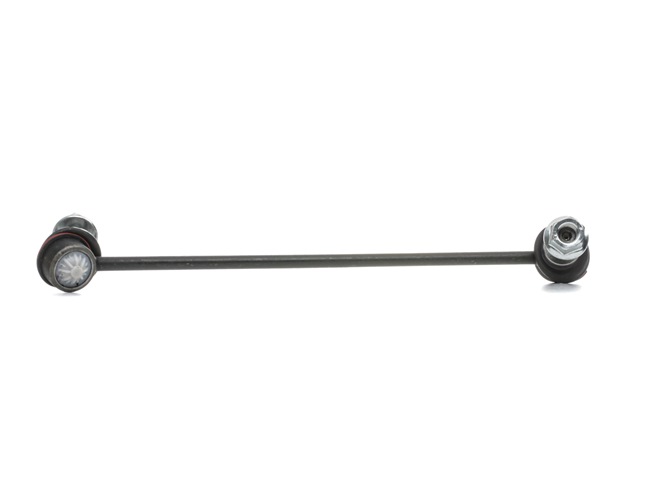

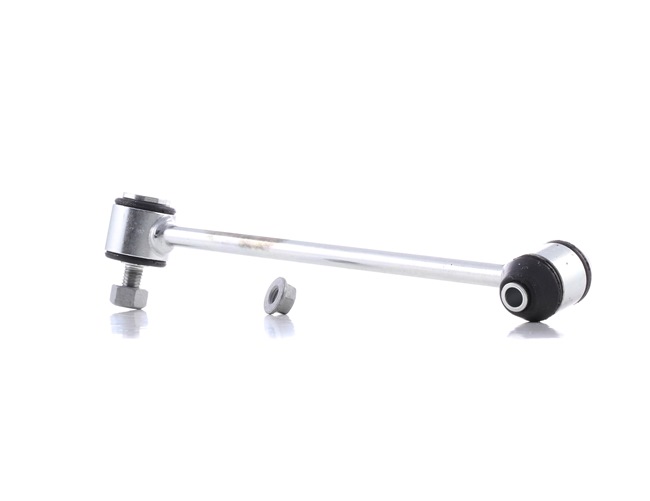

Anti-roll bar link
- Replace the stabiliser links on MERCEDES-BENZ C-CLASS Coupe (C204) in pairs.
- The replacement procedure is identical for both stabiliser links on the same axle.
- Please note: all work on the car – MERCEDES-BENZ C-CLASS Coupe (C204) – should be done with the engine switched off.
- Step 1
Secure the wheels with chocks.
Step 2
Loosen the wheel mounting bolts. Use wheel impact socket #17.
- Step 3
Raise the car.
Replacement: anti roll bar links – MERCEDES-BENZ C-CLASS Coupe (C204). AUTODOC experts recommend:If you are using a jack, make sure it rests on a flat surface without any unevenness.Be sure to additionally secure the car with jack stands.
Step 4
Unscrew the wheel bolts.
AUTODOC recommends:Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. MERCEDES-BENZ C-CLASS Coupe (C204)
- Step 5
Remove the wheel.
- Step 6
Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
- Step 7
Unscrew the fastener connecting the stabilizer link to the control arm. Use a drive socket #13. Use Torx E12. Use a ratchet wrench.
- Step 8
Remove the fastening bolt.
- Step 9
Unscrew the fastener connecting the stabilizer link to the stabilizer bar. Use a combination spanner #16. Use a combination spanner #22.
- Step 10
Remove the stabilizer rod.
AUTODOC recommends:Examine stabiliser bushes. Replace them if needed.
- Step 11
Clean the mounting seats of the stabiliser link. Use a wire brush. Use WD-40 spray.
- Step 12
Ιnstall the transverse stabilizer link.
- Step 13
Support the rear knuckle. Use a hydraulic transmission jack.
Replacement: anti roll bar links – MERCEDES-BENZ C-CLASS Coupe (C204). AUTODOC recommends:For tightening the fasteners correctly, you have to jack up the suspension components to their working position.
- Step 14
Install the fastening bolt.
