How to carry out replacement: Anti Roll Bar Links 1.6 i 16V (F19) Opel Vectra B Caravan j96 Estate
Disclaimer
Change Opel Vectra B Caravan j96 Estate 1.6 i 16V (F19) Anti Roll Bar Links yourself – manuals and video tutorials

How to change front anti roll bar links on OPEL Vectra B Saloon (J96) – replacement guide

downloads: 8
Views: 48
Download your free tutorial and fix OPEL VECTRA B (36_) 1.6 i (F19) problems yourself Download for free 1.21 MB Anti Roll Bar Links for Opel Vectra B Caravan j96 Estate Shop now
Leave a comment Open in a new tab
Important!
This replacement procedure can be used for:
OPEL VECTRA B (36_) 1.6 i (F19), OPEL VECTRA B (36_) 1.6 i 16V (F19), OPEL VECTRA B (36_) 1.8 i 16V (F19), OPEL VECTRA B (36_) 2.0 i 16V (F19), OPEL VECTRA B (36_) 2.5 i V6 (F19), OPEL VECTRA B (36_) 1.7 TD (F19), OPEL VECTRA B (36_) 2.0 DI 16V (F19), OPEL VECTRA B (36_) 2.0 DTI 16V (F19), OPEL VECTRA B (36_) i 500 2.5 (F19), OPEL VECTRA B (36_) 1.8 i 16V (F19), OPEL VECTRA B (36_) 2.2 DTI 16V (F19), OPEL VECTRA B (36_) 2.2 i 16V (F19), OPEL VECTRA B (36_) 2.6 i V6 (F19) … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

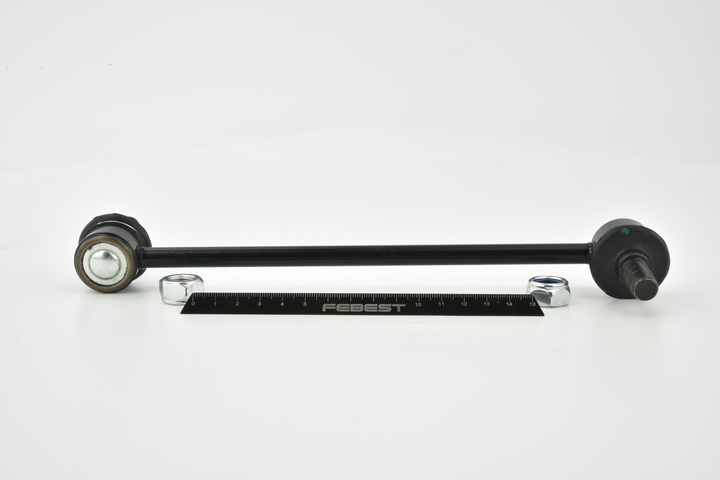

All the parts you need to replace – Anti Roll Bar Links for VECTRA B (36_) and other OPEL models
Alternative products
How to change Anti-roll bar link on Opel Vectra B Caravan j96 Estate 1.6 i 16V (F19) – step-by-step instructions for straightforward car repair Anti-roll bar link
Tools
Replacement: anti roll bar links – OPEL VECTRA B (36_). Tools you might need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Combination spanner #17
Combination spanner #18
Drive socket # 8
Drive socket # 19
Wheel impact socket #17
Ratchet wrench
Torque wrench
Wheel chock
Buy tools
AUTODOC recommends:
  • Replace the stabiliser links on OPEL VECTRA B (36_) in pairs.
  • The replacement procedure is identical for both stabiliser links on the same axle.
  • All work should be done with the engine stopped.
Replacement: anti roll bar links – OPEL VECTRA B (36_). Recommended sequence of steps:
  1. Step 1
    How to change Anti Roll Bar Links on Opel Vectra B Caravan j96 Estate 1995 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace OPEL VECTRA B (36_) 1.6 i 16V (F19) 1996 Anti Roll Bar Links - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #17.
  3. Step 3
    Raise the front of the car and secure on supports.
    Step 4
    Opel Vectra B Caravan j96 Estate 2.0 i 16V (F19) 1997 Anti Roll Bar Links replacement: free workshop manuals
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Important! Hold the wheel while unscrewing the fastening bolts. OPEL VECTRA B (36_)
  4. Step 5
    Changing Anti Roll Bar Links on OPEL VECTRA B (36_) 1.8 i 16V (F19) 1998 by yourself
    Remove the wheel.
  5. Step 6
    How to remove OPEL VECTRA 1.7 TD (F19) 1999 Anti Roll Bar Links - online easy-to-follow instructions
    Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
  6. Step 7
    How to replace Anti Roll Bar Links on OPEL VECTRA B (36_) 2000: download PDF manuals and video instructions
    Unscrew the fastener connecting the stabilizer link to the stabilizer bar. Use a combination spanner #18. Use a drive socket #8. Use a ratchet wrench.
  7. Step 8
    How hard is it to do yourself: Anti Roll Bar Links replacement on Opel Vectra B Caravan j96 Estate 2.2 DTI 16V (F19) 2001 - download illustrated guide
    Unscrew the fastener connecting the stabilizer link to the shock strut. Use a combination spanner #18. Use a drive socket #8. Use a ratchet wrench.
  8. Step 9
    Need to know how to renew Anti Roll Bar Links on OPEL VECTRA 2002? This free workshop manual will help you to do it yourself
    Remove the stabilizer rod.
    Replacement: anti roll bar links – OPEL VECTRA B (36_). Tip from AUTODOC experts:
    Examine stabiliser bushes. Replace them if needed.
  9. Step 10
    Changing of Anti Roll Bar Links on Opel Vectra B Caravan j96 Estate 1995 won't be an issue if you follow this illustrated step-by-step guide
    Clean the mounting seats of the stabiliser link. Use a wire brush. Use WD-40 spray.
  10. Step 11
    OPEL VECTRA 1.6 i 16V (F19) Anti Roll Bar Links replacement: online guides and video tutorials
    Install a new rod, tighten the fasteners.
