Important!
This replacement procedure can be used for:
CITROËN XSARA PICASSO (N68) 1.6 16V, CITROËN XSARA PICASSO (N68) 1.6, CITROËN XSARA PICASSO (N68) 1.8 16V, CITROËN XSARA PICASSO (N68) 1.6, CITROËN XSARA PICASSO (N68) 2.0 16V, CITROËN XSARA PICASSO (N68) 1.6 HDi, CITROËN XSARA PICASSO (N68) 1.6 16V, CITROËN XSARA PICASSO (N68) 1.6 HDi, CITROËN XSARA PICASSO (N68) 1.6, CITROËN XSARA PICASSO (N68) 1.6 Chrono, CITROËN XSARA PICASSO (N68) 1.8 SX, CITROËN XSARA PICASSO (N68) 2.0, CITROËN XSARA PICASSO (N68) 2.0 16V, CITROËN XSARA PICASSO (N68) 1.6 16V LPG … View more

The steps may slightly vary depending on the car design.

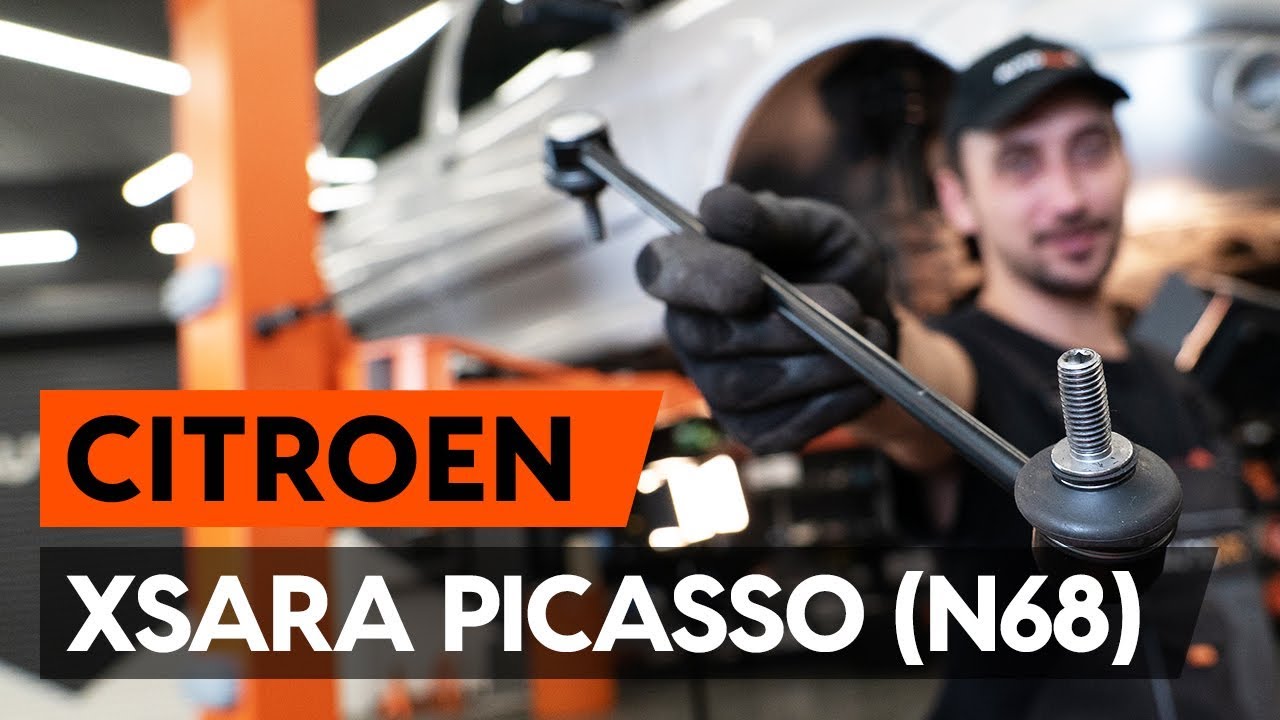

How to change front anti roll bar link on CITROEN XSARA PICASSO (N68) [TUTORIAL AUTODOC]

video
Published on: 28/01/2020
6K views
All the parts you need to replace – Anti Roll Bar Links for XSARA PICASSO (N68) and other CITROËN models
How to change Anti-roll bar link on Citroen Xsara Picasso 2.0 HDi – step-by-step instructions for straightforward car repair Anti-roll bar link
How to change Repair Kit, stabilizer suspension on Citroen Xsara Picasso 2.0 HDi – step-by-step instructions for straightforward car repair Repair Kit, stabilizer suspension
How to change Repair Kit, stabilizer coupling rod on Citroen Xsara Picasso 2.0 HDi – step-by-step instructions for straightforward car repair Repair Kit, stabilizer coupling rod
How to change Torsion Bar Linkage on Citroen Xsara Picasso 2.0 HDi – step-by-step instructions for straightforward car repair Torsion Bar Linkage
How to change Anti-roll bar link on CITROËN XSARA PICASSO (N68) 1.6 16V – tips for proper car maintenance
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.6 16V Petrol (110 hp)
Simple DIY car repair steps – Replacing Anti-roll bar link on CITROËN XSARA PICASSO (N68) 1.6
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.6 Petrol (88 hp)
Easy tricks to help you to replace Anti-roll bar link on CITROËN XSARA PICASSO (N68) 1.8 16V
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.8 16V Petrol (115 hp)
Anti-roll bar link removal & installation, incredibly easy steps for CITROËN XSARA PICASSO (N68) 1.6
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.6 Petrol (95 hp)
Changing Anti-roll bar link on CITROËN XSARA PICASSO (N68) 2.0 16V – tips for first time repair
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 2.0 16V Petrol (136 hp)
Main steps for Anti-roll bar link replacement on CITROËN XSARA PICASSO (N68) 1.6 HDi
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.6 HDi Diesel (109 hp)
How to change Anti-roll bar link on CITROËN XSARA PICASSO (N68) 1.6 16V – tips for proper car maintenance
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.6 16V Petrol (109 hp)
Simple DIY car repair steps – Replacing Anti-roll bar link on CITROËN XSARA PICASSO (N68) 1.6 HDi
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.6 HDi Diesel (90 hp)
Easy tricks to help you to replace Anti-roll bar link on CITROËN XSARA PICASSO (N68) 1.6
Anti-roll bar link for CITROËN XSARA PICASSO (N68) 1.6 Petrol (91 hp)
Tools
Replacement: anti roll bar links – Citroen Xsara Picasso. List of the tools you'll need:
Wire brush
WD-40 spray
Brake cleaner
Copper grease
Drive socket # 17
Wheel impact socket #19
Torque wrench
Wheel chock
Buy tools
AUTODOC recommends:
  • Replace the stabiliser links on Citroen Xsara Picasso in pairs.
  • The replacement procedure is identical for both stabiliser links on the same axle.
  • All work should be done with the engine stopped.
Replacement: anti roll bar links – Citroen Xsara Picasso. Take the following steps:
  1. Step 1
    How to change Anti Roll Bar Links on Citroen Xsara Picasso 1999 - free PDF and video manuals
    Secure the wheels with chocks.
  2. Step 2
    How to replace CITROËN XSARA PICASSO (N68) 2.0 HDi 2000 Anti Roll Bar Links - step-by-step manuals and video guides
    Loosen the wheel mounting bolts. Use wheel impact socket #19.
  3. Step 3
    Citroen Xsara Picasso 1.6 HDi 2001 Anti Roll Bar Links replacement: free workshop manuals
    Raise the front of the car and secure on supports.
  4. Step 4
    Changing Anti Roll Bar Links on CITROËN XSARA PICASSO (N68) 1.6 2002 by yourself
    Unscrew the wheel bolts.
    AUTODOC recommends:
    Warning! To avoid injury, hold the wheel while unscrewing the fastening bolts. Citroen Xsara Picasso
  5. Step 5
    How to remove CITROËN XSARA 1.6 16V 2003 Anti Roll Bar Links - online easy-to-follow instructions
    Remove the wheel.
  6. Step 6
    How to replace Anti Roll Bar Links on CITROËN XSARA PICASSO (N68) 2004: download PDF manuals and video instructions
    Clean the stabiliser link fasteners. Use a wire brush. Use WD-40 spray.
  7. Step 7
    How hard is it to do yourself: Anti Roll Bar Links replacement on Citroen Xsara Picasso 2.0 HDi 2005 - download illustrated guide
    Unscrew the fastener connecting the stabilizer link to the stabilizer bar. Use a drive socket #17.
  8. Step 8
    Need to know how to renew Anti Roll Bar Links on CITROËN XSARA 2006? This free workshop manual will help you to do it yourself
    Unscrew the fastener connecting the stabilizer link to the shock strut. Use a drive socket #17.
  9. Step 9
    Changing of Anti Roll Bar Links on Citroen Xsara Picasso 2007 won't be an issue if you follow this illustrated step-by-step guide
    Remove the stabilizer rod.
    Replacement: anti roll bar links – Citroen Xsara Picasso. Tip from AUTODOC:
    Examine stabiliser bushes. Replace them if needed.
  10. Step 10
    CITROËN XSARA 1.8 16V Anti Roll Bar Links replacement: online guides and video tutorials
    Clean the mounting seats of the stabiliser link. Use a wire brush. Use WD-40 spray.
  11. Step 11
    Replacing Anti Roll Bar Links on Citroen Xsara Picasso 2009 2.0 HDi by yourself
    Install a new rod, tighten the fasteners.
