Recommended replacement interval for the part category Oil filter : 12 month / 15000 km

Important!

This replacement procedure can be used for:
OPEL Astra G CC (T98) 1.2 16V (F08, F48), OPEL Astra G CC (T98) 1.4 (F08, F48) … View more

The steps may slightly vary depending on the car design.

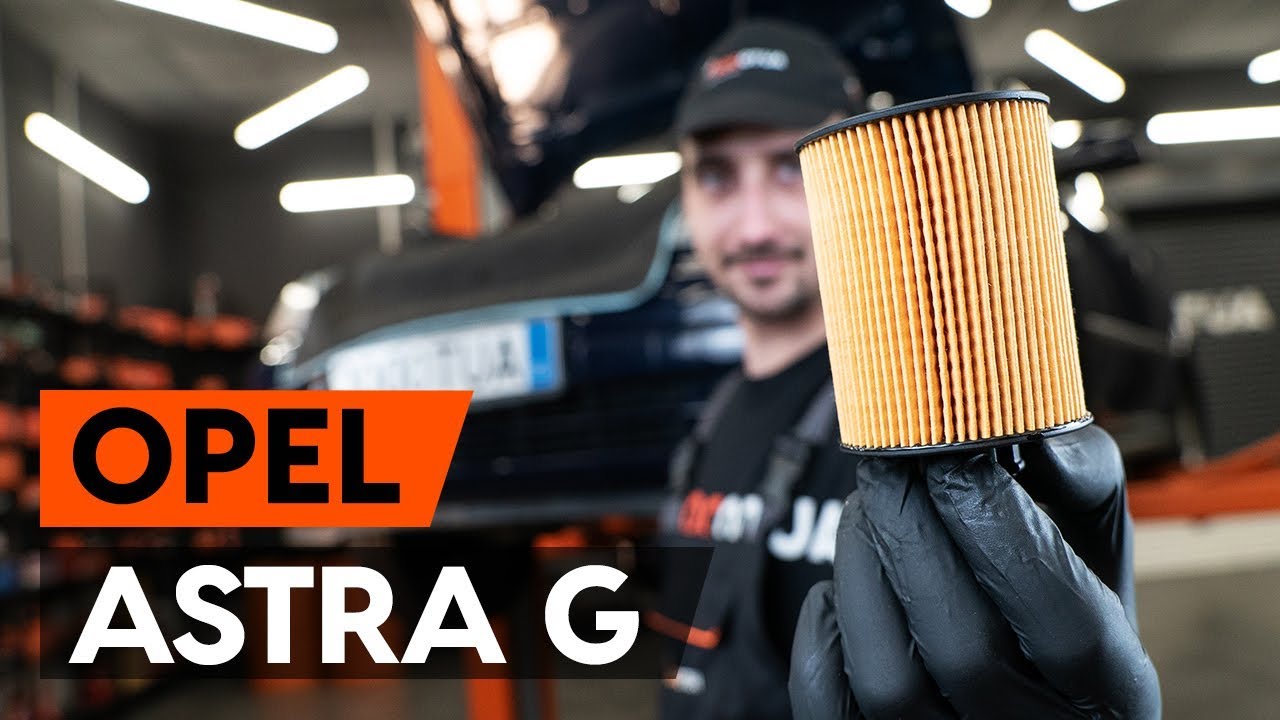

How to change oil filter and engine oil on OPEL ASTRA-G CC 1 (F48_,F08_) [TUTORIAL AUTODOC]

All the parts you need to replace – Oil Filter for Astra G CC (T98) and other OPEL models

Oil filter

Oil filter for Astra G CC (T98) Petrol (65 hp)

Simple DIY car repair steps – Replacing Oil filter on Astra G CC (T98)

Oil filter for Astra G CC (T98) Petrol (90 hp)

Replacement: engine oil and filter – Opel Astra G F48. List of the tools you'll need:

                        Torx bit T45

                        Drive socket # 12

                        Drive socket # 32

                        Ratchet wrench

                        Torque wrench

                        Flat screwdriver

                        Oil drain pan

                        Funnel

                        Microfibre towel

                        Fender cover

Buy tools

Replacement: engine oil and filter – Opel Astra G F48. Tip from AUTODOC experts:

Replace the oil filter every time when changing motor oil.
Wear gloves to prevent contact with hot liquid.
All work should be done with the engine stopped.

Replacement: engine oil and filter – Opel Astra G F48. Take the following steps:

Step 1

Open the hood.
Step 2

Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
Step 3

Unscrew the oil filler plug.
Step 4

Pull down the coolant pipe.
Step 5

Clean the oil filter housing cap.
Step 6

Unscrew the filter housing cap together with the old filter element. Use a drive socket #32. Use a ratchet wrench.
Step 7

Prepare a container for the old oil filter.
Step 8

Put the old filter cartridge in the container.
Step 9

Cover the oil filter housing with a microfibre towel to prevent dirt and foreign objects from getting into the system.
Step 10

Undo the fasteners of the oil pan lower cover.
Step 11

Remove the oil pan cover. Use a drive socket #12. Use a ratchet wrench.
Step 12

Lift the car using a jack or place it over an inspection pit.

Replacement: engine oil and filter – Opel Astra G F48. Tip from AUTODOC:
The vehicle must be on even keel, and if it is at an angle, the drain plug must be at the lowest point.
Step 13

Put a waste oil container with at least 3.5 l capacity under the drainage hole.
Step 14

Unscrew the drain plug. Use Torx T45. Use a ratchet wrench.
Step 15

Drain the used oil.

Replacement: engine oil and filter – Opel Astra G F48. Professionals recommend:
Caution! The oil may be hot.
Step 16

Detach the oil filter from the filter cover.
Step 17

Remove the oil filter cover O-ring. Use a flat screwdriver.
Step 18

Install the new oil filter to the mounting seat on the filter cover.

Please note!
Make sure to install the filter correctly. Don't mix up the sides of the part.Wait until the oil has completely drained from the drainage hole.
Step 19

Install a new O-ring to its mounting seat on the filter cover.
Step 20

Lubricate the rubber seal of the new filter with a little amount of fresh oil.
Step 21

Clean the area of the oil pan drainage hole.
Step 22

Screw in the new drainage plug and tighten it. Use Torx T45. Use a torque wrench. Tighten it to 20 Nm torque.
Step 23

Reinstall the oil pan lower cover.
Step 24

Tighten the fasteners of the oil pan lower cover. Use a drive socket #12. Use a ratchet wrench.
Step 25

Lower the car.

Step 26

Remove the microfibre towel from the oil filter housing.
Step 27

Screw the new filter into its place.
Step 28

Screw the cap. Use a drive socket #32. Use a torque wrench. Tighten it to 15 Nm torque.
Step 29

Remove the oil filler cap.
Step 30

Insert the funnel.
Step 31

Pour oil into the engine through the filler. Required amount of oil: 3.5 l.

Replacement: engine oil and filter – Opel Astra G F48. Tip from AUTODOC experts:
Use the oil recommended by the manufacturer.
Step 32

Check the oil level using the dipstick. Top up oil if necessary.

Please note!
The oil level should be between the Min and Max marks.
Step 33

Tighten the oil filler cap.
Step 34

Run the engine for a few minutes. After the oil pressure warning light goes out, stop the engine.
Step 35

Check the oil level 5 minutes after the stop of the engine operation using a dipstick and add oil if necessary.

Please note!
The oil level should be between the Min and Max marks.Make sure that the oil filler cap is properly tightened.Check the threaded plug of the drainage hole and the oil filter seal for tightness. If necessary, carefully tighten them up.
Step 36

Install the engine cover and secure it. Make sure you hear a click indicating that it is locked in place.
Step 37

Return the coolant pipe to its initial position.
Step 38

Remove the fender protection cover.
Step 39

Close the hood.

Replacement: engine oil and filter – Opel Astra G F48. Tip:
Note that oil pressure warning light, which indicates insufficient pressure in the lubrication system, may be on for a longer time than usual. After a few seconds, the oil will fill all the channels, and the light will go out. To protect the environment from pollution, be sure to dispose of the used filters at special collection points.
