When to replace the Poly V-Belt on your PEUGEOT BOXER
Recommended replacement interval for the part category Serpentine belt : 2 year / 15000 km
Important!
This replacement procedure can be used for:
PEUGEOT BOXER Box (230L) 2.5 D, PEUGEOT BOXER Box (230L) 2.5 TD, PEUGEOT BOXER Box (230L) 2.5 TDI, PEUGEOT BOXER Box (230L) 2.5 D 4x4 … View more

The steps may slightly vary depending on the car design.

This video shows the replacement procedure of a similar car part on another vehicle

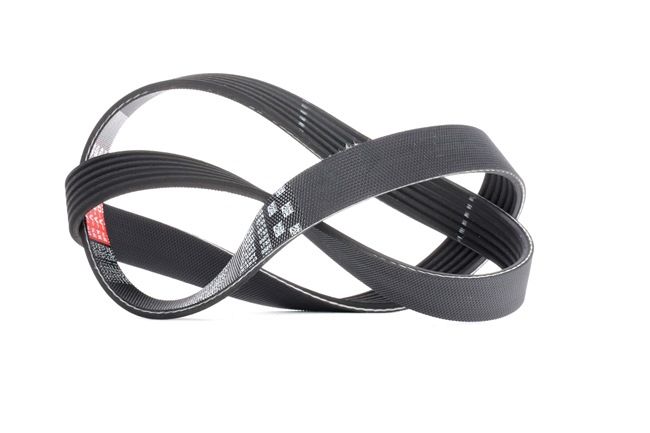

All the parts you need to replace – Poly V-Belt for BOXER Box (230L) and other PEUGEOT models
How to change Serpentine belt on Peugeot Boxer 230 Van 2.5 D – step-by-step instructions for straightforward car repair Serpentine belt
How to change Serpentine belt on Boxer Van (230) – tips for proper car maintenance
Serpentine belt for Boxer Van (230) Diesel (86 hp)
Simple DIY car repair steps – Replacing Serpentine belt on Boxer Van (230)
Serpentine belt for Boxer Van (230) Diesel (103 hp)
Easy tricks to help you to replace Serpentine belt on Boxer Van (230)
Serpentine belt for Boxer Van (230) Diesel (107 hp)
Serpentine belt removal & installation, incredibly easy steps for Boxer Van (230)
Serpentine belt for Boxer Van (230) Diesel (86 hp)
Tools
Replacement: serpentine belt – PEUGEOT BOXER Box (230L). List of the tools you'll need:
Square oil drain plug socket No.3/8”
Fender cover
Buy tools
Replacement: serpentine belt – PEUGEOT BOXER Box (230L). AUTODOC recommends:
  • All work should be done with the engine stopped.
Replacement: serpentine belt – PEUGEOT BOXER Box (230L). Recommended sequence of steps:
  1. Step 1
    Open the hood.
    Step 2
    Use a fender protection cover to prevent damaging paintwork and plastic parts of the car.
    Step 3
    Lift the car using a jack or place it over an inspection pit.
    Step 4
    How to change Poly V-Belt on Peugeot Boxer 230 Van 1994 - free PDF and video manuals
    Pull aside the V-ribbed belt tensioner pulley. Use square oil drain plug socket No.3/8”
  2. Step 5
    How to replace PEUGEOT BOXER Box (230L) 2.5 D 1995 Poly V-Belt - step-by-step manuals and video guides
    Remove the V-ribbed belt. Return the tensioner pulley to its initial position.
    Replacement: serpentine belt – PEUGEOT BOXER Box (230L). AUTODOC experts recommend:
    Check the condition of the tensioner pulley and idler pulley. Replace them if necessary.
  3. Step 6
    Peugeot Boxer 230 Van 2.5 D 4x4 1996 Poly V-Belt replacement: free workshop manuals
    Install the V-ribbed belt.
    Replacement: serpentine belt – PEUGEOT BOXER Box (230L). Tip:
    Make sure that the V-ribbed belt fits all pulleys snugly.
  4. Step 7
    Changing Poly V-Belt on PEUGEOT BOXER Box (230L) 2.8 HDI 1997 by yourself
    Pull aside the V-ribbed belt tensioner pulley. Use square oil drain plug socket No.3/8”
